[ORACLE] 19c Grid Silent Mode 설치 | gridSetup response file + ASM DISKGROUP 생성 본문
[ORACLE] 19c Grid Silent Mode 설치 | gridSetup response file + ASM DISKGROUP 생성
DBCAMI 2023. 4. 26. 08:18| OS / ORACLE ENVIRONMENT | |
| EDITION | EE |
| RAC | RAC 2 NODE |
| VERSION | Oracle Database19c |
| SERVER | Linux 7.9 (5.4.17-2102.201.3.el7uek.x86_64) |
| GI_HOME | /u01/app/19c/grid |
| ORACLE_SID | rac1, rac2 |
| ORACLE_BASE | /u01/app/oracle |
| ORACLE_HOME | /u01/app/oracle/product/19.0.0/dbhome_1 |
| oraInventory | /u01/app/oraInventory |
1. media file 준비 및 GI_HOME 경로에 압축해제
- /media/engine 경로에 19.3.0.0.0 grid_home 압축파일을 준비해둔다.
- grid 계정으로 접속
압축 해제
[+ASM1|grid:/media]> cd /media/engine/
[+ASM1|grid:/media/engine]> ls -al
total 5809468
drwxr-xr-x. 2 grid oinstall 80 Apr 25 13:09 .
drwxr-xr-x. 5 grid oinstall 44 Apr 25 13:08 ..
-rw-r--r--. 1 grid oinstall 3059705302 Apr 25 13:11 LINUX.X64_193000_db_home.zip
-rw-r--r--. 1 grid oinstall 2889184573 Apr 25 13:11 LINUX.X64_193000_grid_home.zip
[+ASM1|grid:/media/engine]> unzip LINUX.X64_193000_grid_home.zip -d $GI_HOME
2. 사전작업
- gridSetup 전 cvuqdisk package 설치 - root
cd $GI_HOME/cv/rpm
rpm -ivh cvuqdisk-*.rpm
scp cvuqdisk-*.rpm rac2:/tmp
ssh root@rac2
cd /tmp
rpm -ivh cvuqdisk-*.rpm
exit[rac1|root:/media/engine]> cd $GI_HOME/cv/rpm
[rac1|root:/u01/app/19c/grid/cv/rpm]> rpm -ivh cvuqdisk-*.rpm
Preparing... ################################# [100%]
package cvuqdisk-1.0.10-1.x86_64 is already installed
[rac1|root:/u01/app/19c/grid/cv/rpm]> scp cvuqdisk-*.rpm rac2:/tmp
root@rac2's password:
cvuqdisk-1.0.10-1.rpm 100% 11KB 6.3MB/s 00:00
[rac1|root:/u01/app/19c/grid/cv/rpm]> ssh root@rac2
root@rac2's password:
Permission denied, please try again.
root@rac2's password:
Last failed login: Tue Apr 25 15:37:41 KST 2023 from rac1 on ssh:notty
There was 1 failed login attempt since the last successful login.
Last login: Tue Apr 25 14:31:10 2023 from rac1
[rac2|root:/root]> cd /tmp
[rac2|root:/tmp]> rpm -ivh cvuqdisk-*.rpm
Preparing... ################################# [100%]
package cvuqdisk-1.0.10-1.x86_64 is already installed
[rac2|root:/tmp]> exit
logout
Connection to rac2 closed.
- 노드간 비밀번호 없는 SSH 접속 설정 - grid
cd $GI_HOME/oui/prov/resources/scripts
./sshUserSetup.sh -user oracle -hosts "rac1 rac2" -noPromptPassphrase -advanced
[+ASM1|grid:/media/engine]> cd $GI_HOME/oui/prov/resources/scripts
[+ASM1|grid:/u01/app/19c/grid/oui/prov/resources/scripts]> ./sshUserSetup.sh -user oracle -hosts "rac1 rac2" -noPromptPassphrase -advanced
The output of this script is also logged into /tmp/sshUserSetup_2023-04-25-15-41-42.log
Hosts are rac1 rac2
user is oracle
Platform:- Linux
Checking if the remote hosts are reachable
PING rac1 (10.0.5.101) 56(84) bytes of data.
64 bytes from rac1 (10.0.5.101): icmp_seq=1 ttl=64 time=0.018 ms
64 bytes from rac1 (10.0.5.101): icmp_seq=2 ttl=64 time=0.049 ms
64 bytes from rac1 (10.0.5.101): icmp_seq=3 ttl=64 time=0.035 ms
64 bytes from rac1 (10.0.5.101): icmp_seq=4 ttl=64 time=0.043 ms
64 bytes from rac1 (10.0.5.101): icmp_seq=5 ttl=64 time=0.045 ms
--- rac1 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4078ms
rtt min/avg/max/mdev = 0.018/0.038/0.049/0.011 ms
PING rac2 (10.0.5.102) 56(84) bytes of data.
64 bytes from rac2 (10.0.5.102): icmp_seq=1 ttl=64 time=0.655 ms
64 bytes from rac2 (10.0.5.102): icmp_seq=2 ttl=64 time=0.427 ms
64 bytes from rac2 (10.0.5.102): icmp_seq=3 ttl=64 time=0.535 ms
64 bytes from rac2 (10.0.5.102): icmp_seq=4 ttl=64 time=0.921 ms
64 bytes from rac2 (10.0.5.102): icmp_seq=5 ttl=64 time=0.561 ms
--- rac2 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4092ms
rtt min/avg/max/mdev = 0.427/0.619/0.921/0.170 ms
Remote host reachability check succeeded.
The following hosts are reachable: rac1 rac2.
The following hosts are not reachable: .
All hosts are reachable. Proceeding further...
firsthost rac1
numhosts 2
The script will setup SSH connectivity from the host rac1 to all
the remote hosts. After the script is executed, the user can use SSH to run
commands on the remote hosts or copy files between this host rac1
and the remote hosts without being prompted for passwords or confirmations.
NOTE 1:
As part of the setup procedure, this script will use ssh and scp to copy
files between the local host and the remote hosts. Since the script does not
store passwords, you may be prompted for the passwords during the execution of
the script whenever ssh or scp is invoked.
NOTE 2:
AS PER SSH REQUIREMENTS, THIS SCRIPT WILL SECURE THE USER HOME DIRECTORY
AND THE .ssh DIRECTORY BY REVOKING GROUP AND WORLD WRITE PRIVILEGES TO THESE
directories.
Do you want to continue and let the script make the above mentioned changes (yes/no)?
yes
The user chose yes
User chose to skip passphrase related questions.
Creating .ssh directory on local host, if not present already
Creating authorized_keys file on local host
Changing permissions on authorized_keys to 644 on local host
Creating known_hosts file on local host
Changing permissions on known_hosts to 644 on local host
Creating config file on local host
If a config file exists already at /home/grid/.ssh/config, it would be backed up to /home/grid/.ssh/config.backup.
Creating .ssh directory and setting permissions on remote host rac1
THE SCRIPT WOULD ALSO BE REVOKING WRITE PERMISSIONS FOR group AND others ON THE HOME DIRECTORY FOR oracle. THIS IS AN SSH REQUIREMENT.
The script would create ~oracle/.ssh/config file on remote host rac1. If a config file exists already at ~oracle/.ssh/config, it would be backed up to ~oracle/.ssh/config.backup.
The user may be prompted for a password here since the script would be running SSH on host rac1.
Warning: Permanently added 'rac1,10.0.5.101' (ECDSA) to the list of known hosts.
oracle@rac1's password:
Done with creating .ssh directory and setting permissions on remote host rac1.
Creating .ssh directory and setting permissions on remote host rac2
THE SCRIPT WOULD ALSO BE REVOKING WRITE PERMISSIONS FOR group AND others ON THE HOME DIRECTORY FOR oracle. THIS IS AN SSH REQUIREMENT.
The script would create ~oracle/.ssh/config file on remote host rac2. If a config file exists already at ~oracle/.ssh/config, it would be backed up to ~oracle/.ssh/config.backup.
The user may be prompted for a password here since the script would be running SSH on host rac2.
Warning: Permanently added 'rac2,10.0.5.102' (ECDSA) to the list of known hosts.
oracle@rac2's password:
Done with creating .ssh directory and setting permissions on remote host rac2.
Copying local host public key to the remote host rac1
The user may be prompted for a password or passphrase here since the script would be using SCP for host rac1.
oracle@rac1's password:
Done copying local host public key to the remote host rac1
Copying local host public key to the remote host rac2
The user may be prompted for a password or passphrase here since the script would be using SCP for host rac2.
oracle@rac2's password:
Done copying local host public key to the remote host rac2
Creating keys on remote host rac1 if they do not exist already. This is required to setup SSH on host rac1.
Creating keys on remote host rac2 if they do not exist already. This is required to setup SSH on host rac2.
Updating authorized_keys file on remote host rac1
Updating known_hosts file on remote host rac1
Updating authorized_keys file on remote host rac2
Updating known_hosts file on remote host rac2
SSH setup is complete.
------------------------------------------------------------------------
Verifying SSH setup
===================
The script will now run the date command on the remote nodes using ssh
to verify if ssh is setup correctly. IF THE SETUP IS CORRECTLY SETUP,
THERE SHOULD BE NO OUTPUT OTHER THAN THE DATE AND SSH SHOULD NOT ASK FOR
PASSWORDS. If you see any output other than date or are prompted for the
password, ssh is not setup correctly and you will need to resolve the
issue and set up ssh again.
The possible causes for failure could be:
1. The server settings in /etc/ssh/sshd_config file do not allow ssh
for user oracle.
2. The server may have disabled public key based authentication.
3. The client public key on the server may be outdated.
4. ~oracle or ~oracle/.ssh on the remote host may not be owned by oracle.
5. User may not have passed -shared option for shared remote users or
may be passing the -shared option for non-shared remote users.
6. If there is output in addition to the date, but no password is asked,
it may be a security alert shown as part of company policy. Append the
additional text to the <OMS HOME>/sysman/prov/resources/ignoreMessages.txt file.
------------------------------------------------------------------------
--rac1:--
Running /usr/bin/ssh -x -l oracle rac1 date to verify SSH connectivity has been setup from local host to rac1.
IF YOU SEE ANY OTHER OUTPUT BESIDES THE OUTPUT OF THE DATE COMMAND OR IF YOU ARE PROMPTED FOR A PASSWORD HERE, IT MEANS SSH SETUP HAS NOT BEEN SUCCESSFUL. Please note that being prompted for a passphrase may be OK but being prompted for a password is ERROR.
Tue Apr 25 15:42:04 KST 2023
------------------------------------------------------------------------
--rac2:--
Running /usr/bin/ssh -x -l oracle rac2 date to verify SSH connectivity has been setup from local host to rac2.
IF YOU SEE ANY OTHER OUTPUT BESIDES THE OUTPUT OF THE DATE COMMAND OR IF YOU ARE PROMPTED FOR A PASSWORD HERE, IT MEANS SSH SETUP HAS NOT BEEN SUCCESSFUL. Please note that being prompted for a passphrase may be OK but being prompted for a password is ERROR.
Tue Apr 25 15:42:04 KST 2023
------------------------------------------------------------------------
------------------------------------------------------------------------
Verifying SSH connectivity has been setup from rac1 to rac1
IF YOU SEE ANY OTHER OUTPUT BESIDES THE OUTPUT OF THE DATE COMMAND OR IF YOU ARE PROMPTED FOR A PASSWORD HERE, IT MEANS SSH SETUP HAS NOT BEEN SUCCESSFUL.
Tue Apr 25 15:42:04 KST 2023
------------------------------------------------------------------------
------------------------------------------------------------------------
Verifying SSH connectivity has been setup from rac1 to rac2
IF YOU SEE ANY OTHER OUTPUT BESIDES THE OUTPUT OF THE DATE COMMAND OR IF YOU ARE PROMPTED FOR A PASSWORD HERE, IT MEANS SSH SETUP HAS NOT BEEN SUCCESSFUL.
Tue Apr 25 15:42:05 KST 2023
------------------------------------------------------------------------
-Verification from complete-
SSH verification complete.
- 사전 클러스터 환경 검증 - grid
cd $GI_HOME
./runcluvfy.sh stage -pre crsinst -n rac1,rac2 -osdba dba -orainv oinstall -fixup -method root -networks enp0s3/enp0s8 -verbose[rac1|root:/root]> cd $GI_HOME
[rac1|root:/u01/app/19c/grid]> ./runcluvfy.sh stage -pre crsinst -n rac1,rac2 -osdba dba -orainv oinstall -fixup -method root -networks enp0s3/enp0s8 -verbose
ERROR: You must not be logged in as root to run this tool.
[rac1|root:/u01/app/19c/grid]> asm
Last login: Tue Apr 25 15:40:19 KST 2023 on pts/0
[+ASM1|grid:/home/grid]> oh
[+ASM1|grid:/u01/app/19c/grid]> ./runcluvfy.sh stage -pre crsinst -n rac1,rac2 -osdba dba -orainv oinstall -fixup -method root -networks enp0s3/enp0s8 -verbose
Enter "ROOT" password:
Verifying Physical Memory ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 7.767GB (8144292.0KB) 8GB (8388608.0KB) passed
rac1 7.767GB (8144292.0KB) 8GB (8388608.0KB) passed
Verifying Physical Memory ...PASSED
Verifying Available Physical Memory ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 7.0484GB (7390784.0KB) 50MB (51200.0KB) passed
rac1 7.166GB (7514112.0KB) 50MB (51200.0KB) passed
Verifying Available Physical Memory ...PASSED
Verifying Swap Size ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 8GB (8388604.0KB) 7.767GB (8144292.0KB) passed
rac1 8GB (8388604.0KB) 7.767GB (8144292.0KB) passed
Verifying Swap Size ...PASSED
Verifying Free Space: rac2:/usr,rac2:/var,rac2:/etc,rac2:/sbin,rac2:/tmp ...
Path Node Name Mount point Available Required Status
---------------- ------------ ------------ ------------ ------------ ------------
/usr rac2 / 88.583GB 25MB passed
/var rac2 / 88.583GB 5MB passed
/etc rac2 / 88.583GB 25MB passed
/sbin rac2 / 88.583GB 10MB passed
/tmp rac2 / 88.583GB 1GB passed
Verifying Free Space: rac2:/usr,rac2:/var,rac2:/etc,rac2:/sbin,rac2:/tmp ...PASSED
Verifying Free Space: rac1:/usr,rac1:/var,rac1:/etc,rac1:/sbin,rac1:/tmp ...
Path Node Name Mount point Available Required Status
---------------- ------------ ------------ ------------ ------------ ------------
/usr rac1 / 76.5322GB 25MB passed
/var rac1 / 76.5322GB 5MB passed
/etc rac1 / 76.5322GB 25MB passed
/sbin rac1 / 76.5322GB 10MB passed
/tmp rac1 / 76.5322GB 1GB passed
Verifying Free Space: rac1:/usr,rac1:/var,rac1:/etc,rac1:/sbin,rac1:/tmp ...PASSED
Verifying User Existence: grid ...
Node Name Status Comment
------------ ------------------------ ------------------------
rac2 passed exists(54322)
rac1 passed exists(54322)
Verifying Users With Same UID: 54322 ...PASSED
Verifying User Existence: grid ...PASSED
Verifying Group Existence: asmadmin ...
Node Name Status Comment
------------ ------------------------ ------------------------
rac2 passed exists
rac1 passed exists
Verifying Group Existence: asmadmin ...PASSED
Verifying Group Existence: dba ...
Node Name Status Comment
------------ ------------------------ ------------------------
rac2 passed exists
rac1 passed exists
Verifying Group Existence: dba ...PASSED
Verifying Group Existence: oinstall ...
Node Name Status Comment
------------ ------------------------ ------------------------
rac2 passed exists
rac1 passed exists
Verifying Group Existence: oinstall ...PASSED
Verifying Group Membership: dba ...
Node Name User Exists Group Exists User in Group Status
---------------- ------------ ------------ ------------ ----------------
rac2 yes yes yes passed
rac1 yes yes yes passed
Verifying Group Membership: dba ...PASSED
Verifying Group Membership: asmadmin ...
Node Name User Exists Group Exists User in Group Status
---------------- ------------ ------------ ------------ ----------------
rac2 yes yes yes passed
rac1 yes yes yes passed
Verifying Group Membership: asmadmin ...PASSED
Verifying Group Membership: oinstall(Primary) ...
Node Name User Exists Group Exists User in Group Primary Status
---------------- ------------ ------------ ------------ ------------ ------------
rac2 yes yes yes yes passed
rac1 yes yes yes yes passed
Verifying Group Membership: oinstall(Primary) ...PASSED
Verifying Run Level ...
Node Name run level Required Status
------------ ------------------------ ------------------------ ----------
rac2 5 3,5 passed
rac1 5 3,5 passed
Verifying Run Level ...PASSED
Verifying Hard Limit: maximum open file descriptors ...
Node Name Type Available Required Status
---------------- ------------ ------------ ------------ ----------------
rac2 hard 4096 65536 failed
rac1 hard 65536 65536 passed
Verifying Hard Limit: maximum open file descriptors ...FAILED (PRVG-0446)
Verifying Soft Limit: maximum open file descriptors ...
Node Name Type Available Required Status
---------------- ------------ ------------ ------------ ----------------
rac2 soft 1024 1024 passed
rac1 soft 1024 1024 passed
Verifying Soft Limit: maximum open file descriptors ...PASSED
Verifying Hard Limit: maximum user processes ...
Node Name Type Available Required Status
---------------- ------------ ------------ ------------ ----------------
rac2 hard 31661 16384 passed
rac1 hard 31661 16384 passed
Verifying Hard Limit: maximum user processes ...PASSED
Verifying Soft Limit: maximum user processes ...
Node Name Type Available Required Status
---------------- ------------ ------------ ------------ ----------------
rac2 soft 4096 2047 passed
rac1 soft 4096 2047 passed
Verifying Soft Limit: maximum user processes ...PASSED
Verifying Soft Limit: maximum stack size ...
Node Name Type Available Required Status
---------------- ------------ ------------ ------------ ----------------
rac2 soft 8192 10240 failed
rac1 soft 10240 10240 passed
Verifying Soft Limit: maximum stack size ...FAILED (PRVG-0449)
Verifying Architecture ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 x86_64 x86_64 passed
rac1 x86_64 x86_64 passed
Verifying Architecture ...PASSED
Verifying OS Kernel Version ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 5.4.17-2102.201.3.el7uek.x86_64 4.1.12 passed
rac1 5.4.17-2102.201.3.el7uek.x86_64 4.1.12 passed
Verifying OS Kernel Version ...PASSED
Verifying OS Kernel Parameter: semmsl ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 250 250 250 passed
rac2 250 250 250 passed
Verifying OS Kernel Parameter: semmsl ...PASSED
Verifying OS Kernel Parameter: semmns ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 32000 32000 32000 passed
rac2 32000 32000 32000 passed
Verifying OS Kernel Parameter: semmns ...PASSED
Verifying OS Kernel Parameter: semopm ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 100 100 100 passed
rac2 100 100 100 passed
Verifying OS Kernel Parameter: semopm ...PASSED
Verifying OS Kernel Parameter: semmni ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 128 128 128 passed
rac2 128 128 128 passed
Verifying OS Kernel Parameter: semmni ...PASSED
Verifying OS Kernel Parameter: shmmax ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 4398046511104 4398046511104 4169877504 passed
rac2 4398046511104 4398046511104 4169877504 passed
Verifying OS Kernel Parameter: shmmax ...PASSED
Verifying OS Kernel Parameter: shmmni ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 4096 4096 4096 passed
rac2 4096 4096 4096 passed
Verifying OS Kernel Parameter: shmmni ...PASSED
Verifying OS Kernel Parameter: shmall ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 1073741824 1073741824 1073741824 passed
rac2 1073741824 1073741824 1073741824 passed
Verifying OS Kernel Parameter: shmall ...PASSED
Verifying OS Kernel Parameter: file-max ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 6815744 6815744 6815744 passed
rac2 6815744 6815744 6815744 passed
Verifying OS Kernel Parameter: file-max ...PASSED
Verifying OS Kernel Parameter: ip_local_port_range ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 between 9000 & 65500 between 9000 & 65500 between 9000 & 65535 passed
rac2 between 9000 & 65500 between 9000 & 65500 between 9000 & 65535 passed
Verifying OS Kernel Parameter: ip_local_port_range ...PASSED
Verifying OS Kernel Parameter: rmem_default ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 262144 262144 262144 passed
rac2 262144 262144 262144 passed
Verifying OS Kernel Parameter: rmem_default ...PASSED
Verifying OS Kernel Parameter: rmem_max ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 4194304 4194304 4194304 passed
rac2 4194304 4194304 4194304 passed
Verifying OS Kernel Parameter: rmem_max ...PASSED
Verifying OS Kernel Parameter: wmem_default ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 262144 262144 262144 passed
rac2 262144 262144 262144 passed
Verifying OS Kernel Parameter: wmem_default ...PASSED
Verifying OS Kernel Parameter: wmem_max ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 1048576 1048576 1048576 passed
rac2 1048576 1048576 1048576 passed
Verifying OS Kernel Parameter: wmem_max ...PASSED
Verifying OS Kernel Parameter: aio-max-nr ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 1048576 1048576 1048576 passed
rac2 1048576 1048576 1048576 passed
Verifying OS Kernel Parameter: aio-max-nr ...PASSED
Verifying OS Kernel Parameter: panic_on_oops ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rac1 1 1 1 passed
rac2 1 1 1 passed
Verifying OS Kernel Parameter: panic_on_oops ...PASSED
Verifying Package: kmod-20-21 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 kmod(x86_64)-20-28.0.3.el7 kmod(x86_64)-20-21 passed
rac1 kmod(x86_64)-20-28.0.3.el7 kmod(x86_64)-20-21 passed
Verifying Package: kmod-20-21 (x86_64) ...PASSED
Verifying Package: kmod-libs-20-21 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 kmod-libs(x86_64)-20-28.0.3.el7 kmod-libs(x86_64)-20-21 passed
rac1 kmod-libs(x86_64)-20-28.0.3.el7 kmod-libs(x86_64)-20-21 passed
Verifying Package: kmod-libs-20-21 (x86_64) ...PASSED
Verifying Package: binutils-2.23.52.0.1 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 binutils-2.27-44.base.0.1.el7 binutils-2.23.52.0.1 passed
rac1 binutils-2.27-44.base.0.1.el7 binutils-2.23.52.0.1 passed
Verifying Package: binutils-2.23.52.0.1 ...PASSED
Verifying Package: compat-libcap1-1.10 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 compat-libcap1-1.10-7.el7 compat-libcap1-1.10 passed
rac1 compat-libcap1-1.10-7.el7 compat-libcap1-1.10 passed
Verifying Package: compat-libcap1-1.10 ...PASSED
Verifying Package: libgcc-4.8.2 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 libgcc(x86_64)-4.8.5-44.0.3.el7 libgcc(x86_64)-4.8.2 passed
rac1 libgcc(x86_64)-4.8.5-44.0.3.el7 libgcc(x86_64)-4.8.2 passed
Verifying Package: libgcc-4.8.2 (x86_64) ...PASSED
Verifying Package: libstdc++-4.8.2 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 libstdc++(x86_64)-4.8.5-44.0.3.el7 libstdc++(x86_64)-4.8.2 passed
rac1 libstdc++(x86_64)-4.8.5-44.0.3.el7 libstdc++(x86_64)-4.8.2 passed
Verifying Package: libstdc++-4.8.2 (x86_64) ...PASSED
Verifying Package: libstdc++-devel-4.8.2 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 libstdc++-devel(x86_64)-4.8.5-44.0.3.el7 libstdc++-devel(x86_64)-4.8.2 passed
rac1 libstdc++-devel(x86_64)-4.8.5-44.0.3.el7 libstdc++-devel(x86_64)-4.8.2 passed
Verifying Package: libstdc++-devel-4.8.2 (x86_64) ...PASSED
Verifying Package: sysstat-10.1.5 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 sysstat-10.1.5-19.el7 sysstat-10.1.5 passed
rac1 sysstat-10.1.5-19.el7 sysstat-10.1.5 passed
Verifying Package: sysstat-10.1.5 ...PASSED
Verifying Package: ksh ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 ksh ksh passed
rac1 ksh ksh passed
Verifying Package: ksh ...PASSED
Verifying Package: make-3.82 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 make-3.82-24.el7 make-3.82 passed
rac1 make-3.82-24.el7 make-3.82 passed
Verifying Package: make-3.82 ...PASSED
Verifying Package: glibc-2.17 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 glibc(x86_64)-2.17-317.0.1.el7 glibc(x86_64)-2.17 passed
rac1 glibc(x86_64)-2.17-317.0.1.el7 glibc(x86_64)-2.17 passed
Verifying Package: glibc-2.17 (x86_64) ...PASSED
Verifying Package: glibc-devel-2.17 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 glibc-devel(x86_64)-2.17-317.0.1.el7 glibc-devel(x86_64)-2.17 passed
rac1 glibc-devel(x86_64)-2.17-317.0.1.el7 glibc-devel(x86_64)-2.17 passed
Verifying Package: glibc-devel-2.17 (x86_64) ...PASSED
Verifying Package: libaio-0.3.109 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 libaio(x86_64)-0.3.109-13.el7 libaio(x86_64)-0.3.109 passed
rac1 libaio(x86_64)-0.3.109-13.el7 libaio(x86_64)-0.3.109 passed
Verifying Package: libaio-0.3.109 (x86_64) ...PASSED
Verifying Package: libaio-devel-0.3.109 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 libaio-devel(x86_64)-0.3.109-13.el7 libaio-devel(x86_64)-0.3.109 passed
rac1 libaio-devel(x86_64)-0.3.109-13.el7 libaio-devel(x86_64)-0.3.109 passed
Verifying Package: libaio-devel-0.3.109 (x86_64) ...PASSED
Verifying Package: nfs-utils-1.2.3-15 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 nfs-utils-1.3.0-0.68.0.1.el7 nfs-utils-1.2.3-15 passed
rac1 nfs-utils-1.3.0-0.68.0.1.el7 nfs-utils-1.2.3-15 passed
Verifying Package: nfs-utils-1.2.3-15 ...PASSED
Verifying Package: smartmontools-6.2-4 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 smartmontools-7.0-2.el7 smartmontools-6.2-4 passed
rac1 smartmontools-7.0-2.el7 smartmontools-6.2-4 passed
Verifying Package: smartmontools-6.2-4 ...PASSED
Verifying Package: net-tools-2.0-0.17 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 net-tools-2.0-0.25.20131004git.el7 net-tools-2.0-0.17 passed
rac1 net-tools-2.0-0.25.20131004git.el7 net-tools-2.0-0.17 passed
Verifying Package: net-tools-2.0-0.17 ...PASSED
Verifying Port Availability for component "Oracle Notification Service (ONS)" ...
Node Name Port Number Protocol Available Status
---------------- ------------ ------------ ------------ ----------------
rac2 6200 TCP yes successful
rac1 6200 TCP yes successful
rac2 6100 TCP yes successful
rac1 6100 TCP yes successful
Verifying Port Availability for component "Oracle Notification Service (ONS)" ...PASSED
Verifying Port Availability for component "Oracle Cluster Synchronization Services (CSSD)" ...
Node Name Port Number Protocol Available Status
---------------- ------------ ------------ ------------ ----------------
rac2 42424 TCP yes successful
rac1 42424 TCP yes successful
Verifying Port Availability for component "Oracle Cluster Synchronization Services (CSSD)" ...PASSED
Verifying Users With Same UID: 0 ...PASSED
Verifying Current Group ID ...PASSED
Verifying Root user consistency ...
Node Name Status
------------------------------------ ------------------------
rac2 passed
rac1 passed
Verifying Root user consistency ...PASSED
Verifying Package: cvuqdisk-1.0.10-1 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rac2 cvuqdisk-1.0.10-1 cvuqdisk-1.0.10-1 passed
rac1 cvuqdisk-1.0.10-1 cvuqdisk-1.0.10-1 passed
Verifying Package: cvuqdisk-1.0.10-1 ...PASSED
Verifying Host name ...PASSED
Verifying Node Connectivity ...
Verifying Hosts File ...
Node Name Status
------------------------------------ ------------------------
rac1 passed
rac2 passed
Verifying Hosts File ...PASSED
Interface information for node "rac1"
Name IP Address Subnet Gateway Def. Gateway HW Address MTU
------ --------------- --------------- --------------- --------------- ----------------- ------
enp0s3 10.0.5.101 10.0.5.0 0.0.0.0 10.0.5.1 08:00:27:6C:79:12 1500
enp0s8 10.0.1.101 10.0.1.0 0.0.0.0 10.0.5.1 08:00:27:78:11:43 1500
Interface information for node "rac2"
Name IP Address Subnet Gateway Def. Gateway HW Address MTU
------ --------------- --------------- --------------- --------------- ----------------- ------
enp0s3 10.0.5.102 10.0.5.0 0.0.0.0 192.168.0.1 08:00:27:4F:EF:D4 1500
enp0s8 10.0.1.102 10.0.1.0 0.0.0.0 192.168.0.1 08:00:27:8D:25:91 1500
Check: MTU consistency of the subnet "10.0.5.0".
Node Name IP Address Subnet MTU
---------------- ------------ ------------ ------------ ----------------
rac1 enp0s3 10.0.5.101 10.0.5.0 1500
rac2 enp0s3 10.0.5.102 10.0.5.0 1500
Check: MTU consistency of the subnet "10.0.1.0".
Node Name IP Address Subnet MTU
---------------- ------------ ------------ ------------ ----------------
rac1 enp0s8 10.0.1.101 10.0.1.0 1500
rac2 enp0s8 10.0.1.102 10.0.1.0 1500
Source Destination Connected?
------------------------------ ------------------------------ ----------------
rac1[enp0s3:10.0.5.101] rac2[enp0s3:10.0.5.102] yes
Source Destination Connected?
------------------------------ ------------------------------ ----------------
rac1[enp0s8:10.0.1.101] rac2[enp0s8:10.0.1.102] yes
Verifying Check that maximum (MTU) size packet goes through subnet ...PASSED
Verifying subnet mask consistency for subnet "10.0.5.0" ...PASSED
Verifying subnet mask consistency for subnet "10.0.1.0" ...PASSED
Verifying Node Connectivity ...PASSED
Verifying Multicast or broadcast check ...
Checking subnet "10.0.5.0" for multicast communication with multicast group "224.0.0.251"
Verifying Multicast or broadcast check ...PASSED
Verifying ASMLib installation and configuration verification. ...
Verifying '/etc/init.d/oracleasm' ...PASSED
Verifying '/dev/oracleasm' ...PASSED
Verifying '/etc/sysconfig/oracleasm' ...PASSED
Node Name Status
------------------------------------ ------------------------
rac1 passed
rac2 passed
Verifying ASMLib installation and configuration verification. ...PASSED
Verifying Network Time Protocol (NTP) ...PASSED
Verifying Same core file name pattern ...PASSED
Verifying User Mask ...
Node Name Available Required Comment
------------ ------------------------ ------------------------ ----------
rac2 0022 0022 passed
rac1 0022 0022 passed
Verifying User Mask ...PASSED
Verifying User Not In Group "root": grid ...
Node Name Status Comment
------------ ------------------------ ------------------------
rac2 passed does not exist
rac1 passed does not exist
Verifying User Not In Group "root": grid ...PASSED
Verifying Time zone consistency ...PASSED
Verifying Time offset between nodes ...PASSED
Verifying resolv.conf Integrity ...
Node Name Status
------------------------------------ ------------------------
rac1 failed
rac2 failed
checking response for name "rac1" from each of the name servers specified in
"/etc/resolv.conf"
Node Name Source Comment Status
------------ ------------------------ ------------------------ ----------
rac1 127.0.0.1 IPv4 passed
checking response for name "rac2" from each of the name servers specified in
"/etc/resolv.conf"
Node Name Source Comment Status
------------ ------------------------ ------------------------ ----------
rac2 127.0.0.1 IPv4 passed
rac2 164.124.101.2 IPv4 passed
rac2 168.126.63.1 IPv4 passed
Verifying resolv.conf Integrity ...FAILED (PRVF-5636)
Verifying DNS/NIS name service ...PASSED
Verifying Domain Sockets ...PASSED
Verifying /boot mount ...PASSED
Verifying Daemon "avahi-daemon" not configured and running ...
Node Name Configured Status
------------ ------------------------ ------------------------
rac2 no passed
rac1 no passed
Node Name Running? Status
------------ ------------------------ ------------------------
rac2 no passed
rac1 no passed
Verifying Daemon "avahi-daemon" not configured and running ...PASSED
Verifying Daemon "proxyt" not configured and running ...
Node Name Configured Status
------------ ------------------------ ------------------------
rac2 no passed
rac1 no passed
Node Name Running? Status
------------ ------------------------ ------------------------
rac2 no passed
rac1 no passed
Verifying Daemon "proxyt" not configured and running ...PASSED
Verifying loopback network interface address ...PASSED
Verifying User Equivalence ...PASSED
Verifying RPM Package Manager database ...PASSED
Verifying /dev/shm mounted as temporary file system ...PASSED
Verifying File system mount options for path /var ...PASSED
Verifying DefaultTasksMax parameter ...PASSED
Verifying zeroconf check ...PASSED
Verifying ASM Filter Driver configuration ...PASSED
Verifying Systemd login manager IPC parameter ...PASSED
Pre-check for cluster services setup was unsuccessful on all the nodes.
Failures were encountered during execution of CVU verification request "stage -pre crsinst".
Verifying Hard Limit: maximum open file descriptors ...FAILED
rac2: PRVG-0446 : Proper hard limit for maximum open file descriptors was not
found on node "rac2" [Expected >= "65536" ; Found = "4096"].
Verifying Soft Limit: maximum stack size ...FAILED
rac2: PRVG-0449 : Proper soft limit for maximum stack size was not found on
node "rac2" [Expected >= "10240" ; Found = "8192"].
Verifying resolv.conf Integrity ...FAILED
rac2: PRVF-5636 : The DNS response time for an unreachable node exceeded
"15000" ms on following nodes: rac1,rac2
rac1: PRVF-5636 : The DNS response time for an unreachable node exceeded
"15000" ms on following nodes: rac1,rac2
CVU operation performed: stage -pre crsinst
Date: Apr 25, 2023 3:43:03 PM
CVU home: /u01/app/19c/grid/
User: grid
******************************************************************************************
Following is the list of fixable prerequisites selected to fix in this session
******************************************************************************************
-------------- --------------- ------------- -------------
--- -----
Check failed. Failed on nodes Reboot Re-Login
required? required?
-------------- --------------- ------------- -------------
--- -----
Hard Limit: maximum open rac2 no yes
file descriptors
Soft Limit: maximum stack rac2 no yes
size
Fix: Hard Limit: maximum open file descriptors
Node Name Status
------------------------------------ ------------------------
rac2 successful
Result:
"Hard Limit: maximum open file descriptors" was successfully fixed on all the applicable nodes
Fix: Soft Limit: maximum stack size
Node Name Status
------------------------------------ ------------------------
rac2 successful
Result:
"Soft Limit: maximum stack size" was successfully fixed on all the applicable nodes
Fix up operations were successfully completed on all the applicable nodes
3. rsp 파일 생성
vi /media/engine/grid_engine.rsp
-----------------------------------------------------------------------------------------------
oracle.install.responseFileVersion=/oracle/install/rspfmt_crsinstall_response_schema_v19.0.0
INVENTORY_LOCATION=/u01/app/oraInventory
oracle.install.option=CRS_CONFIG
ORACLE_BASE=/u01/app/oracle
oracle.install.asm.OSDBA=asmdba
oracle.install.asm.OSOPER=asmoper
oracle.install.asm.OSASM=asmadmin
oracle.install.crs.config.scanType=LOCAL_SCAN
oracle.install.crs.config.gpnp.scanName=rac-scan
oracle.install.crs.config.gpnp.scanPort=1521
oracle.install.crs.config.ClusterConfiguration=STANDALONE
oracle.install.crs.config.configureAsExtendedCluster=false
oracle.install.crs.config.clusterName=rac
oracle.install.crs.config.gpnp.configureGNS=false
oracle.install.crs.config.autoConfigureClusterNodeVIP=false
oracle.install.crs.config.clusterNodes=rac1:rac1-vip,rac2:rac2-vip
oracle.install.crs.config.networkInterfaceList=enp0s3:10.0.5.0:1,enp0s8:10.0.1.0:5
oracle.install.crs.configureGIMR=false
oracle.install.asm.configureGIMRDataDG=false
oracle.install.crs.config.storageOption=FLEX_ASM_STORAGE
oracle.install.crs.config.useIPMI=false
oracle.install.asm.diskGroup.name=CRS
oracle.install.asm.diskGroup.redundancy=EXTERNAL
oracle.install.asm.diskGroup.AUSize=4
oracle.install.asm.diskGroup.disksWithFailureGroupNames=/dev/oracleasm/disks/CRS2,,/dev/oracleasm/disks/CRS1,,/dev/oracleasm/disks/CRS3,
oracle.install.asm.diskGroup.disks=/dev/oracleasm/disks/CRS2,/dev/oracleasm/disks/CRS1,/dev/oracleasm/disks/CRS3
oracle.install.asm.diskGroup.diskDiscoveryString=/dev/oracleasm/disks/*
oracle.install.asm.gimrDG.AUSize=1
oracle.install.asm.configureAFD=false
oracle.install.asm.monitorPassword=oracle
oracle.install.asm.SYSASMPassword=oracle
oracle.install.crs.configureRHPS=false
oracle.install.crs.config.ignoreDownNodes=false
oracle.install.config.managementOption=NONE
oracle.install.config.omsPort=0
oracle.install.crs.rootconfig.executeRootScript=false
-----------------------------------------------------------------------------------------------
4. 설치
cd $GI_HOME
./gridSetup.sh -silent -responseFile /media/engine/grid_engine.rsp -ignorePrereqFailure
[+ASM1|grid:/u01/app/19c/grid]> ./gridSetup.sh -silent -responseFile /media/engine/grid_engine.rsp -ignorePrereqFailure
Launching Oracle Grid Infrastructure Setup Wizard...
[WARNING] [INS-30011] The SYS password entered does not conform to the Oracle recommended standards.
CAUSE: Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9].
ACTION: Provide a password that conforms to the Oracle recommended standards.
[WARNING] [INS-30011] The ASMSNMP password entered does not conform to the Oracle recommended standards.
CAUSE: Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9].
ACTION: Provide a password that conforms to the Oracle recommended standards.
[WARNING] [INS-40109] The specified Oracle Base location is not empty on this server.
ACTION: Specify an empty location for Oracle Base.
[WARNING] [INS-32047] The location (/u01/app/oraInventory) specified for the central inventory is not empty.
ACTION: It is recommended to provide an empty location for the inventory.
[WARNING] [INS-13013] Target environment does not meet some mandatory requirements.
CAUSE: Some of the mandatory prerequisites are not met. See logs for details. /tmp/GridSetupActions2023-04-26_07-42-11AM/gridSetupActions2023-04-26_07-42-11AM.log
ACTION: Identify the list of failed prerequisite checks from the log: /tmp/GridSetupActions2023-04-26_07-42-11AM/gridSetupActions2023-04-26_07-42-11AM.log. Then either from the log file or from installation manual find the appropriate configuration to meet the prerequisites and fix it manually.
The response file for this session can be found at:
/u01/app/19c/grid/install/response/grid_2023-04-26_07-42-11AM.rsp
You can find the log of this install session at:
/tmp/GridSetupActions2023-04-26_07-42-11AM/gridSetupActions2023-04-26_07-42-11AM.log
As a root user, execute the following script(s):
1. /u01/app/oraInventory/orainstRoot.sh
2. /u01/app/19c/grid/root.sh
Execute /u01/app/oraInventory/orainstRoot.sh on the following nodes:
[rac1, rac2]
Execute /u01/app/19c/grid/root.sh on the following nodes:
[rac1, rac2]
Run the script on the local node first. After successful completion, you can start the script in parallel on all other nodes.
Successfully Setup Software with warning(s).
As install user, execute the following command to complete the configuration.
/u01/app/19c/grid/gridSetup.sh -executeConfigTools -responseFile /media/engine/grid_engine.rsp [-silent]
Moved the install session logs to:
/u01/app/oraInventory/logs/GridSetupActions2023-04-26_07-42-11AM
[rac1|root:/root]> /u01/app/oraInventory/orainstRoot.sh
Changing permissions of /u01/app/oraInventory.
Adding read,write permissions for group.
Removing read,write,execute permissions for world.
Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete.
[rac2|root:/u01/app/19c]> /u01/app/oraInventory/orainstRoot.sh
Changing permissions of /u01/app/oraInventory.
Adding read,write permissions for group.
Removing read,write,execute permissions for world.
Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete.
[rac1|root:/root]> /u01/app/19c/grid/root.sh
Check /u01/app/19c/grid/install/root_rac1_2023-04-26_07-51-30-760646309.log for the output of root script
Performing root user operation.
The following environment variables are set as:
ORACLE_OWNER= grid
ORACLE_HOME= /u01/app/19c/grid
Copying dbhome to /usr/local/bin ...
Copying oraenv to /usr/local/bin ...
Copying coraenv to /usr/local/bin ...
Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /u01/app/19c/grid/crs/install/crsconfig_params
The log of current session can be found at:
/u01/app/oracle/crsdata/rac1/crsconfig/rootcrs_rac1_2023-04-26_07-51-37AM.log
2023/04/26 07:51:43 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2023/04/26 07:51:43 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2023/04/26 07:51:44 CLSRSC-363: User ignored prerequisites during installation
2023/04/26 07:51:44 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2023/04/26 07:51:45 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2023/04/26 07:51:46 CLSRSC-594: Executing installation step 5 of 19: 'SetupOSD'.
2023/04/26 07:51:46 CLSRSC-594: Executing installation step 6 of 19: 'CheckCRSConfig'.
2023/04/26 07:51:46 CLSRSC-594: Executing installation step 7 of 19: 'SetupLocalGPNP'.
2023/04/26 07:52:03 CLSRSC-594: Executing installation step 8 of 19: 'CreateRootCert'.
2023/04/26 07:52:08 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2023/04/26 07:52:09 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2023/04/26 07:52:21 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2023/04/26 07:52:21 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2023/04/26 07:52:25 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2023/04/26 07:52:25 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'
2023/04/26 07:52:46 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2023/04/26 07:52:50 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
2023/04/26 07:52:54 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2023/04/26 07:52:58 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.
ASM has been created and started successfully.
[DBT-30001] Disk groups created successfully. Check /u01/app/oracle/cfgtoollogs/asmca/asmca-230426AM075327.log for details.
2023/04/26 07:54:17 CLSRSC-482: Running command: '/u01/app/19c/grid/bin/ocrconfig -upgrade grid oinstall'
CRS-4256: Updating the profile
Successful addition of voting disk 14d2dd3844884f8ebf81156321e3cecd.
Successfully replaced voting disk group with +CRS.
CRS-4256: Updating the profile
CRS-4266: Voting file(s) successfully replaced
## STATE File Universal Id File Name Disk group
-- ----- ----------------- --------- ---------
1. ONLINE 14d2dd3844884f8ebf81156321e3cecd (/dev/oracleasm/disks/CRS2) [CRS]
Located 1 voting disk(s).
2023/04/26 07:55:35 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
2023/04/26 07:56:40 CLSRSC-343: Successfully started Oracle Clusterware stack
2023/04/26 07:56:40 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
2023/04/26 07:58:43 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
2023/04/26 07:59:20 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded
[rac2|root:/u01/app/19c]> /u01/app/19c/grid/root.sh
Check /u01/app/19c/grid/install/root_rac2_2023-04-26_08-02-36-204680389.log for the output of root script
Performing root user operation.
The following environment variables are set as:
ORACLE_OWNER= grid
ORACLE_HOME= /u01/app/19c/grid
Copying dbhome to /usr/local/bin ...
Copying oraenv to /usr/local/bin ...
Copying coraenv to /usr/local/bin ...
Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /u01/app/19c/grid/crs/install/crsconfig_params
The log of current session can be found at:
/u01/app/oracle/crsdata/rac2/crsconfig/rootcrs_rac2_2023-04-26_08-02-55AM.log
2023/04/26 08:03:03 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2023/04/26 08:03:04 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2023/04/26 08:03:04 CLSRSC-363: User ignored prerequisites during installation
2023/04/26 08:03:04 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2023/04/26 08:03:06 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2023/04/26 08:03:06 CLSRSC-594: Executing installation step 5 of 19: 'SetupOSD'.
2023/04/26 08:03:07 CLSRSC-594: Executing installation step 6 of 19: 'CheckCRSConfig'.
2023/04/26 08:03:08 CLSRSC-594: Executing installation step 7 of 19: 'SetupLocalGPNP'.
2023/04/26 08:03:11 CLSRSC-594: Executing installation step 8 of 19: 'CreateRootCert'.
2023/04/26 08:03:11 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2023/04/26 08:03:23 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2023/04/26 08:03:23 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2023/04/26 08:03:26 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2023/04/26 08:03:26 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'
2023/04/26 08:03:43 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2023/04/26 08:03:57 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2023/04/26 08:04:00 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
2023/04/26 08:04:04 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2023/04/26 08:04:07 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.
2023/04/26 08:04:27 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
2023/04/26 08:06:29 CLSRSC-343: Successfully started Oracle Clusterware stack
2023/04/26 08:06:30 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
2023/04/26 08:07:32 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
2023/04/26 08:08:02 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded
[+ASM1|grid:/u01/app/19c/grid]> /u01/app/19c/grid/gridSetup.sh -executeConfigTools -responseFile /media/engine/grid_engine.rsp
Launching Oracle Grid Infrastructure Setup Wizard...
You can find the logs of this session at:
/u01/app/oraInventory/logs/GridSetupActions2023-04-26_08-09-00AM
You can find the log of this install session at:
/u01/app/oraInventory/logs/UpdateNodeList2023-04-26_08-09-00AM.log
[WARNING] [INS-43080] Some of the configuration assistants failed, were cancelled or skipped.
ACTION: Refer to the logs or contact Oracle Support Services.
5. 확인
- 클러스터 확인
[+ASM1|grid:/u01/app/19c/grid]> crsctl stat res -t
--------------------------------------------------------------------------------
Name Target State Server State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.LISTENER.lsnr
ONLINE ONLINE rac1 STABLE
ONLINE ONLINE rac2 STABLE
ora.chad
ONLINE ONLINE rac1 STABLE
ONLINE ONLINE rac2 STABLE
ora.net1.network
ONLINE ONLINE rac1 STABLE
ONLINE ONLINE rac2 STABLE
ora.ons
ONLINE ONLINE rac1 STABLE
ONLINE ONLINE rac2 STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
1 ONLINE ONLINE rac1 STABLE
2 ONLINE ONLINE rac2 STABLE
3 OFFLINE OFFLINE STABLE
ora.CRS.dg(ora.asmgroup)
1 ONLINE ONLINE rac1 STABLE
2 ONLINE ONLINE rac2 STABLE
3 OFFLINE OFFLINE STABLE
ora.LISTENER_SCAN1.lsnr
1 ONLINE ONLINE rac2 STABLE
ora.LISTENER_SCAN2.lsnr
1 ONLINE ONLINE rac1 STABLE
ora.LISTENER_SCAN3.lsnr
1 ONLINE ONLINE rac1 STABLE
ora.asm(ora.asmgroup)
1 ONLINE ONLINE rac1 Started,STABLE
2 ONLINE ONLINE rac2 Started,STABLE
3 OFFLINE OFFLINE STABLE
ora.asmnet1.asmnetwork(ora.asmgroup)
1 ONLINE ONLINE rac1 STABLE
2 ONLINE ONLINE rac2 STABLE
3 OFFLINE OFFLINE STABLE
ora.cvu
1 ONLINE ONLINE rac1 STABLE
ora.qosmserver
1 ONLINE ONLINE rac1 STABLE
ora.rac1.vip
1 ONLINE ONLINE rac1 STABLE
ora.rac2.vip
1 ONLINE ONLINE rac2 STABLE
ora.scan1.vip
1 ONLINE ONLINE rac2 STABLE
ora.scan2.vip
1 ONLINE ONLINE rac1 STABLE
ora.scan3.vip
1 ONLINE ONLINE rac1 STABLE
--------------------------------------------------------------------------------- 리스너 확인
[+ASM1|grid:/u01/app/19c/grid]> lsnrctl status
LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 26-APR-2023 08:13:41
Copyright (c) 1991, 2019, Oracle. All rights reserved.
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER)))
STATUS of the LISTENER
------------------------
Alias LISTENER
Version TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date 26-APR-2023 07:58:57
Uptime 0 days 0 hr. 14 min. 44 sec
Trace Level off
Security ON: Local OS Authentication
SNMP OFF
Listener Parameter File /u01/app/19c/grid/network/admin/listener.ora
Listener Log File /u01/app/oracle/diag/tnslsnr/rac1/listener/alert/log.xml
Listening Endpoints Summary...
(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=LISTENER)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=10.0.5.101)(PORT=1521)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=10.0.5.201)(PORT=1521)))
Services Summary...
Service "+ASM" has 1 instance(s).
Instance "+ASM1", status READY, has 1 handler(s) for this service...
Service "+ASM_CRS" has 1 instance(s).
Instance "+ASM1", status READY, has 1 handler(s) for this service...
The command completed successfully6. ASM DISKGROUP 생성

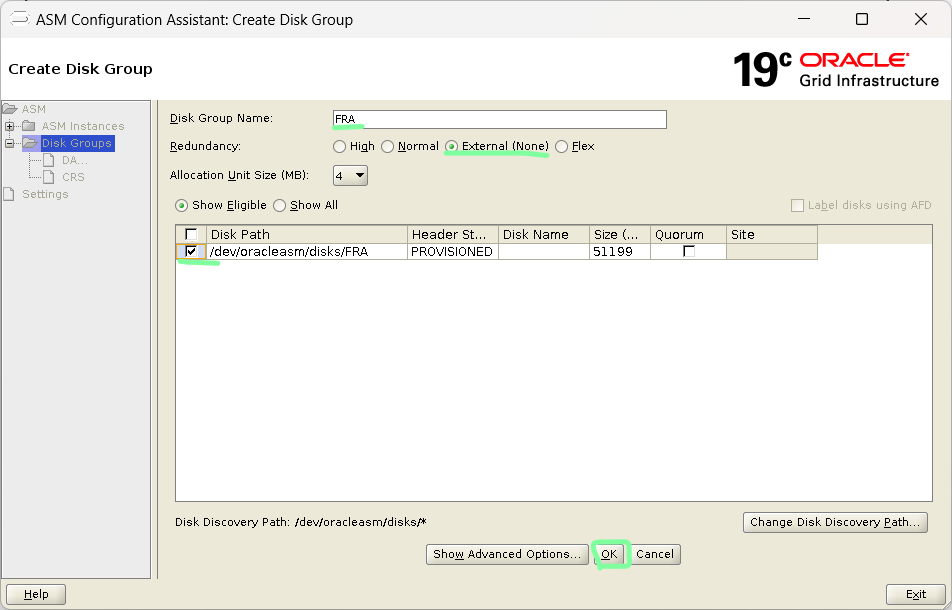

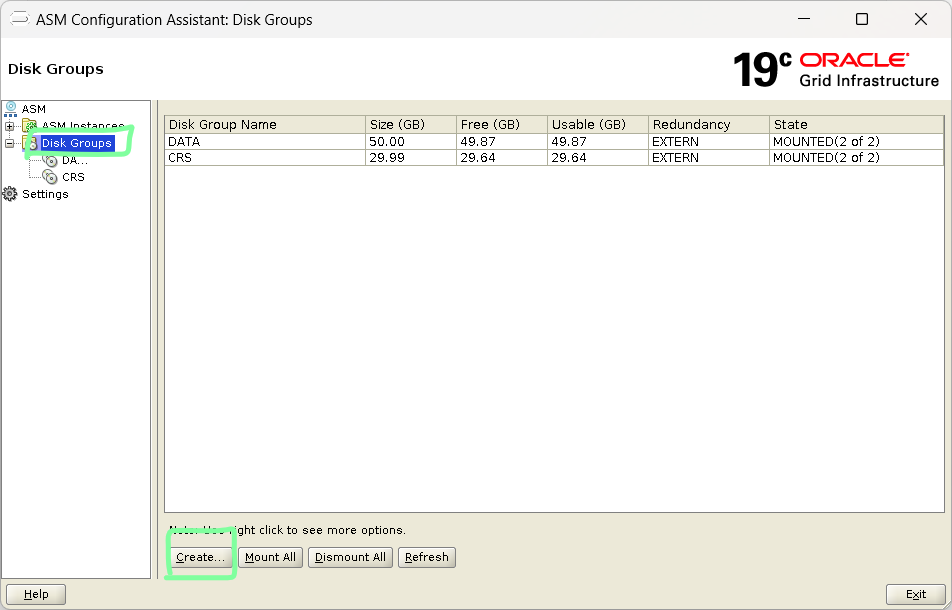

asmca
간단간단
생성확인
[+ASM1|grid:/u01/app/19c/grid]> crsctl stat res -t
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
1 ONLINE ONLINE rac1 STABLE
2 ONLINE ONLINE rac2 STABLE
3 OFFLINE OFFLINE STABLE
ora.CRS.dg(ora.asmgroup)
1 ONLINE ONLINE rac1 STABLE
2 ONLINE ONLINE rac2 STABLE
3 OFFLINE OFFLINE STABLE
ora.DATA.dg(ora.asmgroup)
1 ONLINE ONLINE rac1 STABLE
2 ONLINE ONLINE rac2 STABLE
3 ONLINE OFFLINE STABLE
ora.FRA.dg(ora.asmgroup)
1 ONLINE ONLINE rac1 STABLE
2 ONLINE ONLINE rac2 STABLE
3 ONLINE OFFLINE STABLE'ORACLE > INSTALL' 카테고리의 다른 글
| [ORACLE] 19.17c Database DBCA Silent Mode | 사일런트모드 DB 생성하기 (0) | 2023.04.26 |
|---|---|
| [ORACLE] 19c Database Engine Silent Mode 설치 | runInstaller response file (0) | 2023.04.26 |
| [ORACLE] Oracle Database 19c RAC 설치 & 19.17 patch (0) | 2023.03.23 |
| [ORACLE] Oracle Database 12c R1 RAC 설치 (0) | 2023.03.17 |
| [ORACLE] Oracle Database 12c R1 Single 설치 GUI 모드 (0) | 2023.03.15 |
