[ORACLE] Oracle Database 12c R1 RAC 설치

12c -> 19c update test를 위한 12c R1 RAC 설치

	OS / ORACLE ENVIRONMENT
EDITION	EE
RAC	RAC 2 NODE
VERSION	ORACLE 12C R1

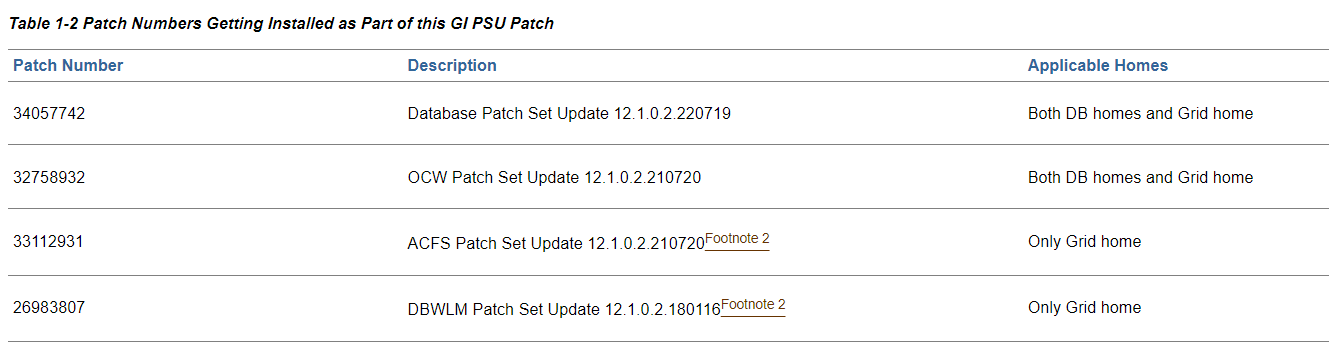

PATCH	GI : 34204576 (12.1.0.2.0) DB : 34057742 (12.1.0.2.0)
SERVER	Linux 7.9 (5.4.17-2102.201.3.el7uek.x86_64)





Media 준비

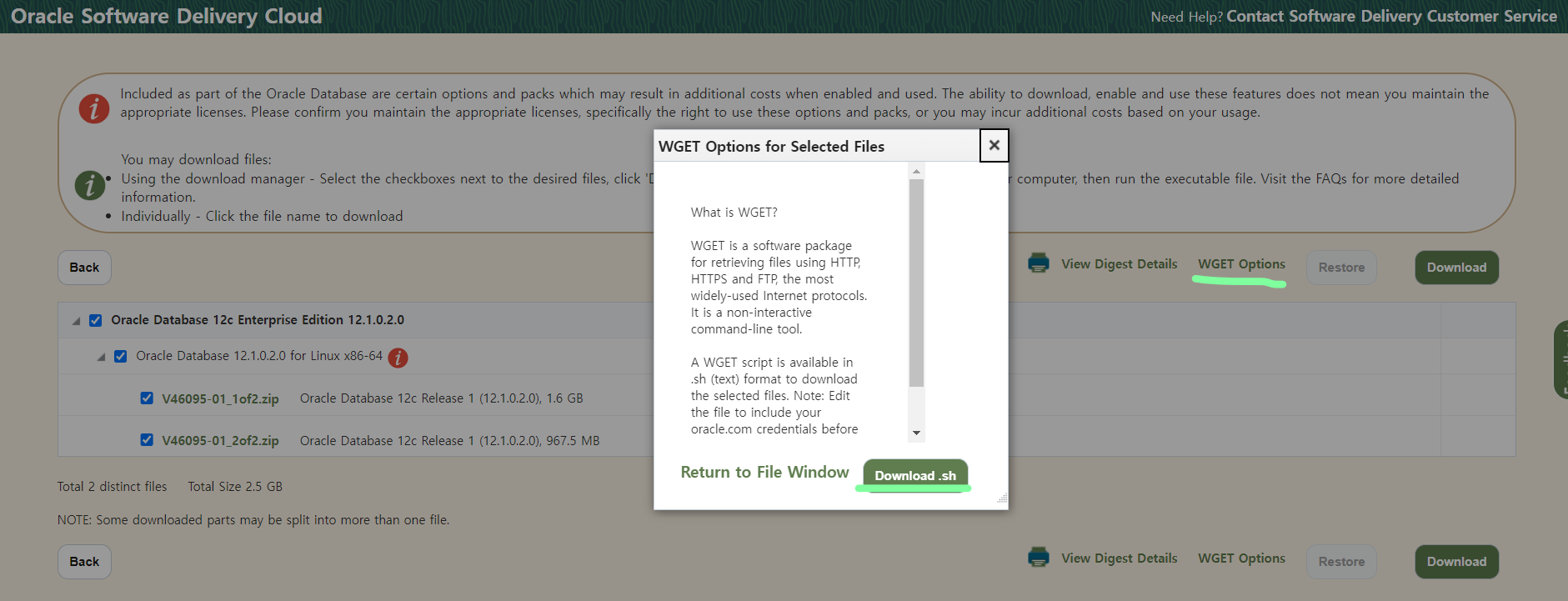

- 엔진 : https://edelivery.oracle.com/osdc/faces/SoftwareDelivery

wget.sh로 엔진 다운

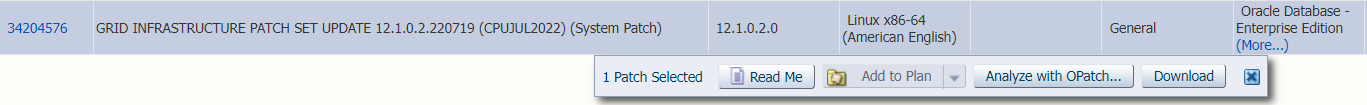

 - Patch Set : support.oracle.com (opatch number : p6880880 / DB patch number : 34057742 / GI patch number : 34204576)

--> 가장 최신 release로 받았음

GI

DB

환경 구성

서버



VM	HOSTNAME	Memory	Net Adapter 1	Net Adapter 2	구성 방법
RAC1	rac1	10GB	어댑터에 브리지	호스트 전용 어댑터	linux 설치
RAC2	rac2	10GB	어댑터에 브리지	호스트 전용 어댑터	RAC 복제

스토리지

파일 이름	용량	타입	용도
RAC1.VDI	100GB	Dynamic / Normal	RAC1 NODE STORAGE
RAC2.VDI	100GB	Dynamic / Normal	RAC2 NODE STORAGE
CRS1.VDI	3GB	Fixed / Shareable	OCR / Vote 저장 영역
CRS2.VDI	3GB	Fixed / Shareable
CRS3.VDI	3GB	Fixed / Shareable
DATA.VDI	50GB	Fixed / Shareable	DATA 영역
FRA.VDI	30GB	Fixed / Shareable	FAST RECOVERY AREA

네트워크

VM	PUBLIC IP	PRIVATE IP	VIRTUAL IP	NETMASK	GATEWAY	DNS	SCAN IP
RAC1	10.0.1.101	10.0.5.101	10.0.1.201	255.255.255.0	10.0.1.1	127.0.0.1	10.0.1.191, 10.0.1.192, 10.0.1.193
RAC2	10.0.1.102	10.0.5.102	10.0.1.202	255.255.255.0	10.0.1.1	127.0.0.1

# 서버 구성 참조 : https://dataforum.io/m/mobile.action



디렉토리 및 유저 생성

# group 생성
groupadd dba

# oracle 유저생성
useradd -g dba -G dba oracle

# oracle 유저 password 설정
passwd oracle

# oracle home directory 생성
mkdir -p /u01/app/oracle/product/12c/db_1

# grid home directory 생성
mkdir -p /u01/app/12c/grid

# media directory 생성
mkdir -p /u01/media/engine/12c
mkdir -p /u01/media/engine/19c -- for upgrade
mkdir -p /u01/media/patch/12c
mkdir -p /u01/media/patch/19c -- for upgrade
mkdir -p /u01/media/rpm

# 권한 조정
chown -R oracle:dba /u01
chmod -R 775 /u01





패키지 설치

$ yum install -y oracleasm-support
$ yum install -y ksh
$ yum install -y zlib-devel
$ yum install -y elfutils-libelf-devel
$ yum install oracle-rdbms-server-12cR1-preinstall -y

oracleasmlib media rpm 파일로 설치

[rac1|root:/u01/media/rpm]> rpm -ivh oracleasmlib-2.0.12-1.el7.x86_64.rpm

https://www.oracle.com/linux/downloads/linux-asmlib-rhel7-downloads.html

Oracle ASMLib Downloads for Red Hat Enterprise Linux 7

프로필 설정

- root

##########################################
# 1. ORACLE
##########################################
export ORACLE_BASE=/u01/app/oracle
export ORACLE_HOME=/u01/app/oracle/product/12c/db_1
export ORACLE_SID=rac1
export GRID_HOME=/u01/app/12c/grid

##########################################
# 2. FORMAT
##########################################
export PATH=$PATH:$GRID_HOME/bin
export PS1='[$ORACLE_SID|\u:$PWD]> '
set -o vi
stty erase ^H

##########################################
# 3. ALIAS
##########################################
alias ss='sqlplus / as sysdba'
alias ob='cd $ORACLE_BASE'
alias oh='cd $ORACLE_HOME'
alias dbs='cd $ORACLE_HOME/dbs'
alias net='cd $ORACLE_HOME/network/admin'
alias ..='. ~/.bash_profile'
alias ...='vi  ~/.bash_profile'
alias ora="su - oracle"

- oracle

##########################################
# 1. ORACLE
##########################################
export ORACLE_BASE=/u01/app/oracle
export ORACLE_HOME=/u01/app/oracle/product/12c/db_1
export ORACLE_SID=rac1
export GRID_HOME=/u01/app/12c/grid

##########################################
# 2. FORMAT
##########################################
export PATH=$PATH:$ORACLE_HOME/bin:$GRID_HOME/bin:$ORACLE_HOME/OPatch
export BASE_PATH=/usr/sbin:$PATH
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export DISPLAY=10.0.5.1:0.0
export PS1='[$ORACLE_SID|\u:$PWD]> '
export NLS_DATE_FORMAT='YYYY/MM/DD HH24:MI:SS'
set -o vi
stty erase ^H


##########################################
# 3. ALIAS
##########################################
alias ss='sqlplus / as sysdba'
alias ob='cd $ORACLE_BASE'
alias oh='cd $ORACLE_HOME'
alias dbs='cd $ORACLE_HOME/dbs'
alias net='cd $ORACLE_HOME/network/admin'
alias ..='. ~/.bash_profile'
alias ...='vi  ~/.bash_profile'
alias a='tail -50f /u01/app/oracle/diag/rdbms/rac/rac1/trace/al*.log'
alias bdump='cd /u01/app/oracle/diag/rdbms/rac/rac1/trace'
alias asm='export ORACLE_SID=+ASM;export ORACLE_HOME=$GRID_HOME;export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/OPatch:$BASE_PATH'



공유 스토리지 생성

rac1 VM 끄고 진행

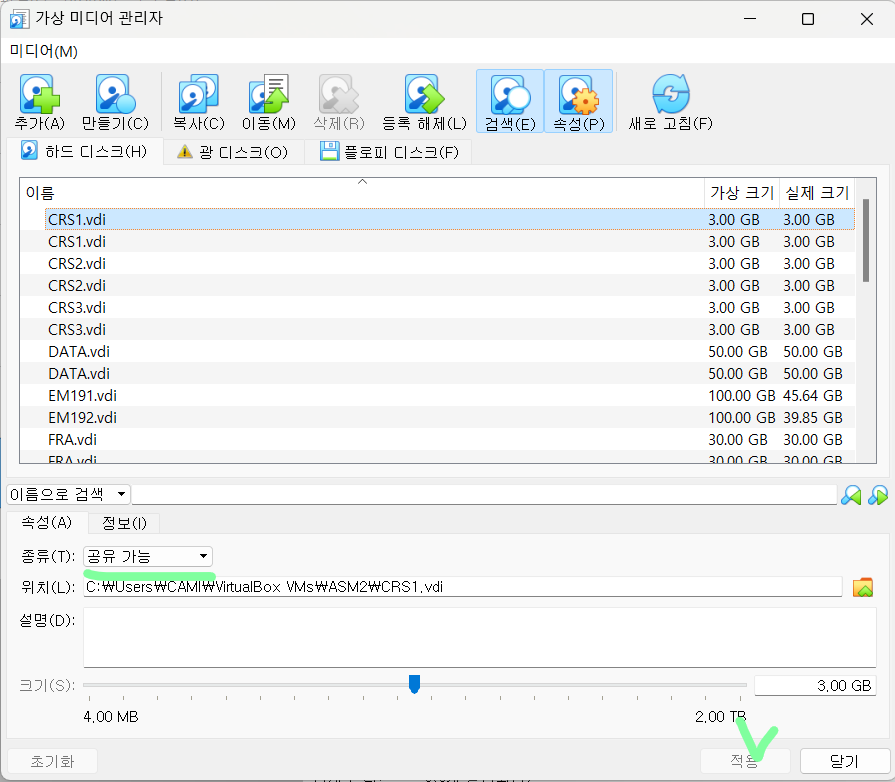

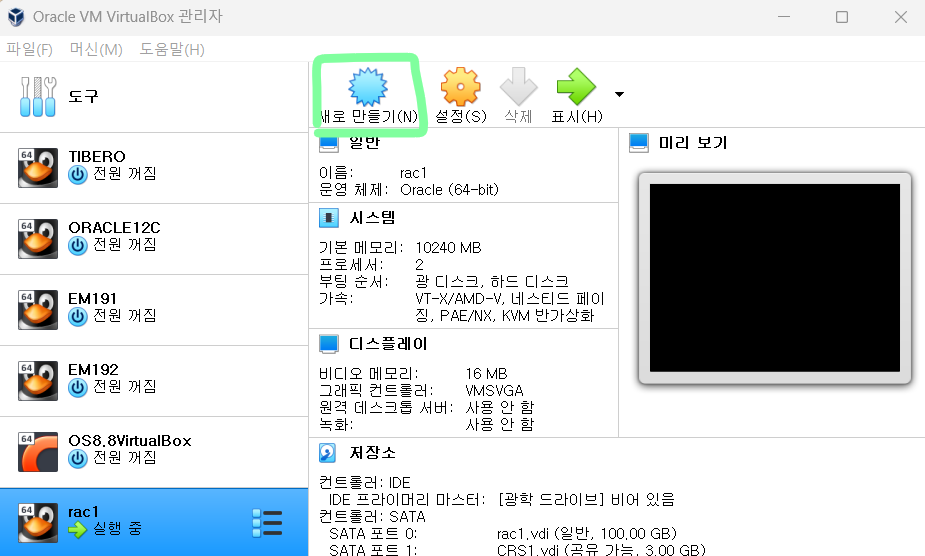

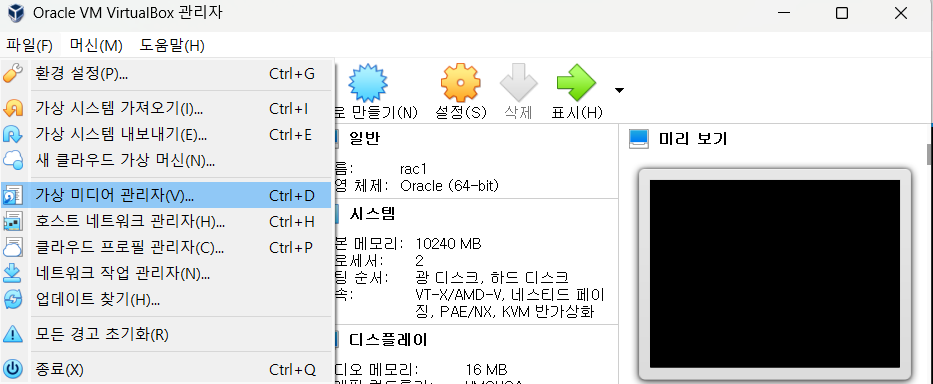

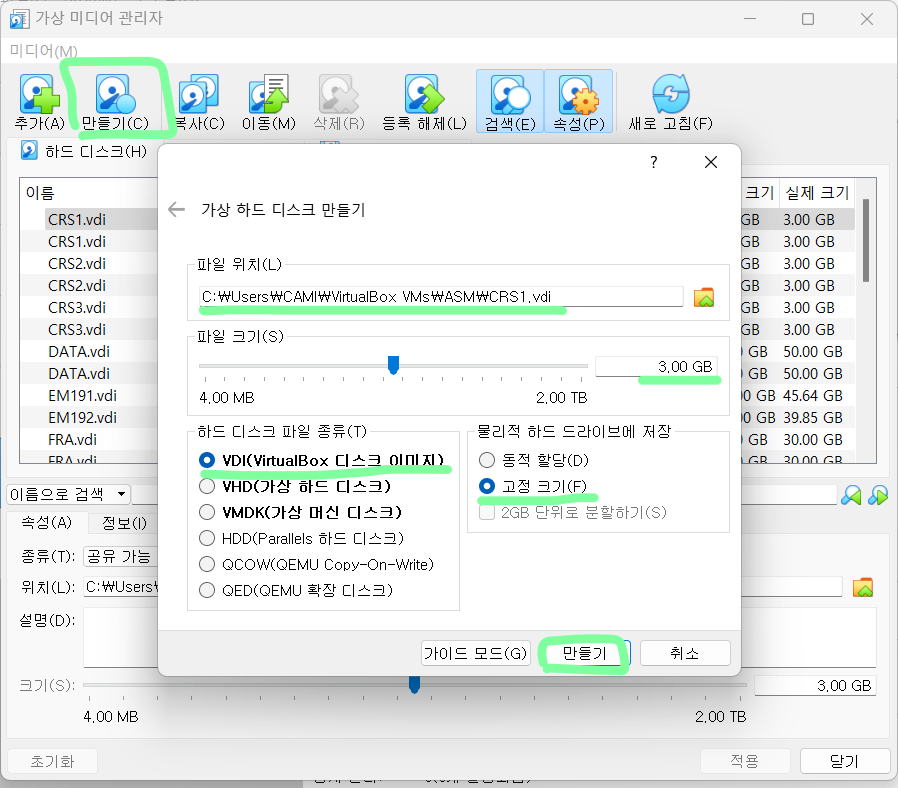

VirtualBox > 파일 > 가상미디어 관리자 선택

고정크기로 원하는 디스크 크기 부여하여 생성

공유가능으로 설정

위 과정으로 CRS1, CRS2, CRS3 : 3GB 씩

DATA 50GB , FRA 30GB 생성

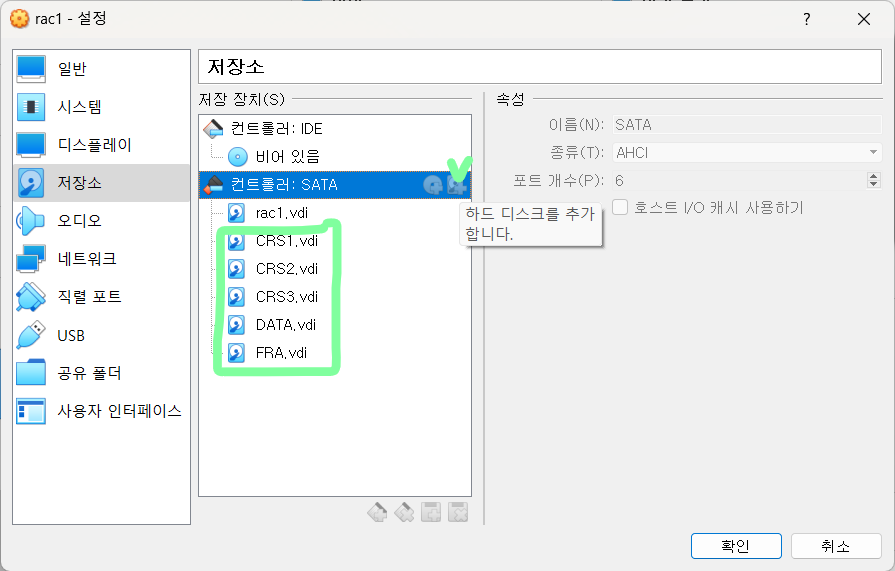

rac1 > 설정 > 저장소 > 생성 순서대로 스토리지 연결

asm 환경 구성

$ oracleasm configure -i
-------------------------------------------------------------------------
Configuring the Oracle ASM library driver.

This will configure the on-boot properties of the Oracle ASM library
driver.  The following questions will determine whether the driver is
loaded on boot and what permissions it will have.  The current values
will be shown in brackets ('[]').  Hitting <ENTER> without typing an
answer will keep that current value.  Ctrl-C will abort.

Default user to own the driver interface []: oracle
Default group to own the driver interface []: dba
Start Oracle ASM library driver on boot (y/n) [n]: y
Scan for Oracle ASM disks on boot (y/n) [y]:
Writing Oracle ASM library driver configuration: done
-------------------------------------------------------------------------
$ oracleasm init

Creating /dev/oracleasm mount point: /dev/oracleasm
Loading module "oracleasm": oracleasm
Configuring "oracleasm" to use device physical block size
Mounting ASMlib driver filesystem: /dev/oracleasm
-------------------------------------------------------------------------
$ oracleasm status

Checking if ASM is loaded: yes
Checking if /dev/oracleasm is mounted: yes
-------------------------------------------------------------------------
$ oracleasm configure
ORACLEASM_ENABLED=true
ORACLEASM_UID=oracle
ORACLEASM_GID=dba
ORACLEASM_SCANBOOT=true
ORACLEASM_SCANORDER=""
ORACLEASM_SCANEXCLUDE=""
ORACLEASM_SCAN_DIRECTORIES=""
ORACLEASM_USE_LOGICAL_BLOCK_SIZE="false"
-------------------------------------------------------------------------



디스크 파티셔닝

$ ls /dev/sd*
/dev/sda   /dev/sda2  /dev/sdc  /dev/sde
/dev/sda1  /dev/sdb   /dev/sdd  /dev/sdf

$ fdisk /dev/sdb  ### "n", "p", "1", "엔터", "엔터", "w" 입력
$ fdisk /dev/sdc  ### "n", "p", "1", "엔터", "엔터", "w" 입력
$ fdisk /dev/sdd  ### "n", "p", "1", "엔터", "엔터", "w" 입력
$ fdisk /dev/sde  ### "n", "p", "1", "엔터", "엔터", "w" 입력
$ fdisk /dev/sdf  ### "n", "p", "1", "엔터", "엔터", "w" 입력


[rac1|root:/u01/media]> ls /dev/sd*
/dev/sda   /dev/sda2  /dev/sdb1  /dev/sdc1  /dev/sdd1  /dev/sde1  /dev/sdf1
/dev/sda1  /dev/sdb   /dev/sdc   /dev/sdd   /dev/sde   /dev/sdf

asm 디스크 생성

$ oracleasm createdisk CRS1 /dev/sdb1
$ oracleasm createdisk CRS2 /dev/sdc1
$ oracleasm createdisk CRS3 /dev/sdd1
$ oracleasm createdisk DATA /dev/sde1
$ oracleasm createdisk FRA /dev/sdf1


[rac1|root:/u01/media]> oracleasm scandisks
Reloading disk partitions: done
Cleaning any stale ASM disks...
Scanning system for ASM disks...


[rac1|root:/u01/media]> oracleasm listdisks
CRS1
CRS2
CRS3
DATA
FRA





rac2 복제

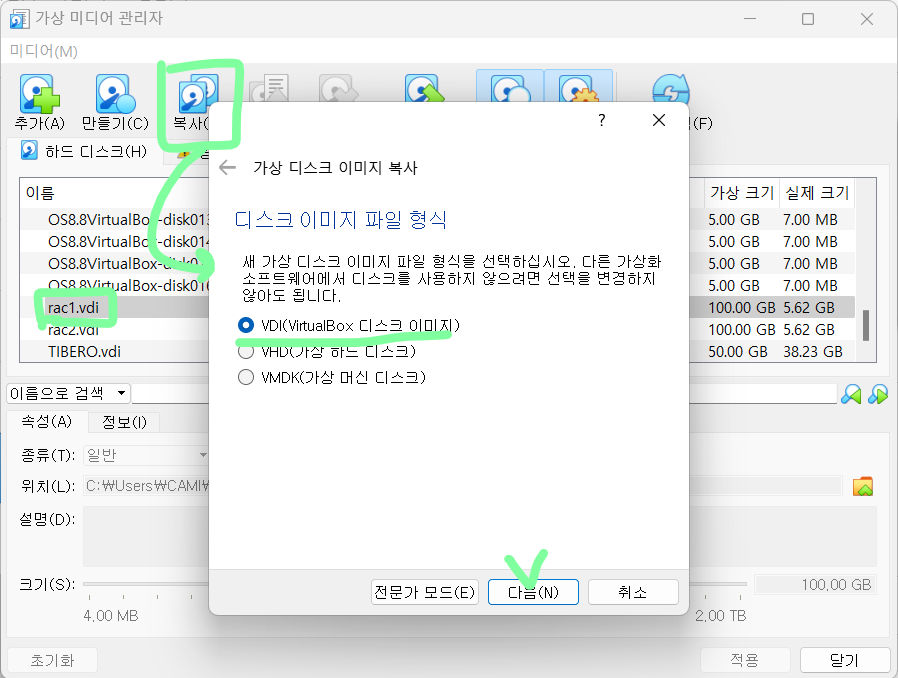

VirtualBox > 파일 > 가상미디어 관리자 선택

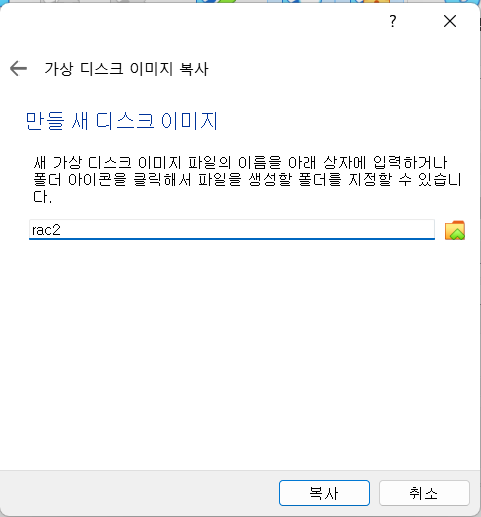

rac1 선택 후 복사

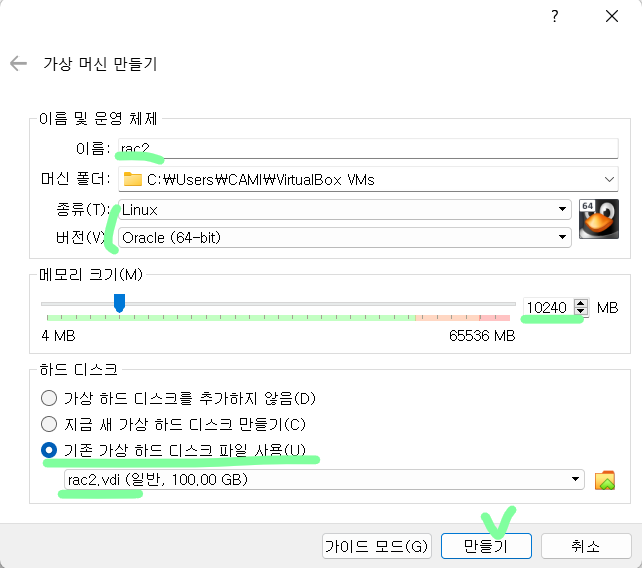

이름 설정

방금 만든 스토리지 붙여서 새로만들거임

후 설정

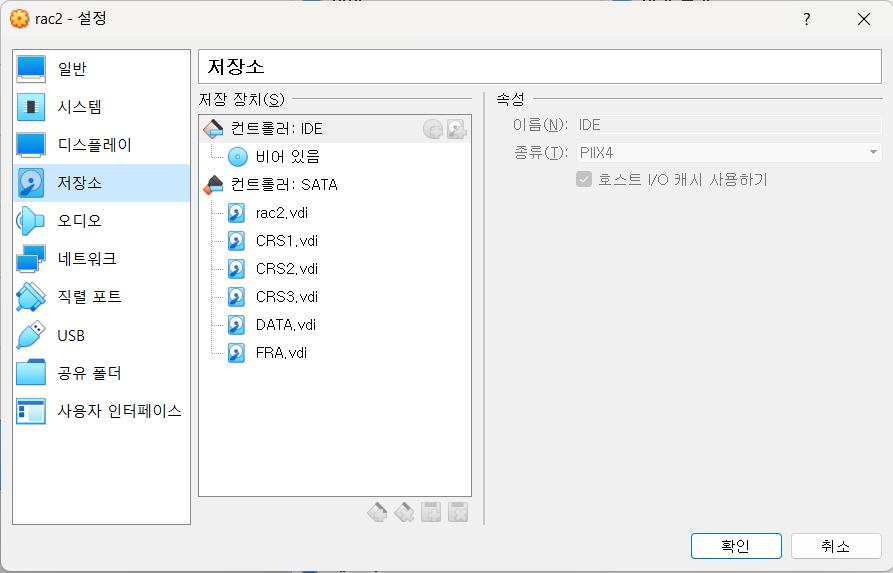

스토리지

• 네트워크 - 어댑터1 : 어댑터에브리지 / 어댑터 2 : 호스트 전용 어댑터
• 오디오 - 사용안함
• 시스템 - 부팅순서 플로피 x / 프로세서 CPU 2



rac2 접속 후 network 설정 / hostname / profile 변경

# network 설정 변경
[rac2|root:/root]> vi /etc/sysconfig/network-scripts/ifcfg-enp0s3
IPADDR=10.0.1.102 변경

[rac2|root:/root]> vi /etc/sysconfig/network-scripts/ifcfg-enp0s8
IPADDR=10.0.5.102 변경

[rac2|root:/root]> systemctl restart network


# hostname 설정 변경
hostnamectl status -- rac1일것임 복제해서
hostnamectl set-hostname rac2
hostnamectl status -- 변경확인

# .bash_profile 변경 < root / oracle >
export ORACLE_SID=rac2
alias a='tail -50f /u01/app/oracle/diag/rdbms/rac/rac2/trace/al*.log'
alias bdump='cd /u01/app/oracle/diag/rdbms/rac/rac2/trace'



Grid 설치 (rac1 에서만 진행)

- 엔진 압축 해제

[rac1|root:/u01/media/engine/12c/grid]> ora
Last login: Fri Mar 17 09:29:19 KST 2023 on pts/1
[rac1|oracle:/home/oracle]> asm
[+ASM|oracle:/home/oracle]> cd /u01/media/engine/12c/grid
[+ASM|oracle:/u01/media/engine/12c/grid]> unzip ./V46096-01_1of2.zip -d $ORACLE_HOME
[+ASM|oracle:/u01/media/engine/12c/grid]> unzip ./V46096-01_2of2.zip -d $ORACLE_HOME

[+ASM|oracle:/u01/media/engine/12c/grid]> cd $ORACLE_HOME
[+ASM|oracle:/u01/app/12c/grid]> ls -al
total 4
drwxr-xr-x. 3 oracle dba   18 Mar 17 10:21 .
drwxr-xr-x. 3 oracle dba   18 Mar 17 09:40 ..
drwxr-xr-x. 7 oracle dba 4096 Jul  7  2014 grid
[+ASM|oracle:/u01/app/12c/grid]> cd grid/
[+ASM|oracle:/u01/app/12c/grid/grid]> ls -al
total 36
drwxr-xr-x.  7 oracle dba 4096 Jul  7  2014 .
drwxr-xr-x.  3 oracle dba   18 Mar 17 10:21 ..
drwxr-xr-x.  4 oracle dba 4096 Mar 17 10:22 install
drwxrwxr-x.  2 oracle dba   30 Jul  7  2014 response
drwxr-xr-x.  2 oracle dba   34 Jul  7  2014 rpm
-rwxr-xr-x.  1 oracle dba 5085 Dec 20  2013 runcluvfy.sh
-rwxr-xr-x.  1 oracle dba 8534 Jul  7  2014 runInstaller
drwxrwxr-x.  2 oracle dba   29 Jul  7  2014 sshsetup
drwxr-xr-x. 14 oracle dba 4096 Jul  7  2014 stage
-rwxr-xr-x.  1 oracle dba  500 Feb  7  2013 welcome.html

- 설치 진행

[+ASM|oracle:/u01/app/12c/grid/grid]> ./runInstaller
Starting Oracle Universal Installer...

Checking Temp space: must be greater than 415 MB.   Actual 64007 MB    Passed
Checking swap space: must be greater than 150 MB.   Actual 10239 MB    Passed
Checking monitor: must be configured to display at least 256 colors.    Actual 16777216    Passed
Preparing to launch Oracle Universal Installer from /tmp/OraInstall2023-03-17_10-29-30AM. Please wait

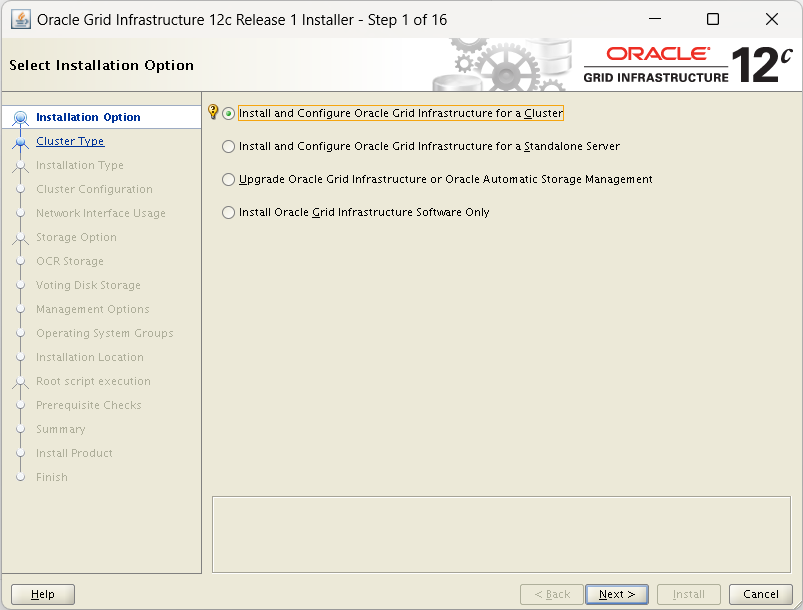

1) 소프트웨어 설치 후 Cluster 구성까지 진행

2) 소프트웨어 설치 후 Standalone 서버 구성

3) Grid 업그레이드 하거나 ASM 구성 진행

4) 소프트웨어만 설치

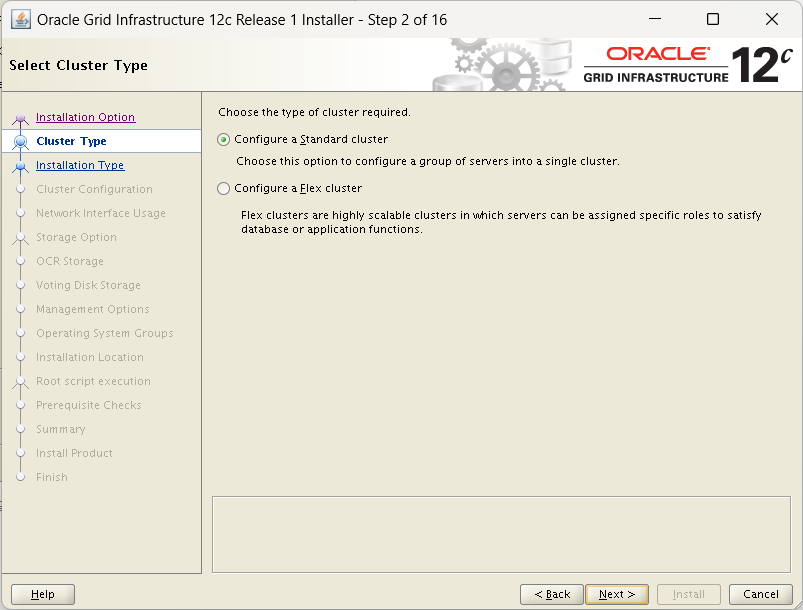

1) 일반적인 Cluster 구성

2) 많은 node의 구성을 할 수 있는 Cluster 구성

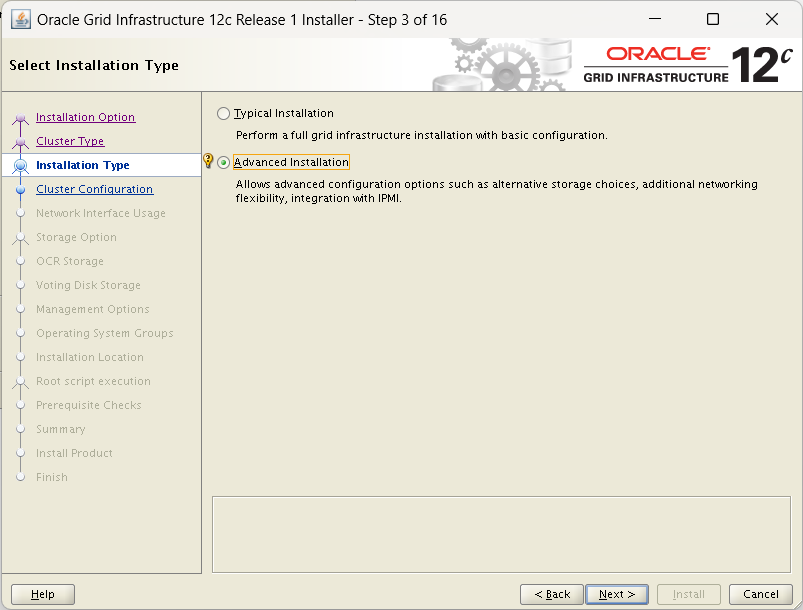

1) 일반설치

2) 상세 설정 적용

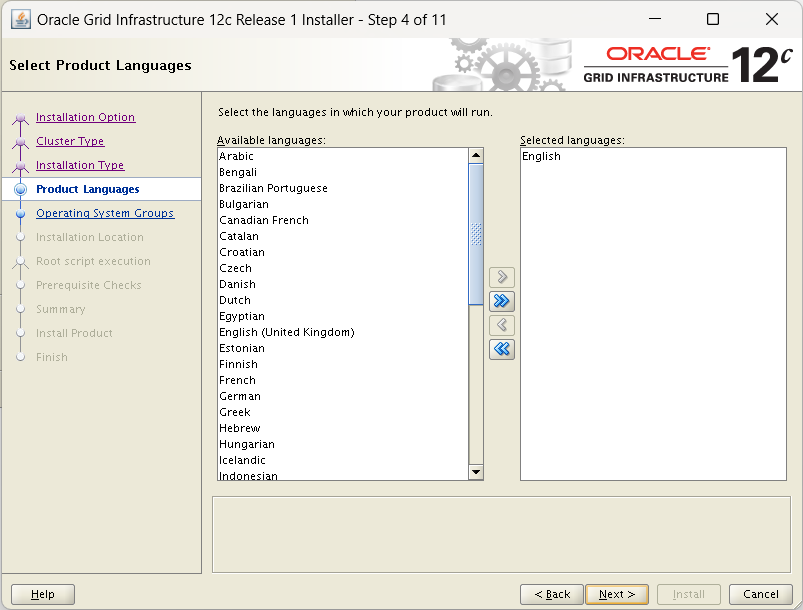

영어만 선택

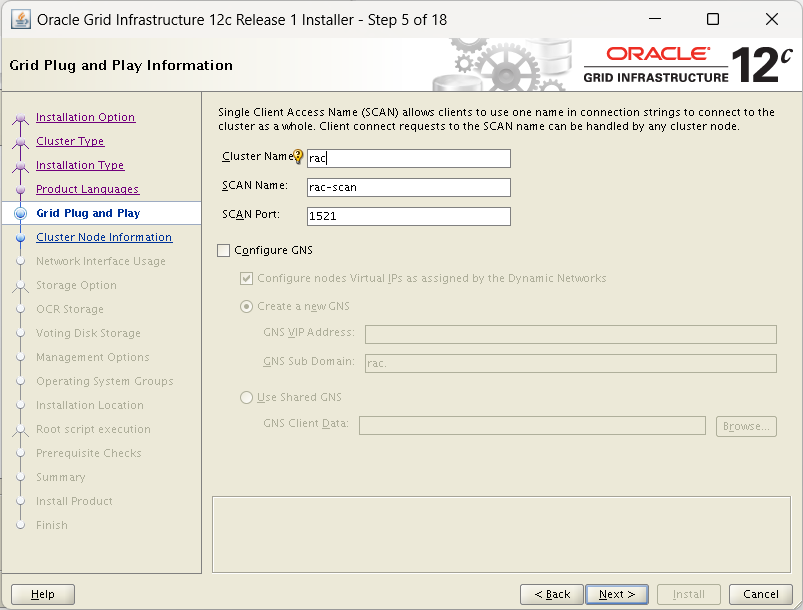

cluster name 설정

GNS 사용 X (Grid Name Service 설정)

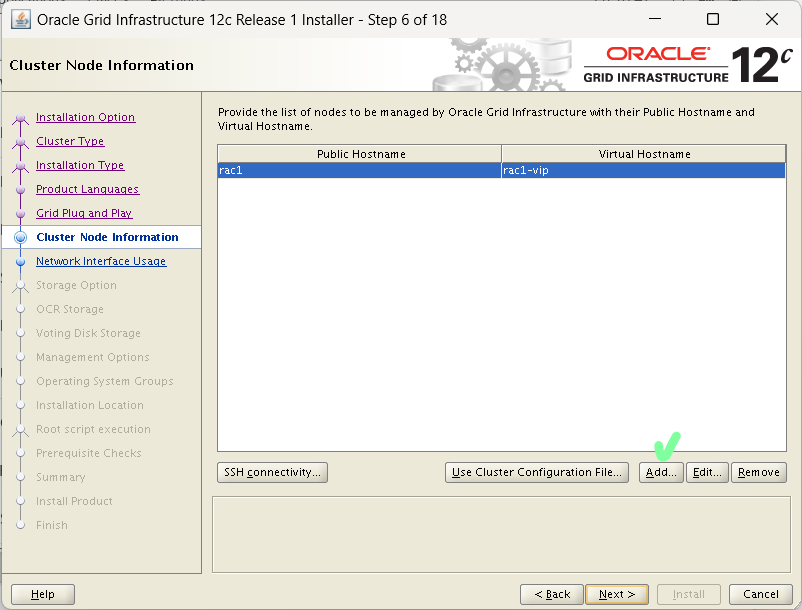

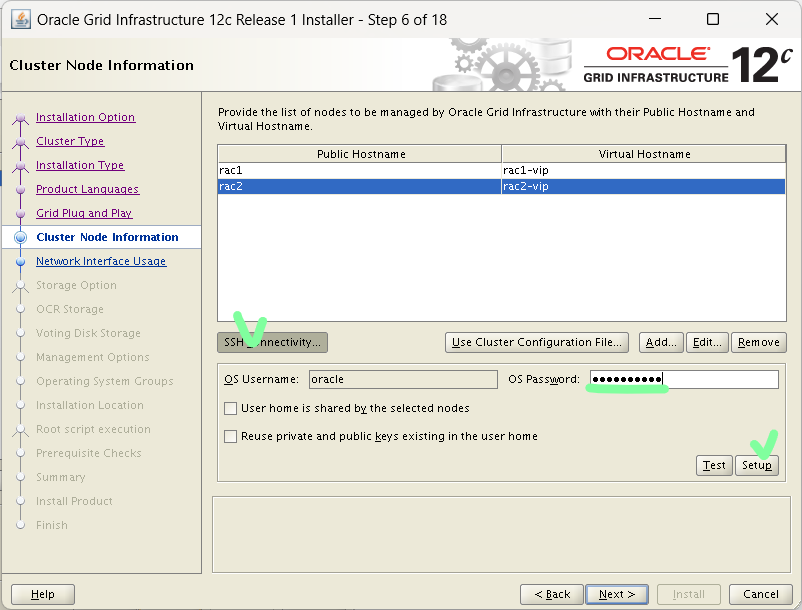

rac2 추가

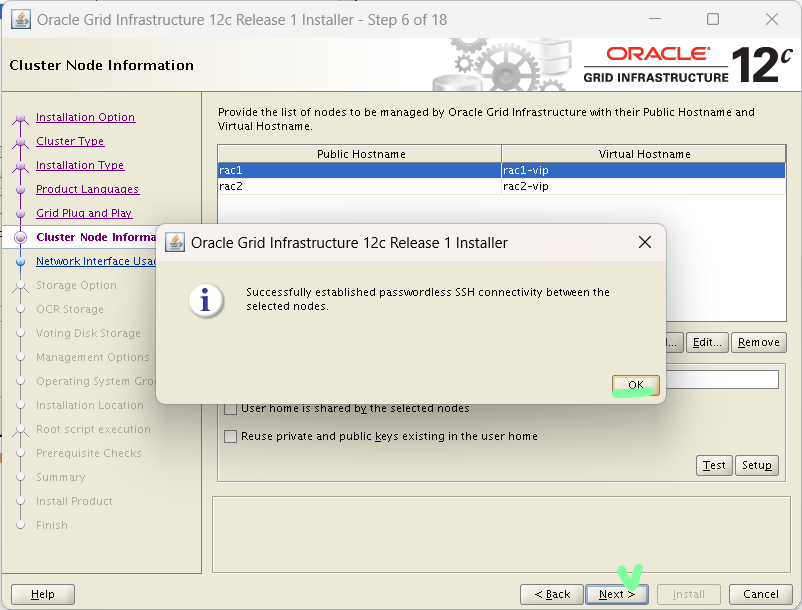

두 노드간 비밀번호 없는 ssh 접속 설정

설정 완료

1) 일반적 ASM 사용

2) Flex Cluster 구성 시 ASM 사용

3) ASM을 다른 서버에서 구성할 때 선택

4) Cluster File System 사용

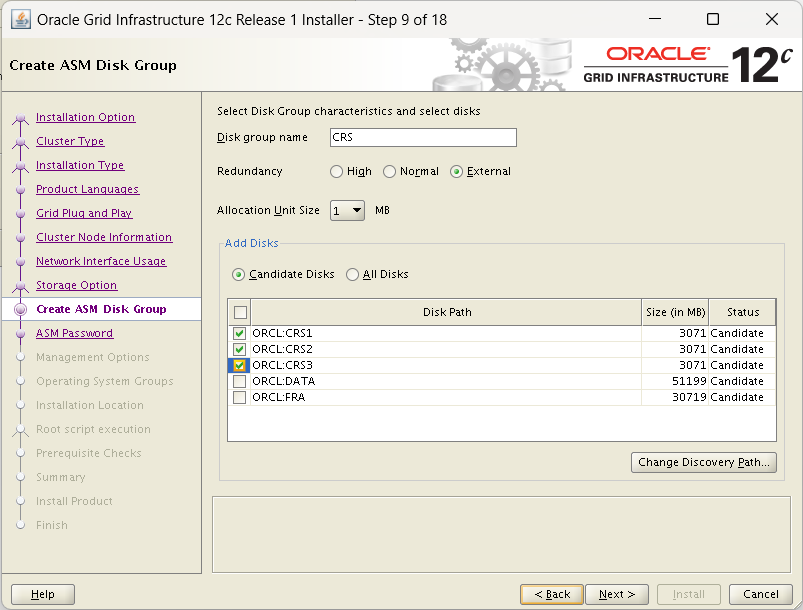

클러스터 환경을 구성하고 저장할 스토리지 설정

DISK GROUP NAME : 디스크명

Redundancy external AU 1MB / 아까 생성한 공유 디스크 CRS 1, 2, 3 선택 후 next

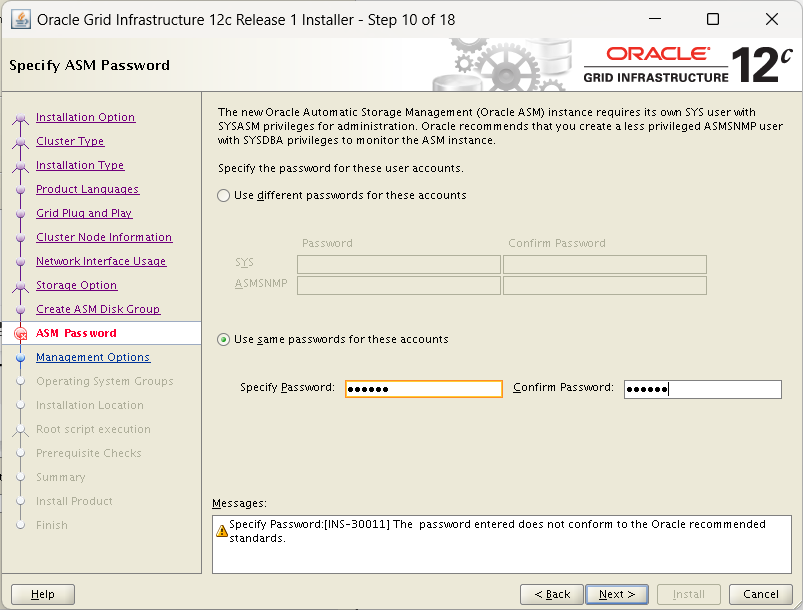

ORACLE ASM 의 SYS 및 SYSASM 계정의 비밀번호를 동일하게 사용하겠다

INS-30011 : 입력한 비밀번호가 권고사항에 어긋난다 < 무시가능 >

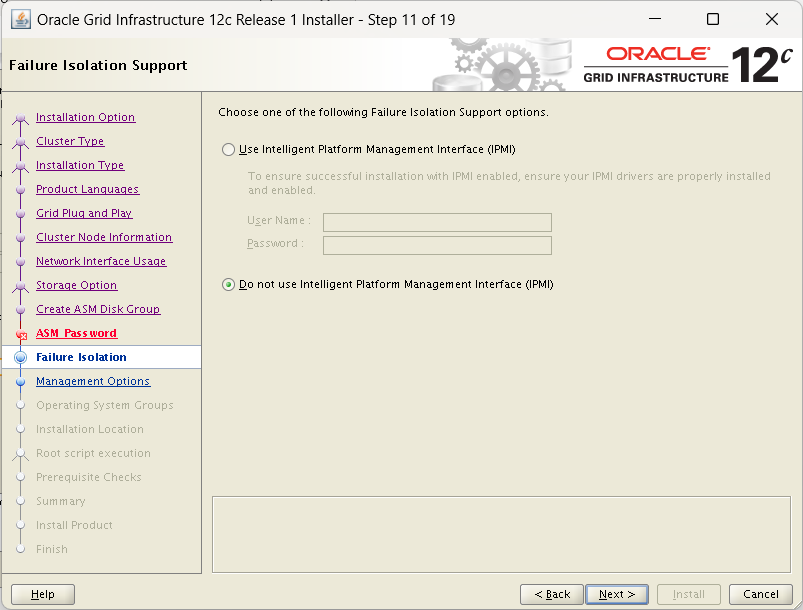

IPMI 사용 X

하드웨어에서 지원하는 서버관리 솔루션 (시스템 온도, 팬 속도, 하드웨어 이벤트 등을 콘솔을 통해 보여주는 솔루션)

EM 사용 X

Oracle에서 제공하는 관리 솔루션 / 거의 사용 x

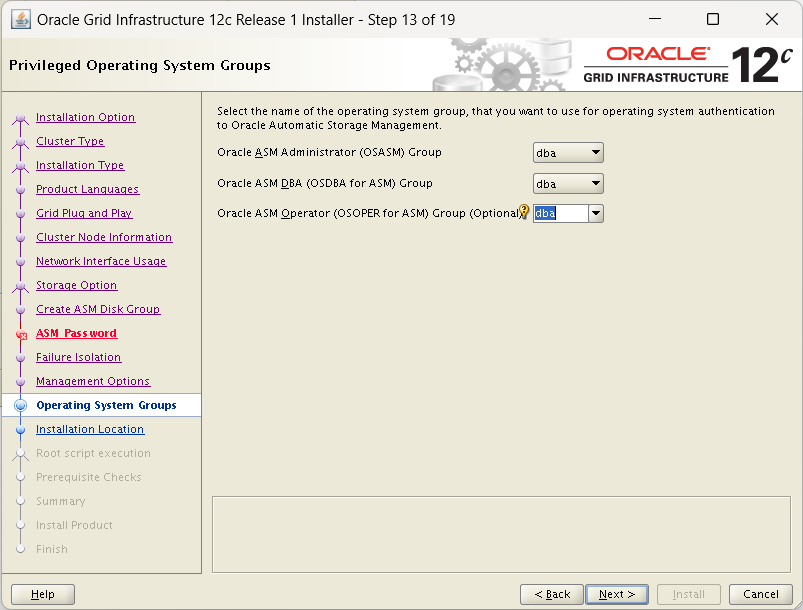

ASM 관리 그룹 설정

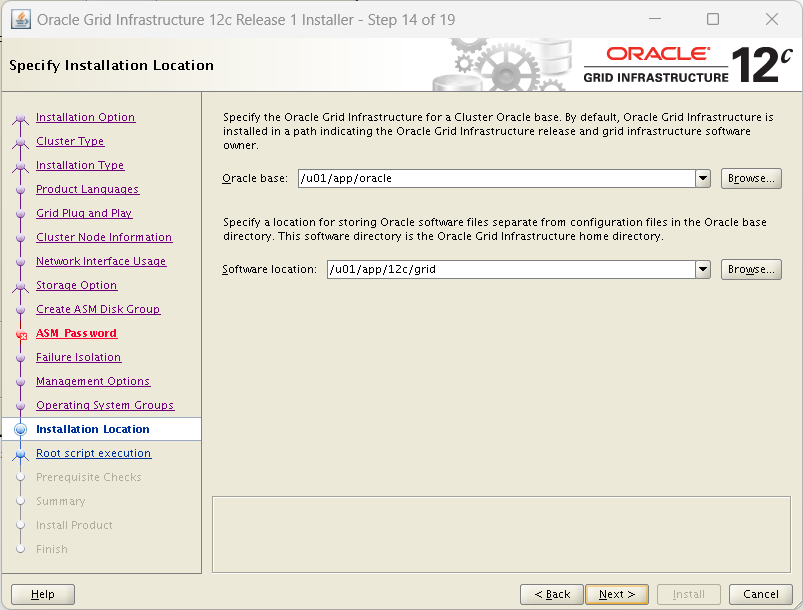

ORACLE_BASE와

GRID_HOME 경로 확인

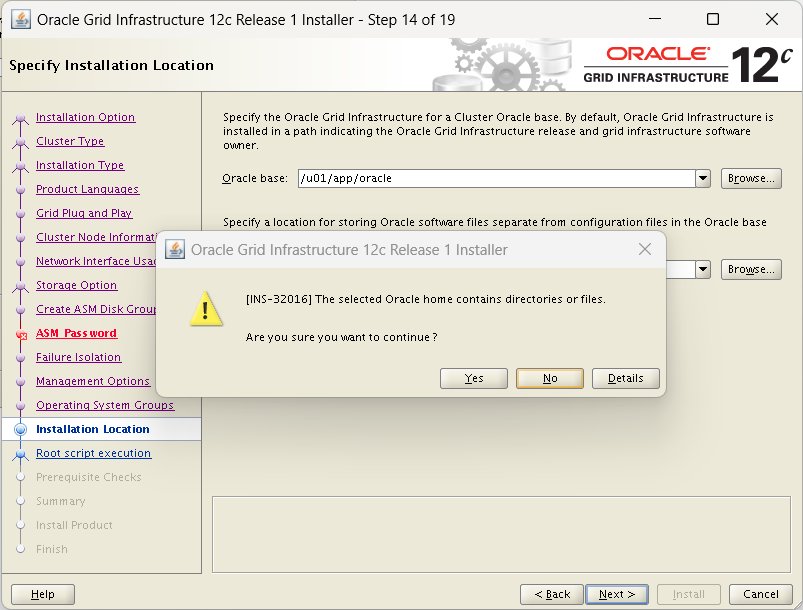

해당 경로에 이미 파일이 존재하는데 ㄱㅊ? > ㅇㅇ YES

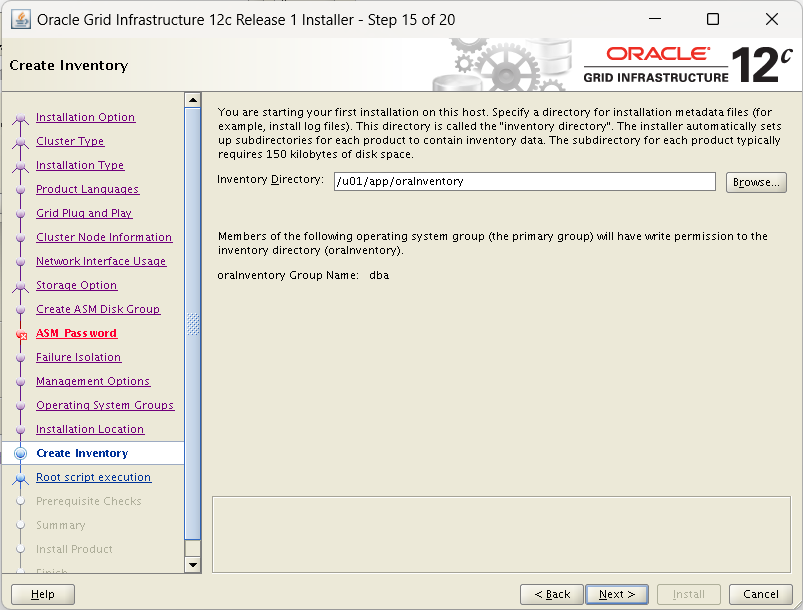

oraInventory 경로 확인

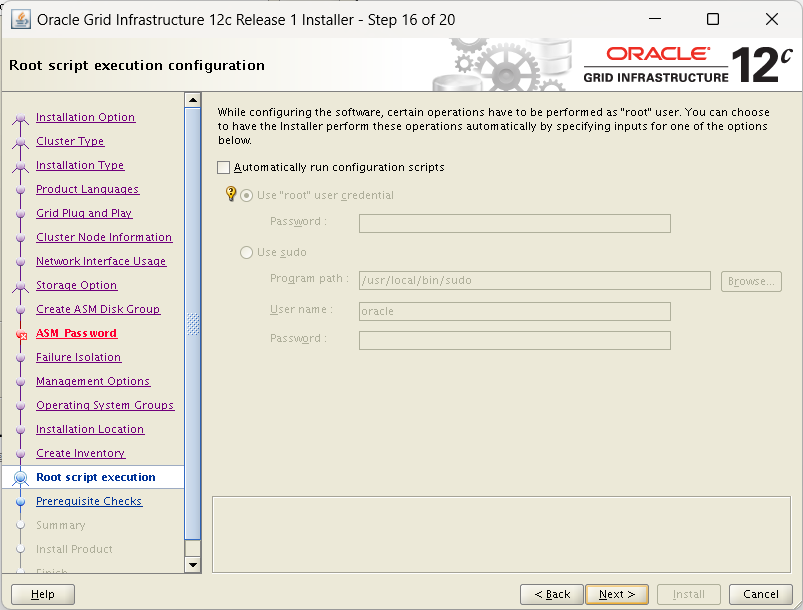

설치 시 root script를 자동으로 돌릴까? ㄴㄴ 수동으로 하겠음

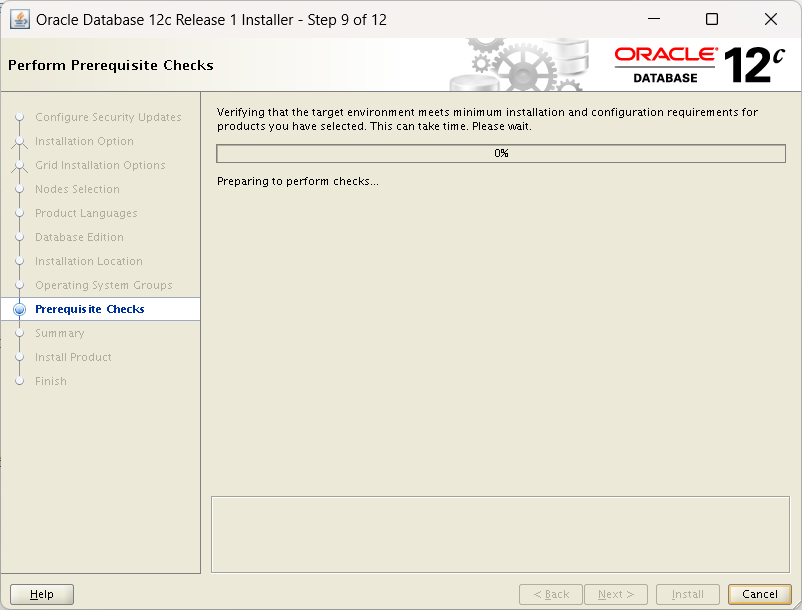

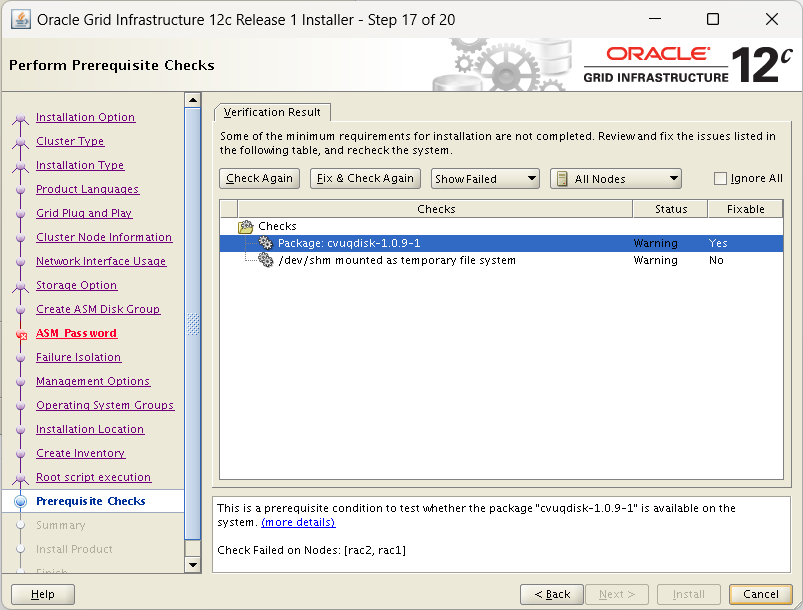

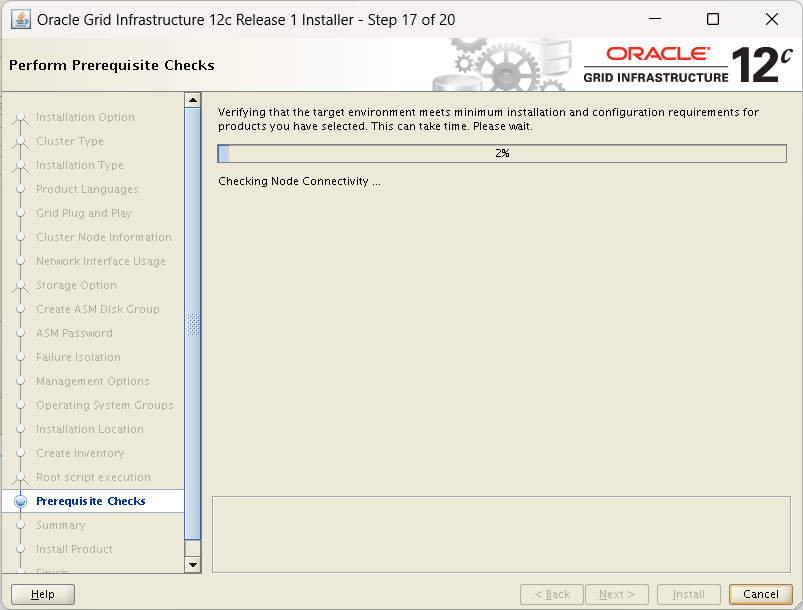

설치 가능 조건 검사 진행

1) cvuqdisk rpm package 없다 -> 추후 $GRID_HOME/cv/rpm에서 설치 가능 (Ignore)

2) PRVE-0426 -> /dev/shm is "8388608k" megabytes which is less than the required size of "2048" megabytes on node

-> root 계정으로 rac1, rac2 모두 진행함

[rac2|root:/root]> df -h
Filesystem           Size  Used Avail Use% Mounted on
devtmpfs             4.9G     0  4.9G   0% /dev
tmpfs                8.0G     0  8.0G   0% /dev/shm

[rac2|root:/root]> vi /etc/fstab
tmpfs                   /dev/shm                tmpfs   defaults,size=8g         0 0

[rac2|root:/root]> mount -o remount /dev/shm

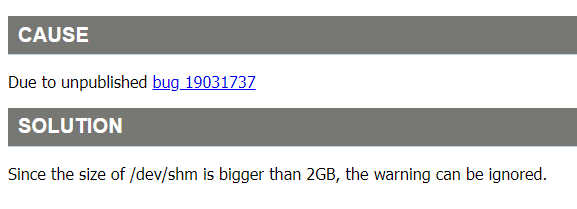

찾아보니 버그랜다 ..!!!!!!! docs 1918620.1

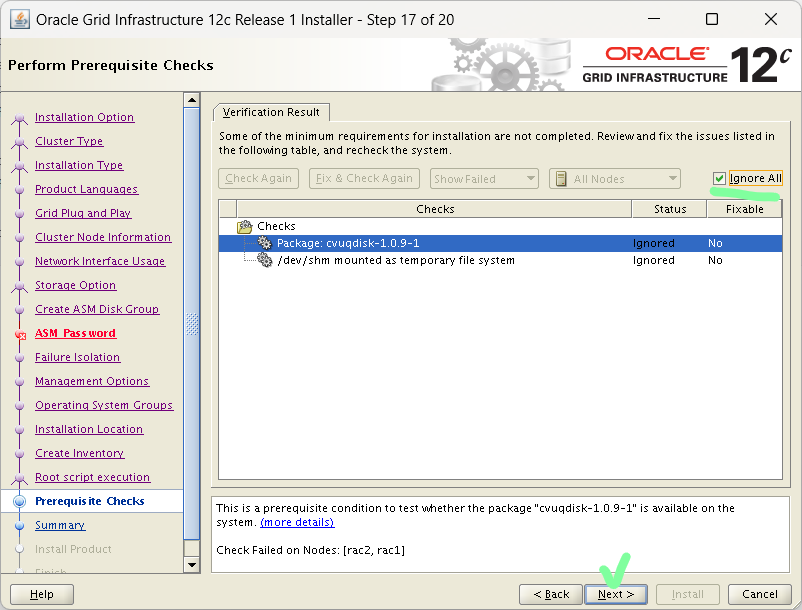

Ignore all 후 진행

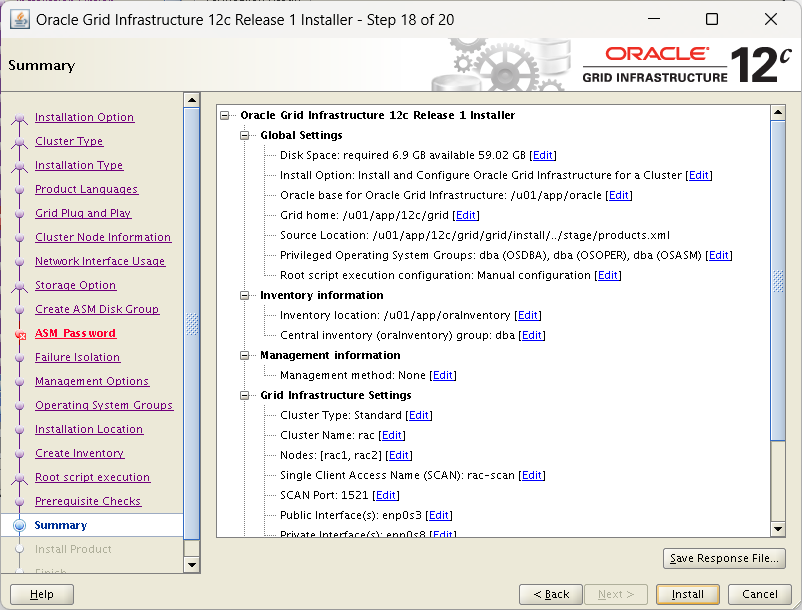

요약 -> Install

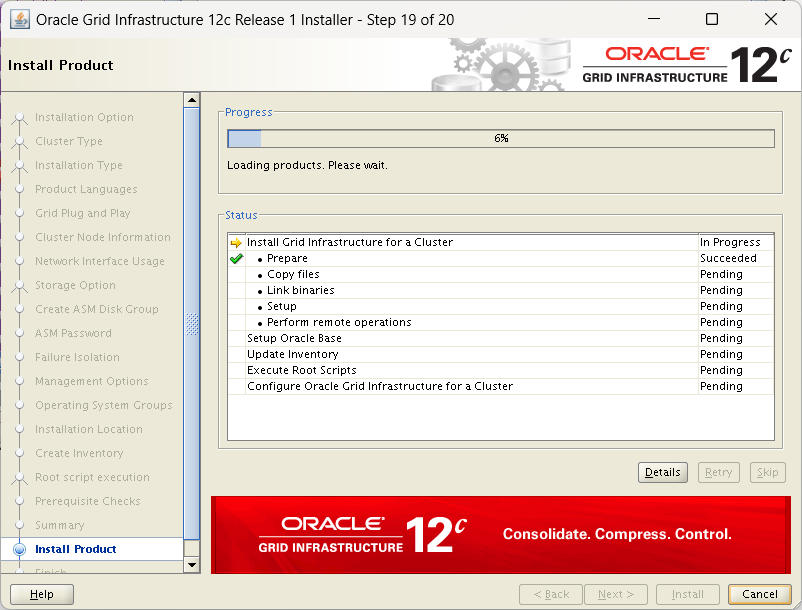

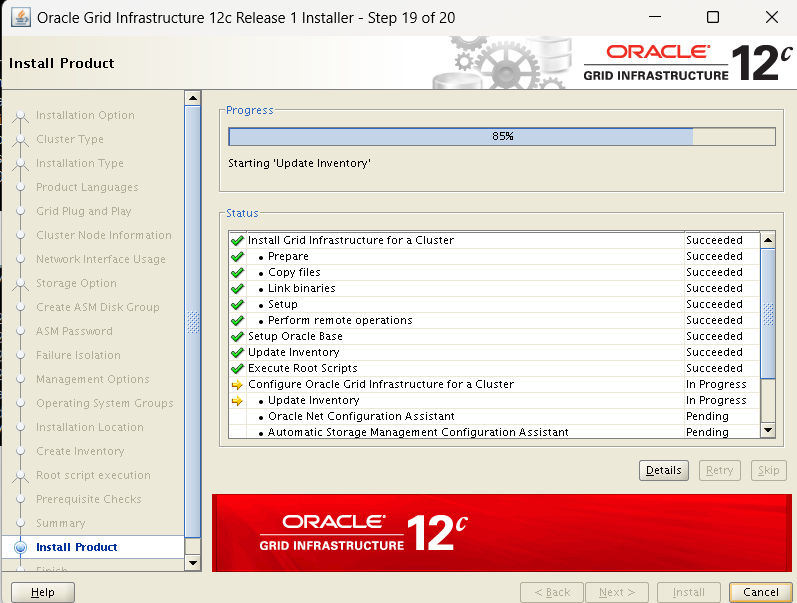

설치 진행중

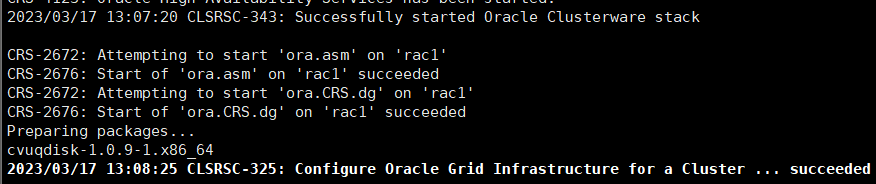

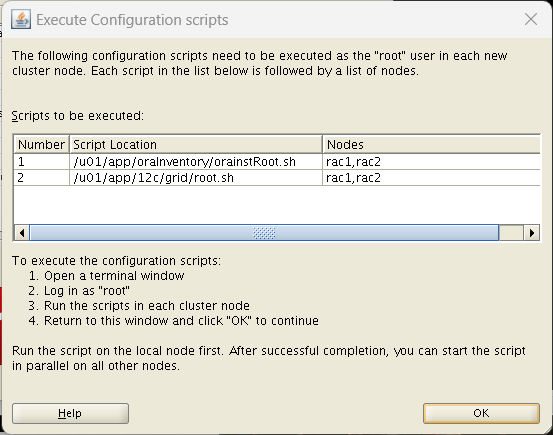

root 계정으로 스크립트 실행 -> rac1, rac2 순서대로 돌려야함.

~~~~

~~~~

다되면 오케이 누르기

마저진행중

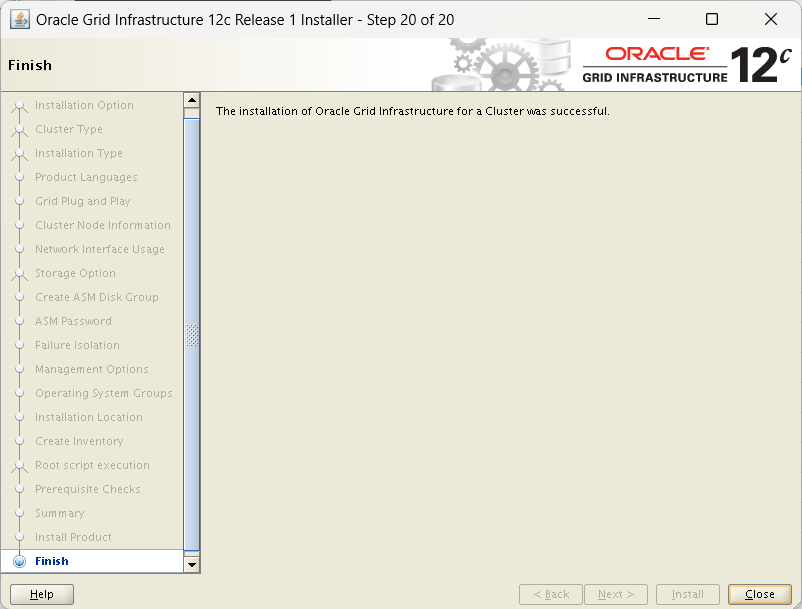

gi 설치 완료

[rac1|root:/u01/app/12c/grid/grid]> crsctl status res -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.CRS.dg
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.LISTENER.lsnr
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.asm
               ONLINE  ONLINE       rac1                     Started,STABLE
               ONLINE  ONLINE       rac2                     Started,STABLE
ora.net1.network
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.ons
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.LISTENER_SCAN1.lsnr
      1        ONLINE  ONLINE       rac2                     STABLE
ora.LISTENER_SCAN2.lsnr
      1        ONLINE  ONLINE       rac1                     STABLE
ora.LISTENER_SCAN3.lsnr
      1        ONLINE  ONLINE       rac1                     STABLE
ora.MGMTLSNR
      1        ONLINE  ONLINE       rac1                     169.254.206.62 10.0.
                                                             5.101,STABLE
ora.cvu
      1        ONLINE  ONLINE       rac1                     STABLE
ora.mgmtdb
      1        ONLINE  ONLINE       rac1                     Open,STABLE
ora.oc4j
      1        ONLINE  ONLINE       rac1                     STABLE
ora.rac1.vip
      1        ONLINE  ONLINE       rac1                     STABLE
ora.rac2.vip
      1        ONLINE  ONLINE       rac2                     STABLE
ora.scan1.vip
      1        ONLINE  ONLINE       rac2                     STABLE
ora.scan2.vip
      1        ONLINE  ONLINE       rac1                     STABLE
ora.scan3.vip
      1        ONLINE  ONLINE       rac1                     STABLE
--------------------------------------------------------------------------------

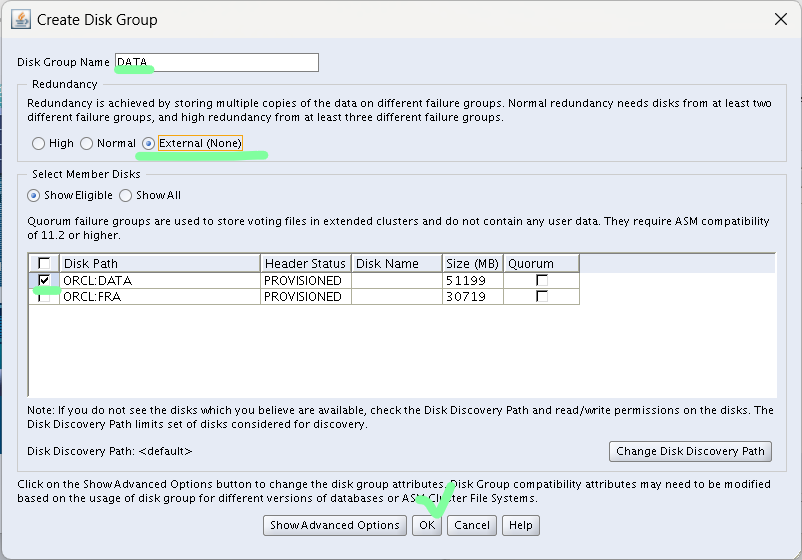

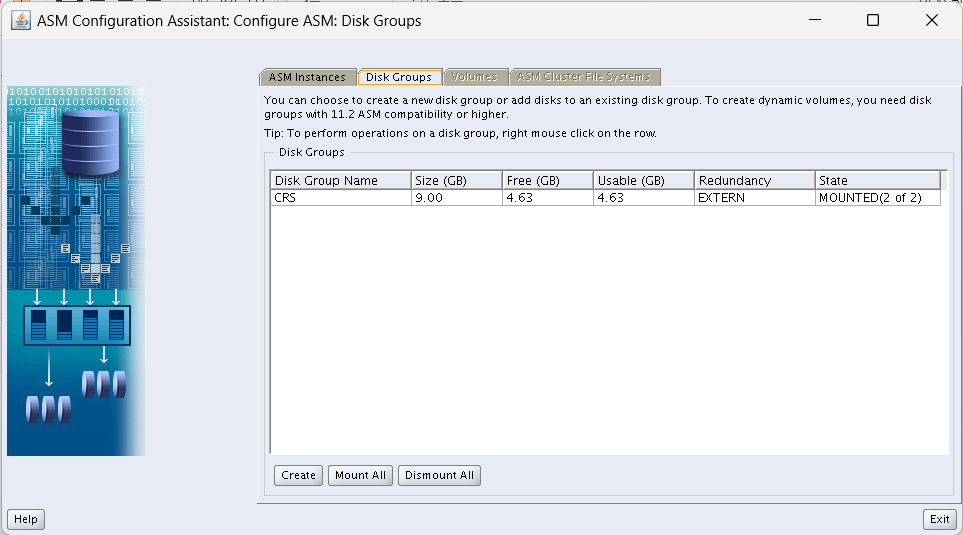

ASM 디스크 그룹 추가

[+ASM|oracle:/home/oracle]> asmca

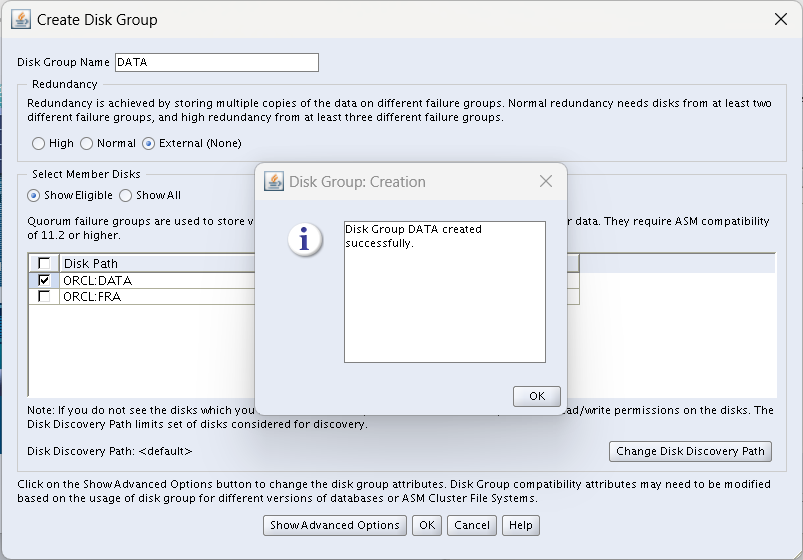

하단 Create

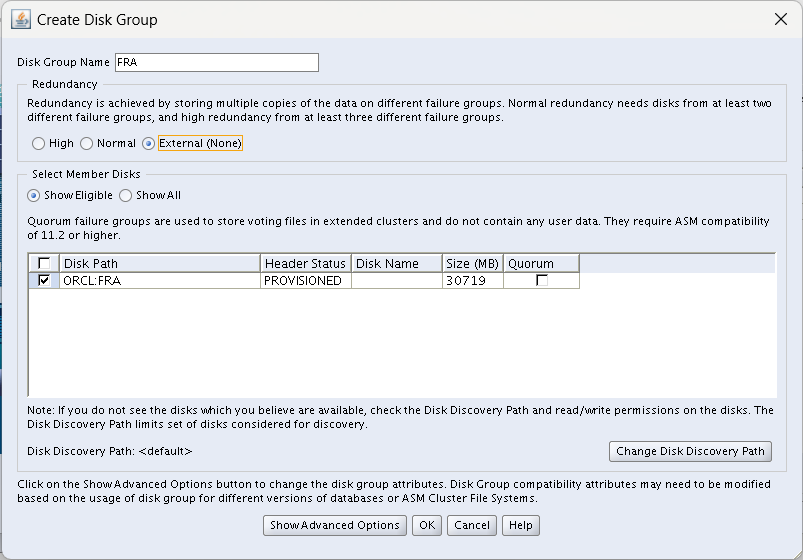

FRA도 생성

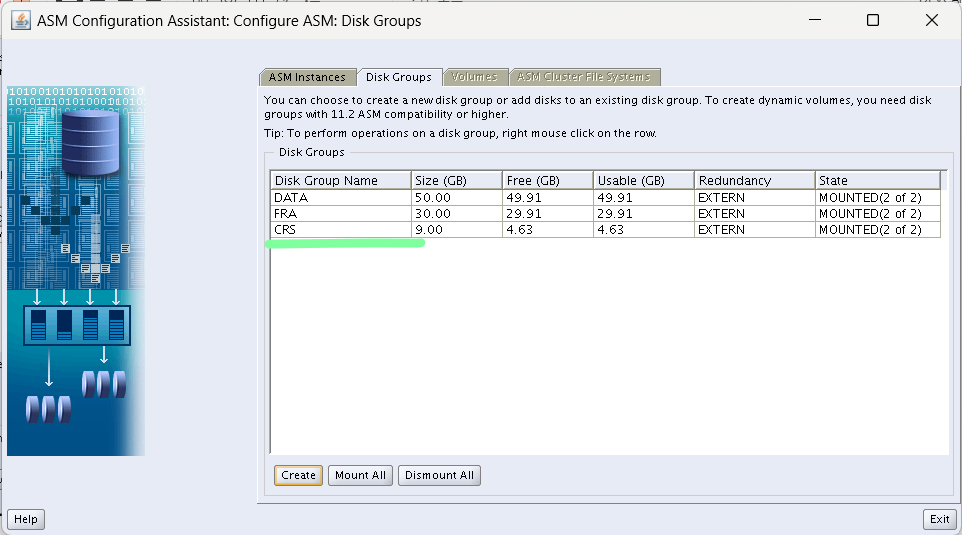

생성 확인

[+ASM|oracle:/home/oracle]> crsctl stat res -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.CRS.dg
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.DATA.dg
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.FRA.dg
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE



Database  엔진 설치

1) media파일 압축해제

# OS user oracle로 접속
[rac1|oracle:/home/oracle]> cd /u01/media/engine/12c/db/
[rac1|oracle:/u01/media/engine/12c/db]> ls -al
total 2625080
drwxr-xr-x. 2 oracle dba         60 Mar 17 10:28 .
drwxrwxr-x. 4 oracle dba         28 Mar 17 09:27 ..
-rw-r--r--. 1 oracle dba 1673544724 Mar 17 10:28 12cR1_db_home_1.zip
-rw-r--r--. 1 oracle dba 1014530602 Mar 17 10:28 12cR1_db_home_2.zip

# ORACLE_HOME에 압축해제
[rac1|oracle:/u01/media/engine/12c/db]> unzip 12cR1_db_home_1.zip -d $ORACLE_HOME
[rac1|oracle:/u01/media/engine/12c/db]> unzip 12cR1_db_home_2.zip -d $ORACLE_HOME

[rac1|oracle:/u01/media/engine/12c/db]> cd $ORACLE_HOME
[rac1|oracle:/u01/app/oracle/product/12c/db_1]> ls -al
total 4
drwxr-xr-x. 3 oracle dba   22 Mar 17 14:17 .
drwxr-xr-x. 3 oracle dba   18 Mar 17 09:40 ..
drwxr-xr-x. 7 oracle dba 4096 Jul  7  2014 database
[rac1|oracle:/u01/app/oracle/product/12c/db_1]> cd database/
[rac1|oracle:/u01/app/oracle/product/12c/db_1/database]> ls -al
total 28
drwxr-xr-x.  7 oracle dba 4096 Jul  7  2014 .
drwxr-xr-x.  3 oracle dba   22 Mar 17 14:17 ..
drwxr-xr-x.  4 oracle dba 4096 Mar 17 14:18 install
drwxrwxr-x.  2 oracle dba   61 Jul  7  2014 response
drwxr-xr-x.  2 oracle dba   34 Jul  7  2014 rpm
-rwxr-xr-x.  1 oracle dba 8533 Jul  7  2014 runInstaller
drwxrwxr-x.  2 oracle dba   29 Jul  7  2014 sshsetup
drwxr-xr-x. 14 oracle dba 4096 Jul  7  2014 stage
-rwxr-xr-x.  1 oracle dba  500 Feb  7  2013 welcome.html
[rac1|oracle:/u01/app/oracle/product/12c/db_1/database]> ./runInstaller
Starting Oracle Universal Installer...

Checking Temp space: must be greater than 500 MB.   Actual 37727 MB    Passed
Checking swap space: must be greater than 150 MB.   Actual 10236 MB    Passed
Checking monitor: must be configured to display at least 256 colors.    Actual 16777216    Passed
Preparing to launch Oracle Universal Installer from /tmp/OraInstall2023-03-17_02-19-37PM.



2. GUI로 엔진 설치

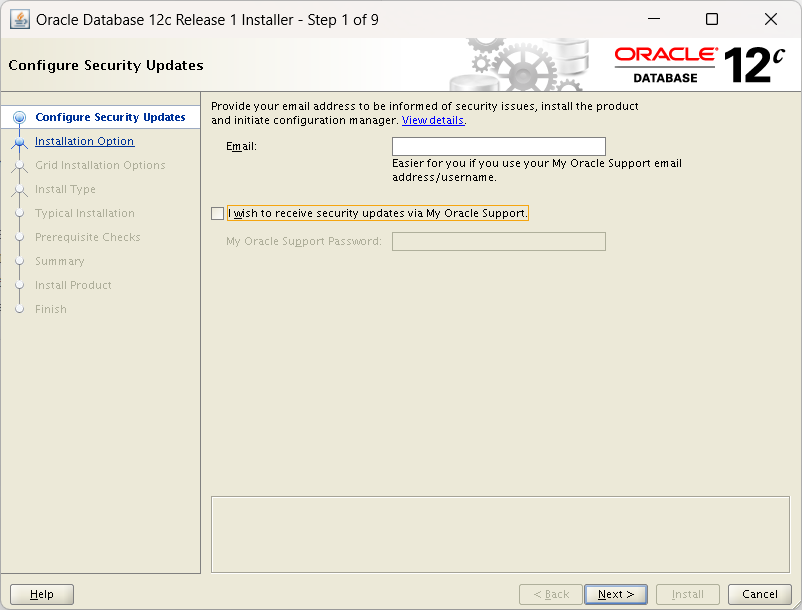

소프트웨어 및 패치세트(PSU) 및 기타 권장 패치에 대해 갱신할것인지 -> X

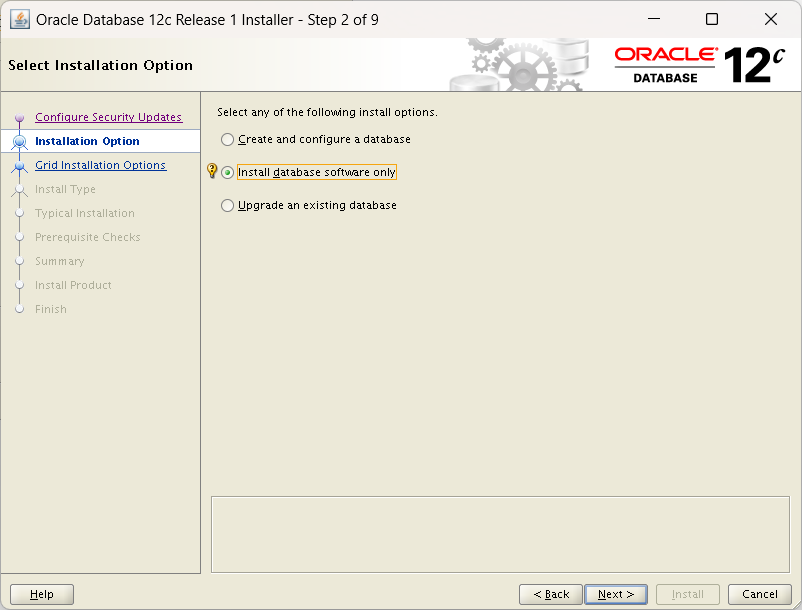

1) 소프트웨어 설치 후 database 생성까지

2) 소프트웨어만 설치

3) 데이터베이스 업그레이드

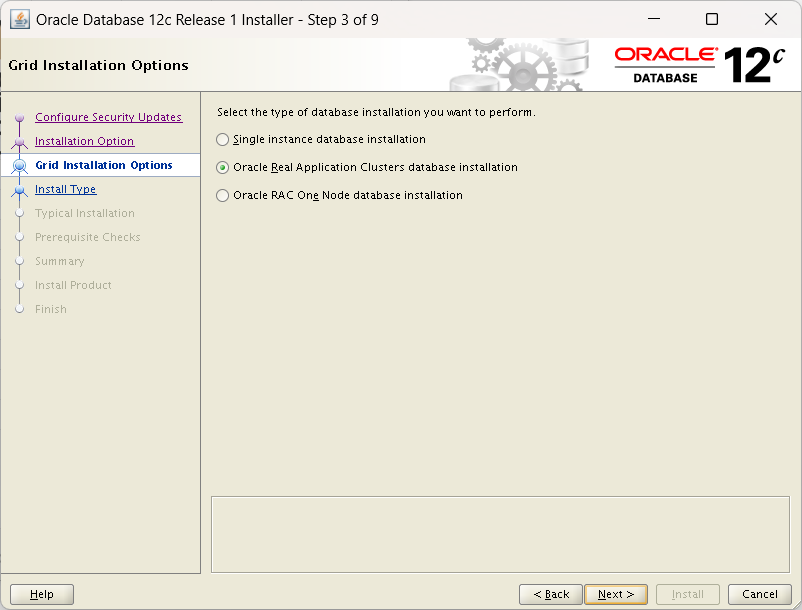

1) 단일 인스턴스 설치

2) RAC 설치

3) RAC의 한 node만 설치

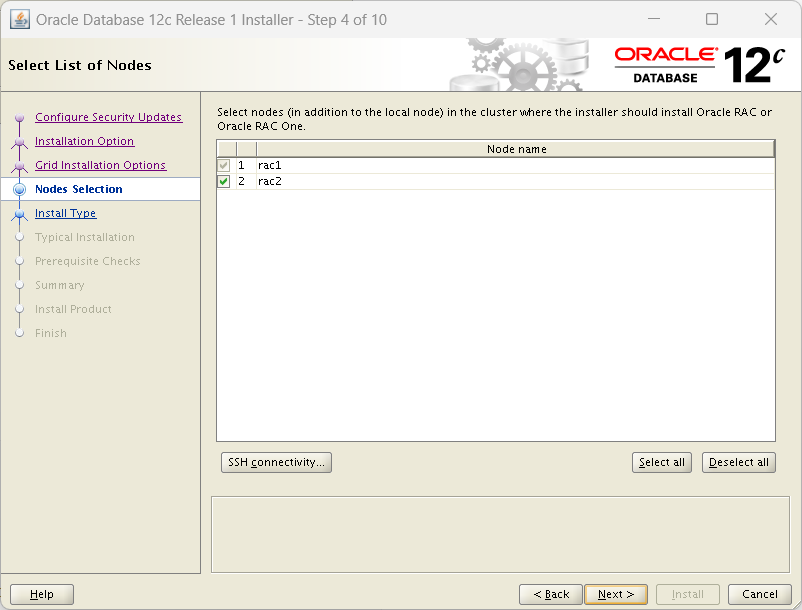

설치 노드 선택

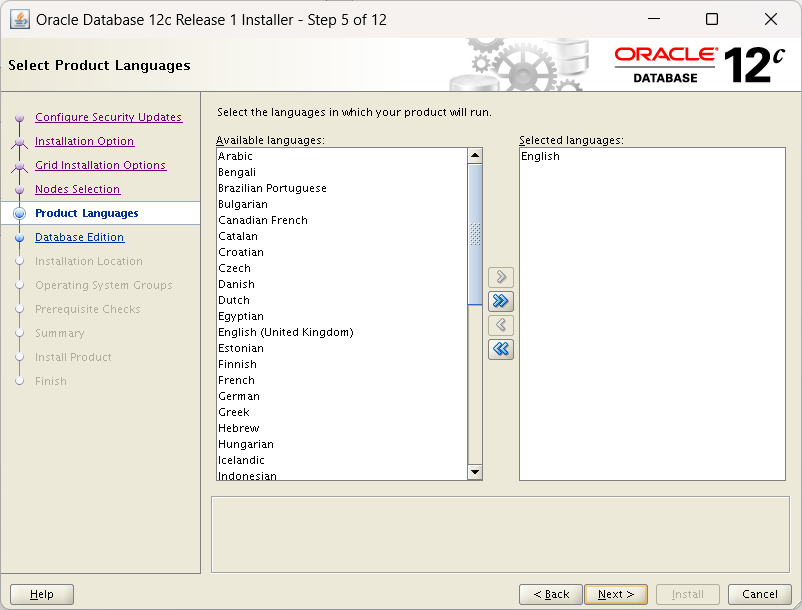

영어만

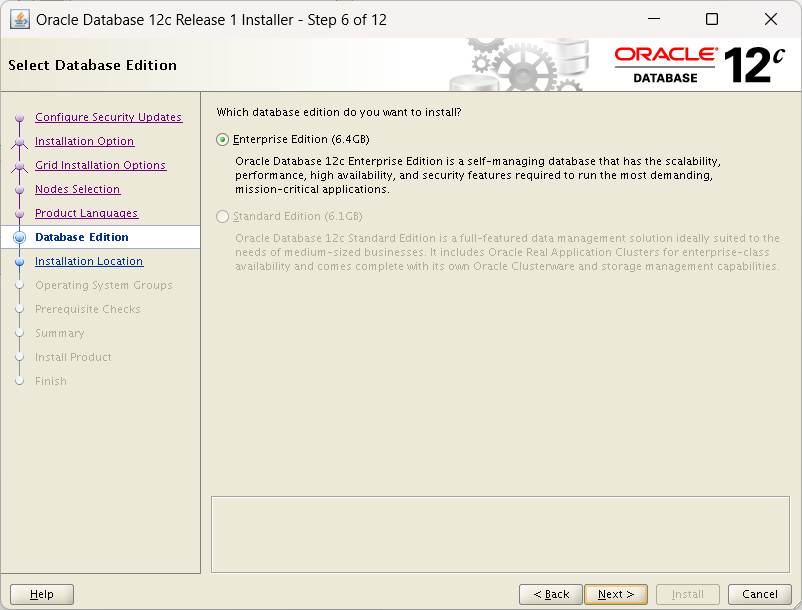

오라클 에디션 선택

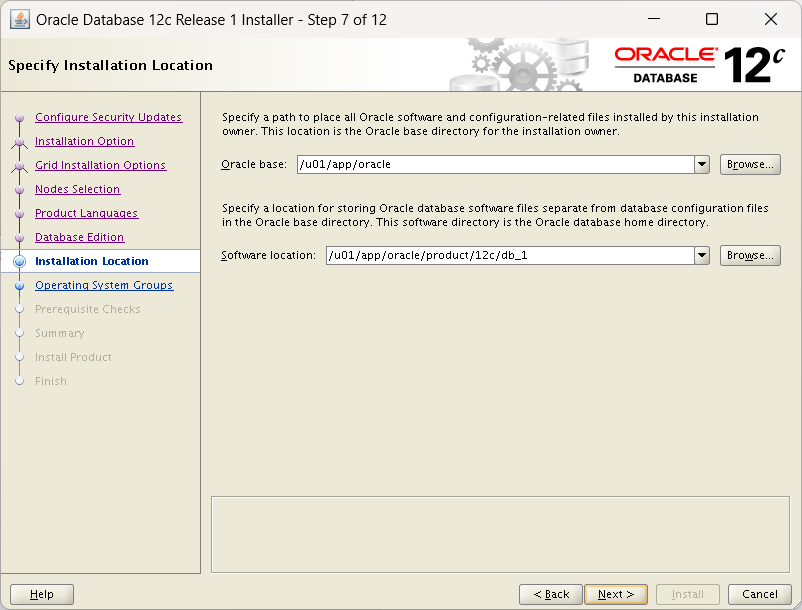

ORACLE_BASE 및 ORACLE_HOME 지정

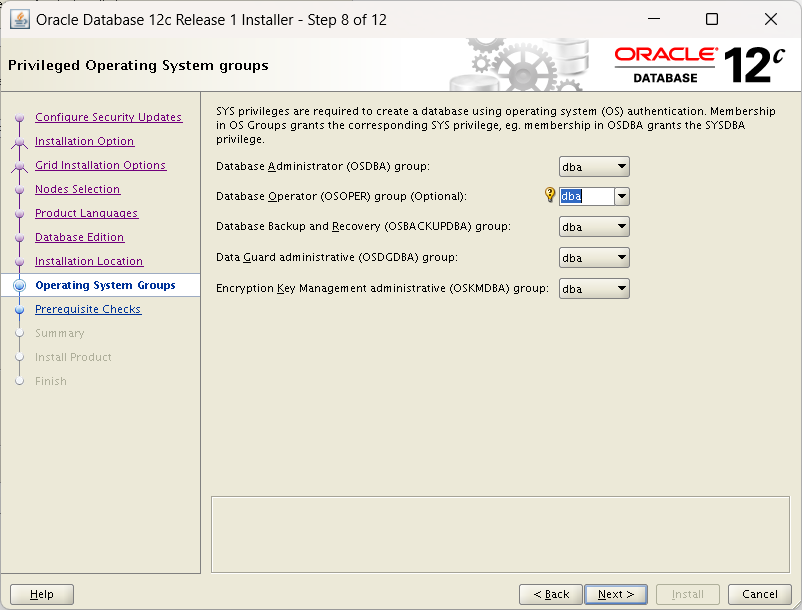

DATABASE SOFTWARE ENGINE 관리 그룹 선택

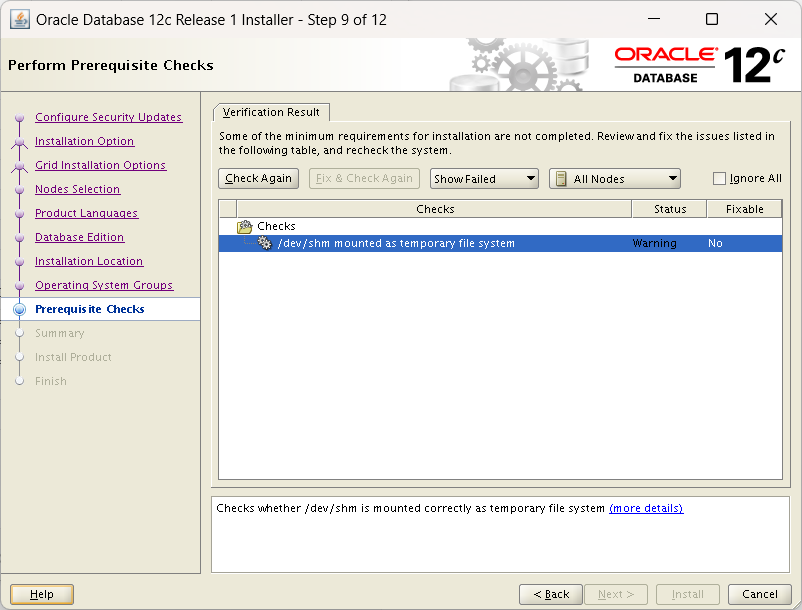

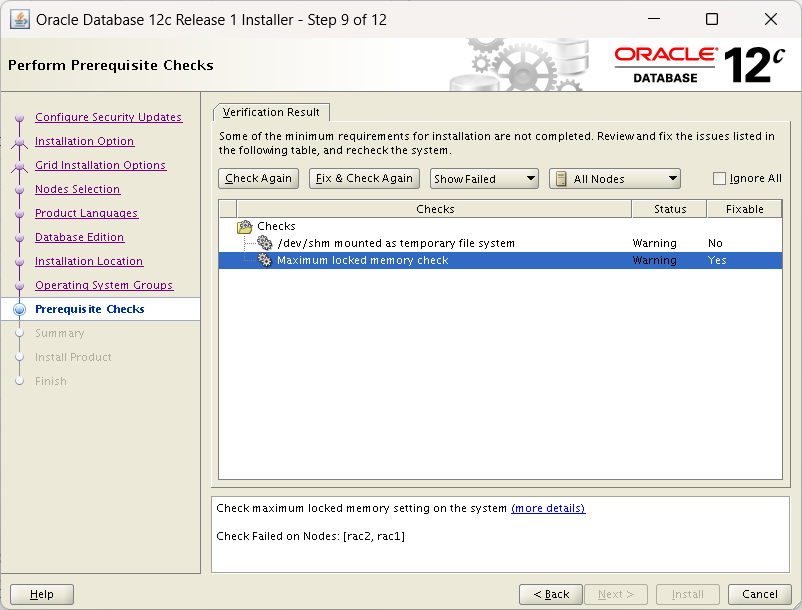

설치 전제 조건 체크

1. /dev/shm mounted as temporary file system 는 무시 가능 (GI와 같은 버그)

2. Maximum locked memory check (PRVE-0044)

아래 과정 rac1, rac2 모든 노드에서 진

[rac1|root:/u01/media/engine/12c/grid]> vi /etc/security/limits.conf

# 아래 두줄 추가
oracle soft memlock unlimited
oracle hard memlock unlimited

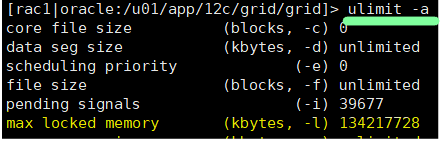

# 확인
[rac1|root:/u01/media/engine/12c/grid]> ulimit -a
~
max locked memory       (kbytes, -l) 64
~

Check Again

사라졌다

Ignore All 후 Install

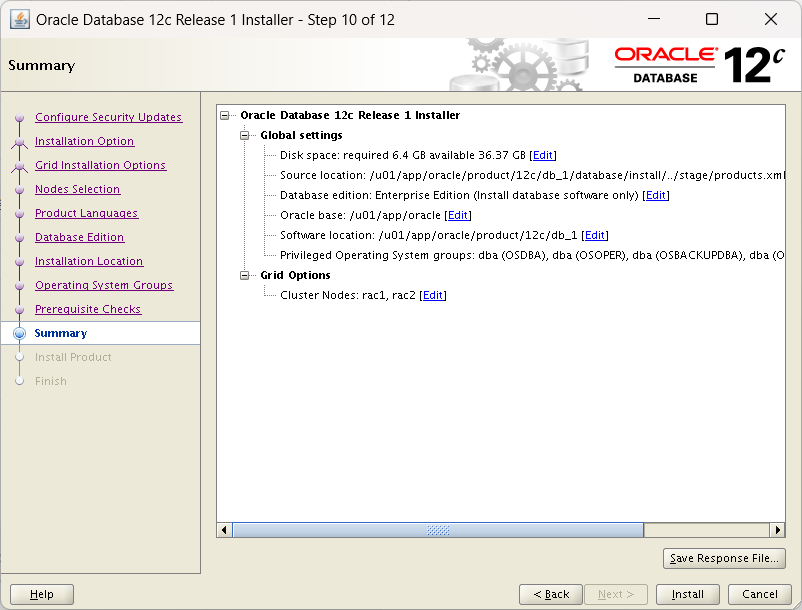

요약 > Install

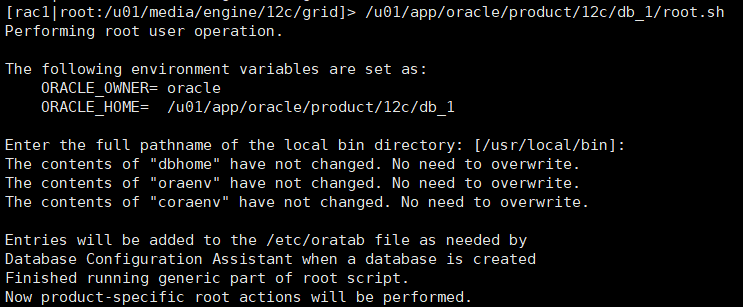

돌려돌려 루트쉘~

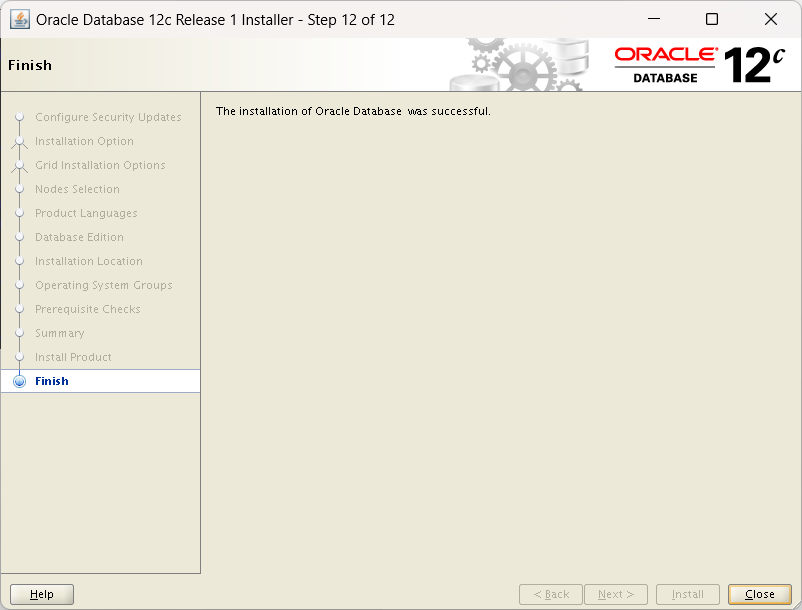

끗

Database Configuration Assistant (Database 생성)

[rac1|oracle:/u01/app/oracle/product/12c/db_1]> dbca

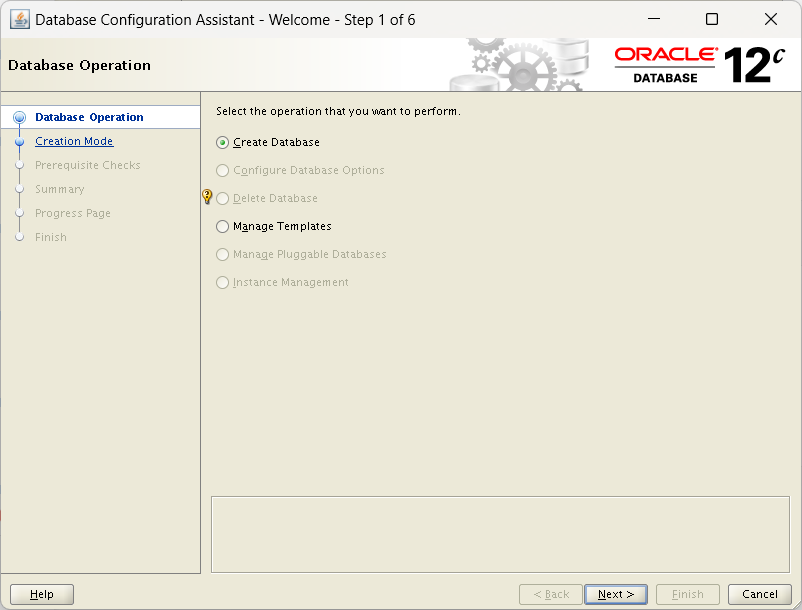

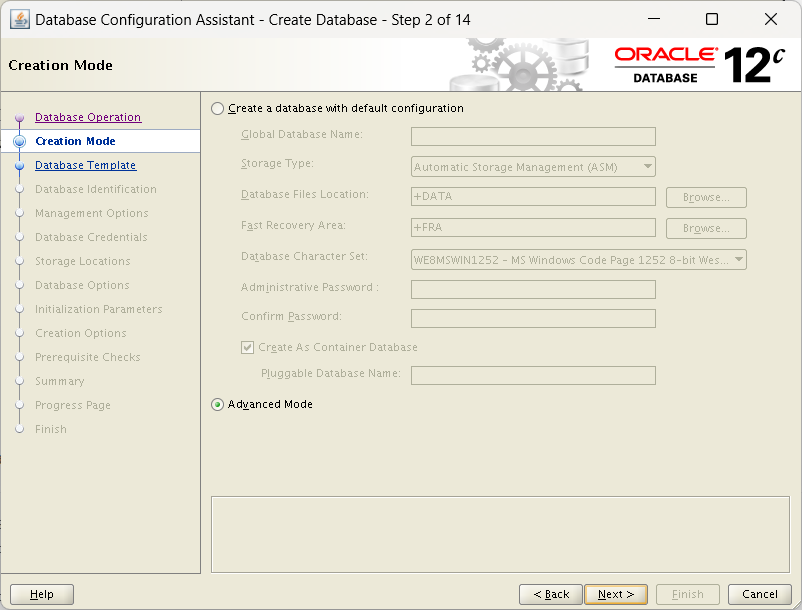

Database 생성

1) 일반 설치

2) 상세 설정 적용 설치

구성 타입 : Admin-Managed

Custom Database 선택 후 Next (데이터베이스 환경을 따로 선택)

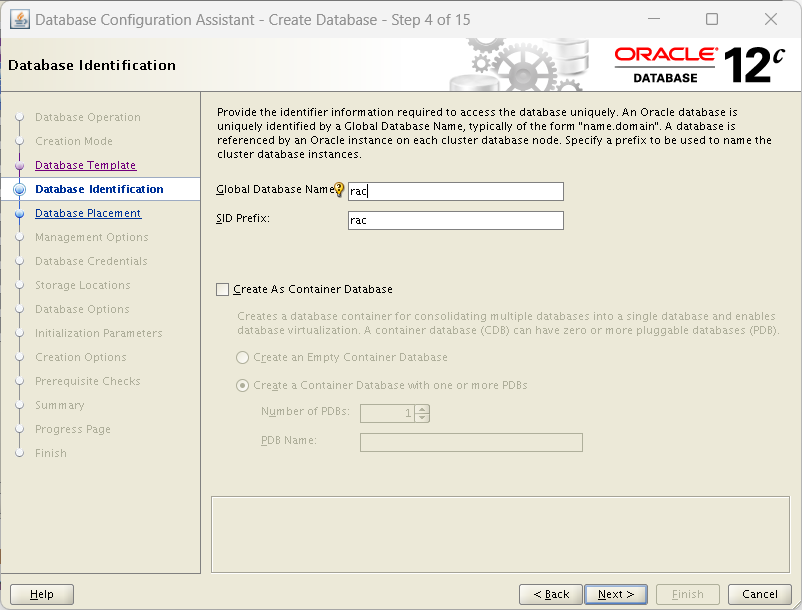

ORACLE_SID

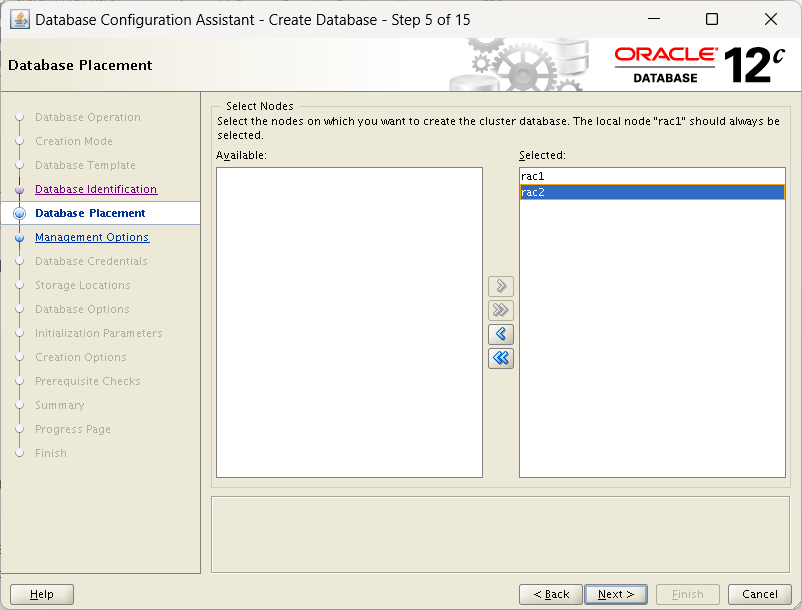

RAC 구성에 사용되는 NODE 선택

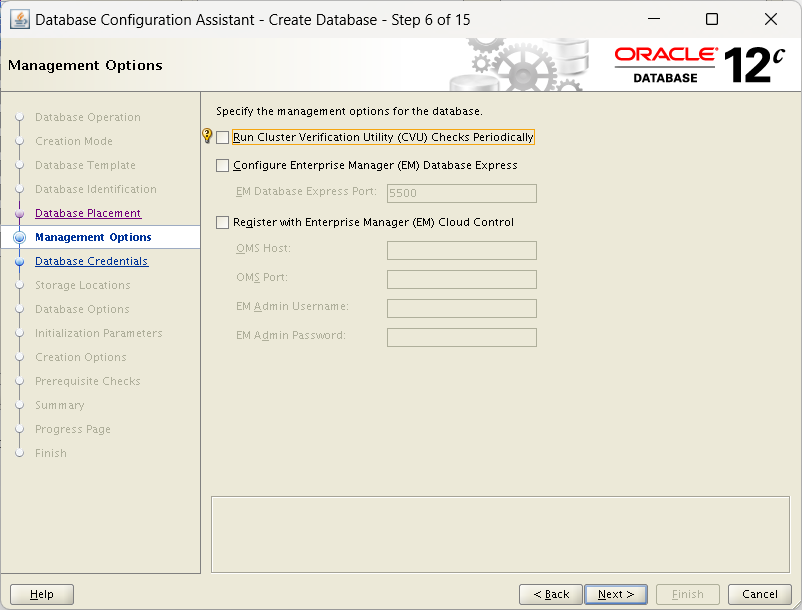

EM 사용 안함

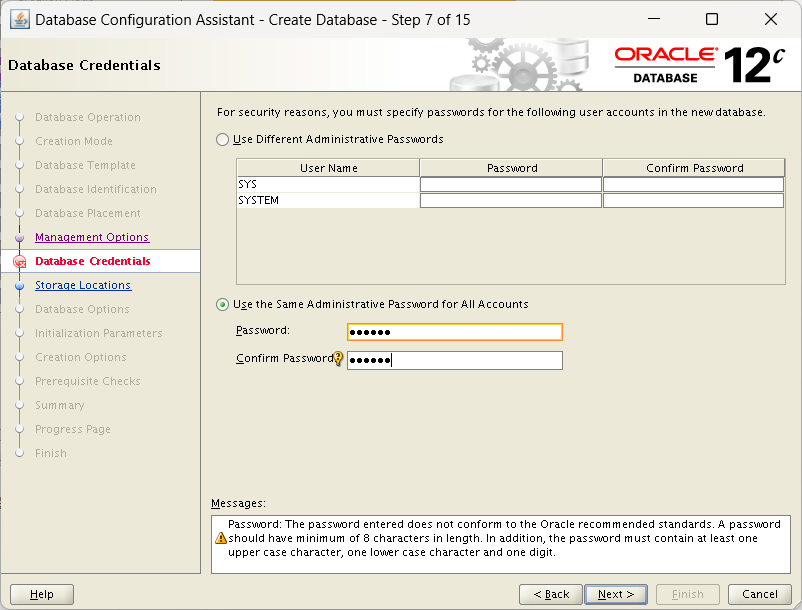

oracle database의 SYS, SYSTEM 계정의 비밀번호 설정 (동일하게)

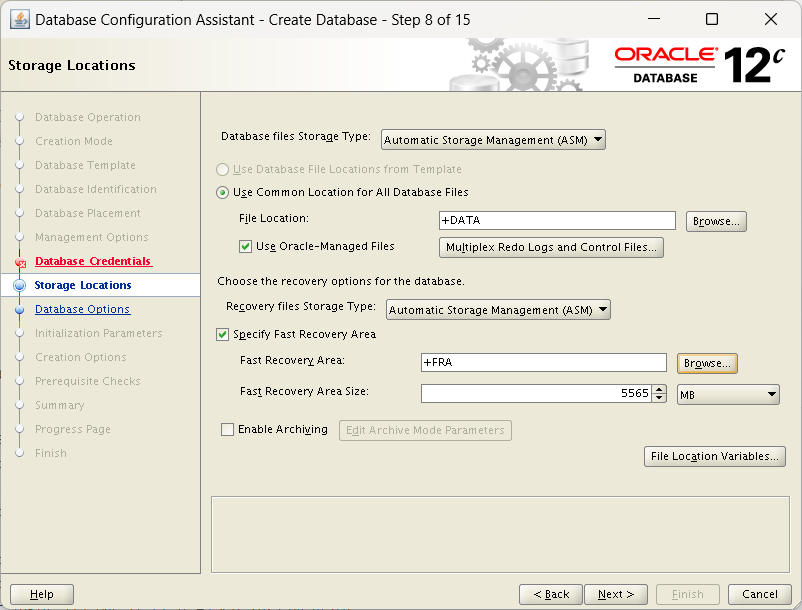

Database File Storage Type : ASM

Data File 저장 위치 : +DATA

Fast Recovery Area 위치 : +FRA

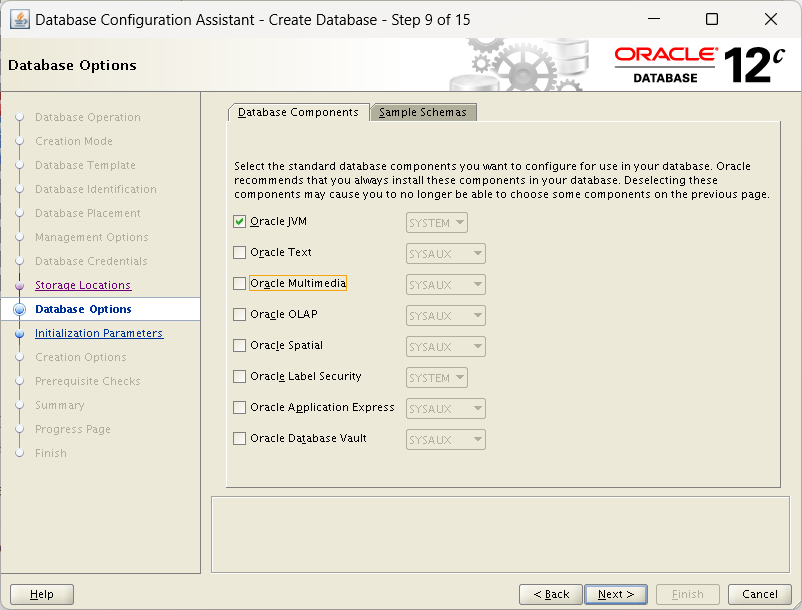

Oracle Components : 선택안함 / Sample Schemas : 설치안함

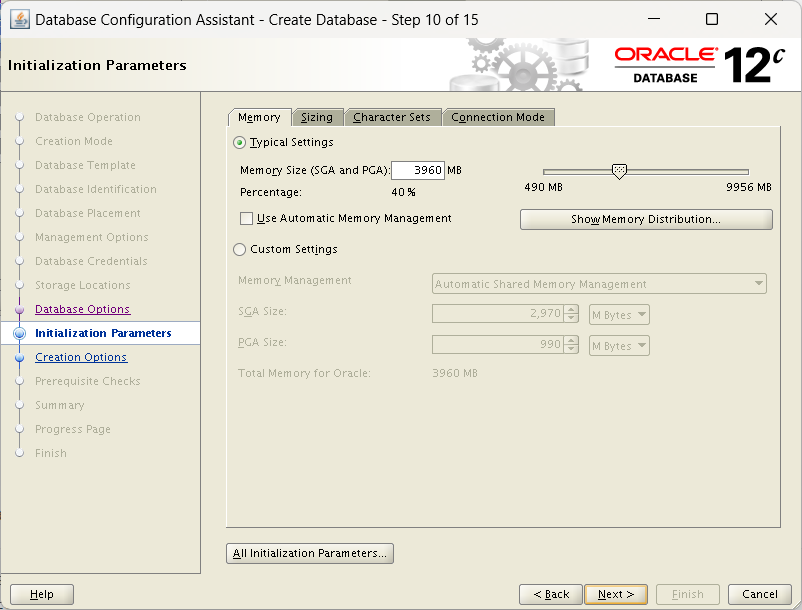

메모리 설정 (default로 함)

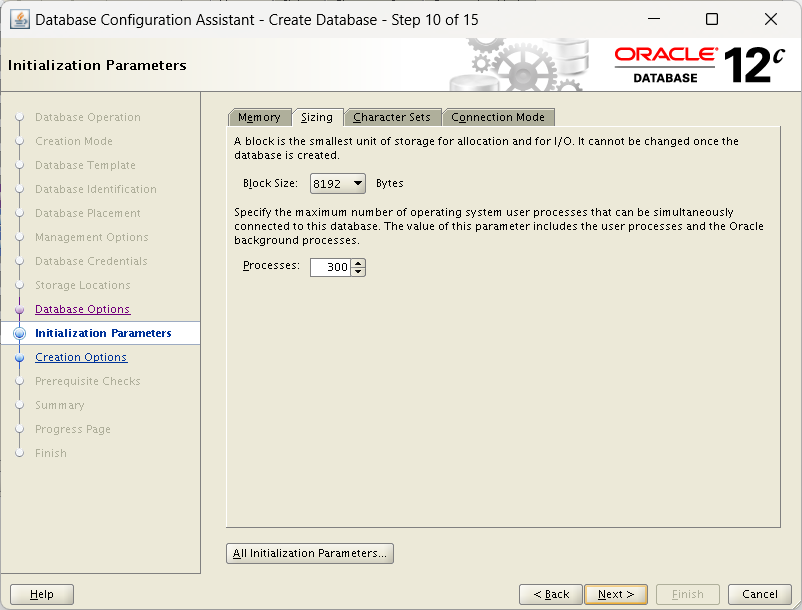

block 크기 & Process 지정

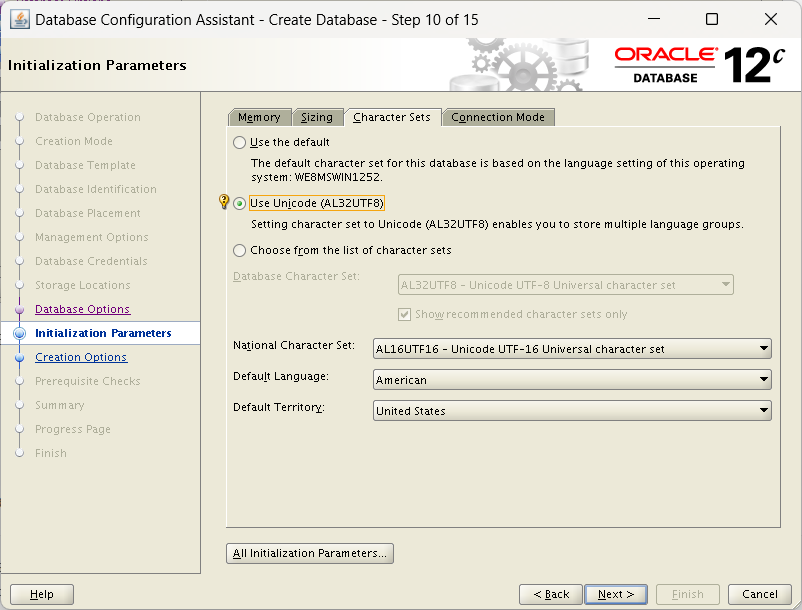

캐릭터셋 설정 *(추후에 바꿀 수 없으니 신중히 선택) // 바꿀 순 있으나 데이터가 다 깨져버리는 수가 있음.. 안하길 권고

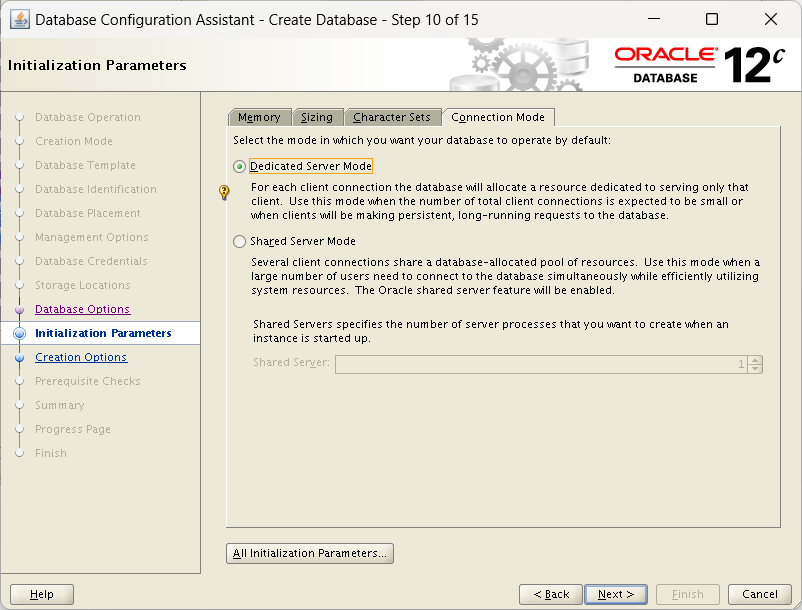

전용서버모드

> 이와 관련한 글.. 제 블로그 글에 있음다. (architecture)

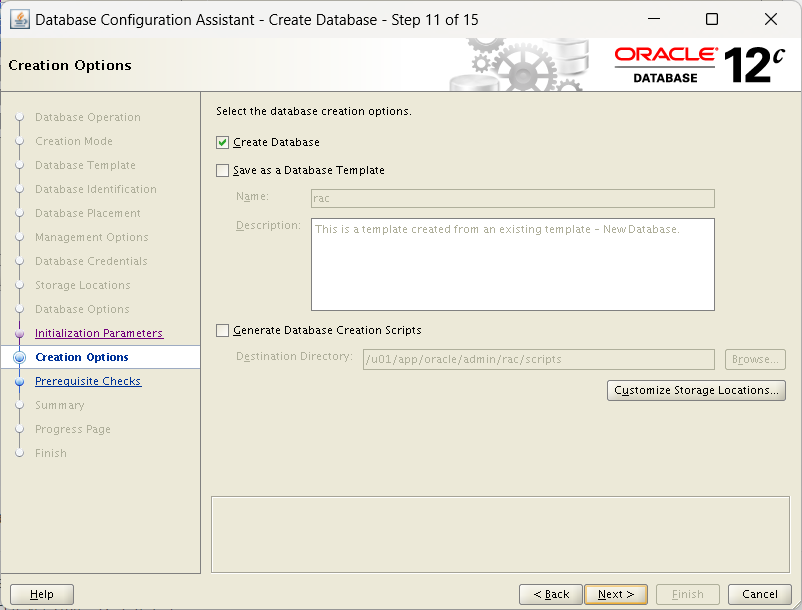

1) database 생성

2) database 템플릿으로 저장

3) database 생성 스크립트 만들기

하단 Customize Storage Locations 선택 시 Datafile 및 control, redo 등 파일을 원하는 경로로 지정할 수 있음

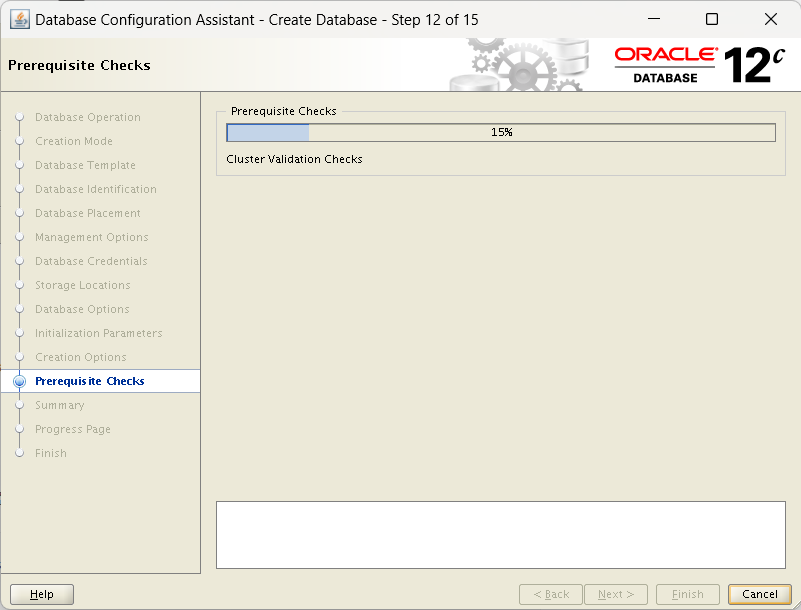

생성 전제 조건 검사

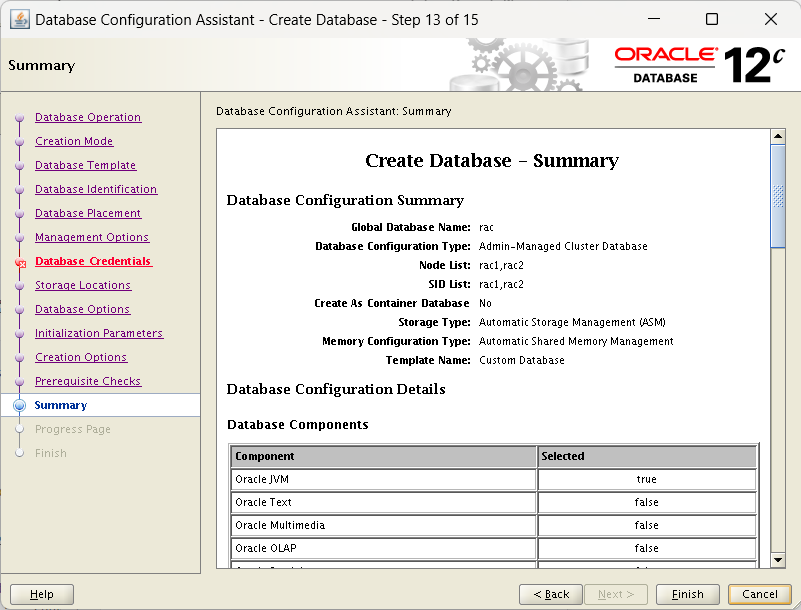

생성 정보 요약 > Finish

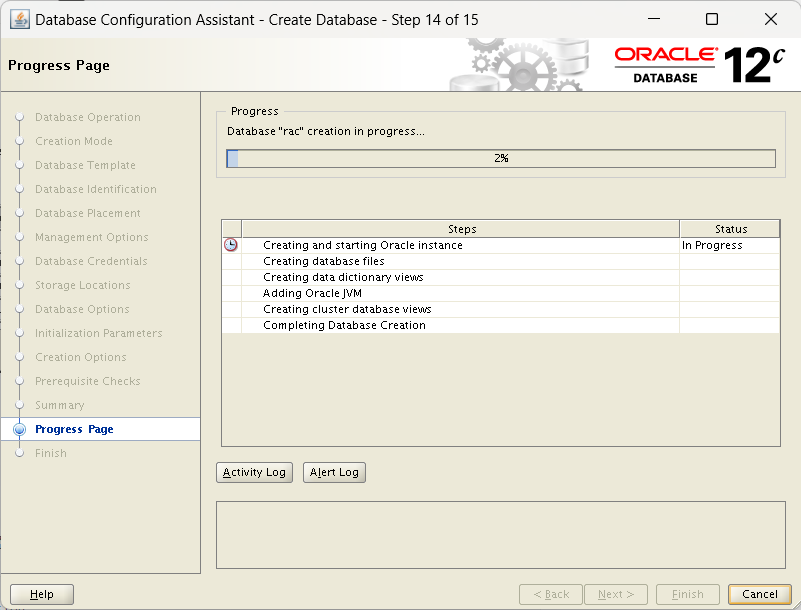

생성 레스고

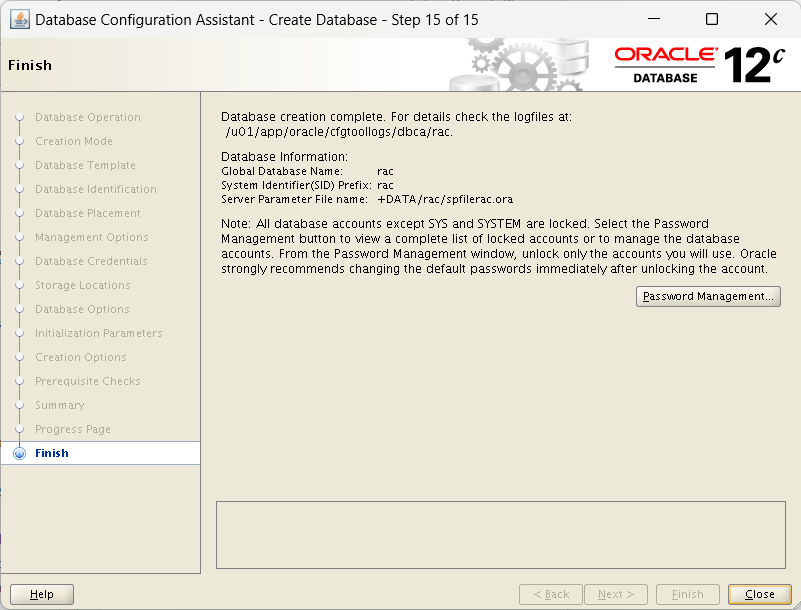

생성완료

확인

1) crs

# 두 노드 모두 잘 되는지 진행
[rac1|root:/root]> crsctl stop crs
[rac1|root:/root]> crsctl start crs

[rac2|root:/root]> crsctl stop crs
[rac2|root:/root]> crsctl start crs


[rac1|root:/root]> crsctl stat res -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.CRS.dg
               ONLINE  ONLINE       rac1                     STABLE
ora.DATA.dg
               ONLINE  ONLINE       rac1                     STABLE
ora.FRA.dg
               ONLINE  ONLINE       rac1                     STABLE
ora.LISTENER.lsnr
               ONLINE  ONLINE       rac1                     STABLE
ora.asm
               ONLINE  ONLINE       rac1                     Started,STABLE
ora.net1.network
               ONLINE  ONLINE       rac1                     STABLE
ora.ons
               ONLINE  ONLINE       rac1                     STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.LISTENER_SCAN1.lsnr
      1        ONLINE  ONLINE       rac1                     STABLE
ora.LISTENER_SCAN2.lsnr
      1        ONLINE  ONLINE       rac1                     STABLE
ora.LISTENER_SCAN3.lsnr
      1        ONLINE  ONLINE       rac1                     STABLE
ora.MGMTLSNR
      1        ONLINE  ONLINE       rac1                     169.254.206.62 10.0.
                                                             5.101,STABLE
ora.cvu
      1        ONLINE  ONLINE       rac1                     STABLE
ora.mgmtdb
      1        ONLINE  OFFLINE      rac1                     STARTING
ora.oc4j
      1        ONLINE  OFFLINE      rac1                     STARTING
ora.rac.db
      1        ONLINE  OFFLINE      rac1                     Instance Shutdown,ST
                                                             ARTING
      2        ONLINE  OFFLINE                               STABLE
ora.rac1.vip
      1        ONLINE  ONLINE       rac1                     STABLE
ora.rac2.vip
      1        ONLINE  INTERMEDIATE rac1                     FAILED OVER,STABLE
ora.scan1.vip
      1        ONLINE  ONLINE       rac1                     STABLE
ora.scan2.vip
      1        ONLINE  ONLINE       rac1                     STABLE
ora.scan3.vip
      1        ONLINE  ONLINE       rac1                     STABLE
--------------------------------------------------------------------------------

2) Database

# 1번 노드
[rac1|oracle:/home/oracle]> ss

SQL*Plus: Release 12.1.0.2.0 Production on Fri Mar 17 15:12:58 2023

Copyright (c) 1982, 2014, Oracle.  All rights reserved.


Connected to:
Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production
With the Partitioning, Real Application Clusters, Automatic Storage Management, OLAP,
Advanced Analytics and Real Application Testing options

SQL> show parameter db_name

NAME				     TYPE	 VALUE
------------------------------------ ----------- ------------------------------
db_name 			     string	 rac
SQL> select instance_name, status from v$instance ;

INSTANCE_NAME	 STATUS
---------------- ------------
rac1		 OPEN


# 2번 노드
[rac2|oracle:/home/oracle]> ss

SQL*Plus: Release 12.1.0.2.0 Production on Fri Mar 17 15:12:11 2023

Copyright (c) 1982, 2014, Oracle.  All rights reserved.


Connected to:
Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production
With the Partitioning, Real Application Clusters, Automatic Storage Management, OLAP,
Advanced Analytics and Real Application Testing options

SQL> show parameter db_name

NAME				     TYPE	 VALUE
------------------------------------ ----------- ------------------------------
db_name 			     string	 rac
SQL> select instance_name, status from v$instance ;

INSTANCE_NAME	 STATUS
---------------- ------------
rac2		 OPEN

3) LISTENER

[rac1|root:/root]> lsnrctl status

LSNRCTL for Linux: Version 12.1.0.2.0 - Production on 17-MAR-2023 15:11:46

Copyright (c) 1991, 2014, Oracle.  All rights reserved.

Connecting to (ADDRESS=(PROTOCOL=tcp)(HOST=)(PORT=1521))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 12.1.0.2.0 - Production
Start Date                17-MAR-2023 15:11:02
Uptime                    0 days 0 hr. 0 min. 43 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/12c/grid/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/rac1/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=LISTENER)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=10.0.1.101)(PORT=1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=10.0.1.201)(PORT=1521)))
Services Summary...
Service "-MGMTDBXDB" has 1 instance(s).
  Instance "-MGMTDB", status READY, has 1 handler(s) for this service...
Service "_mgmtdb" has 1 instance(s).
  Instance "-MGMTDB", status READY, has 1 handler(s) for this service...
Service "rac" has 2 instance(s).
  Instance "-MGMTDB", status READY, has 1 handler(s) for this service...
  Instance "rac1", status READY, has 1 handler(s) for this service...
Service "racXDB" has 1 instance(s).
  Instance "rac1", status READY, has 1 handler(s) for this service...
The command completed successfully

패치

1) OPatch version up (p6880880_122010 버전 사용 가능) / rac1, rac2 모두 진행

[+ASM|oracle:/home/oracle]> opatch version
OPatch Version: 12.1.0.1.3

OPatch succeeded.

[rac1|root:/u01/app/12c/grid]> mv $GRID_HOME/OPatch $GRID_HOME/OPatch_old
[rac1|root:/u01/app/12c/grid]> ora
Last login: Fri Mar 17 13:37:49 KST 2023 on pts/0
[rac1|oracle:/home/oracle]> asm
[+ASM|oracle:/home/oracle]> cd /u01/media/patch/12c
[+ASM|oracle:/u01/media/patch/12c]> unzip p6880880_122010_Linux-x86-64.zip -d $ORACLE_HOME
[+ASM|oracle:/u01/media/patch/12c]> opatch version
OPatch Version: 12.2.0.1.36

OPatch succeeded.

2) patch set p34204576_121020

1) GRID patch

# 오라클 인벤토리의 유효성 검사
[+ASM|oracle:/u01/media/patch/12c/34204576]> $ORACLE_HOME/OPatch/opatch lsinventory -detail -oh $ORACLE_HOME

# 패치 상태 확인
[+ASM|oracle:/home/oracle]> opatch lspatches
There are no Interim patches installed in this Oracle Home "/u01/app/12c/grid".

OPatch succeeded.

# 패치파일 압축해제
[+ASM|oracle:/u01/media/patch/12c]> unzip p34204576_121020_Linux-x86-64.zip
[+ASM|oracle:/u01/media/patch/12c]> ls -al
~
drwxr-xr-x. 7 oracle dba       4096 Jul 22  2022 34204576


# Patching Oracle RAC Database Homes and GI Together
## root 계정으로 각 노드에서 모두 실행
[rac1|root:/u01/app/12c/grid]> $GRID_HOME/OPatch/opatchauto apply /u01/media/patch/12c/34204576 -oh $GRID_HOME
[rac2|root:/u01/media/patch/12c]> $GRID_HOME/OPatch/opatchauto apply /u01/media/patch/12c/34204576 -oh $GRID_HOME

# 확인
[+ASM|oracle:/home/oracle]> opatch lspatches
34057742;Database Patch Set Update : 12.1.0.2.220719 (34057742)
33112931;ACFS Interim patch for 33112931
32758932;OCW PATCH SET UPDATE 12.1.0.2.210720 (32758932)
26983807;WLM Patch Set Update: 12.1.0.2.180116 (26983807)

OPatch succeeded.

2) Database Patch

# 오라클 인벤토리 유효성 검사
[rac1|oracle:/home/oracle]> opatch lsinventory -detail -oh $ORACLE_HOME
Oracle Interim Patch Installer version 12.2.0.1.36
Copyright (c) 2023, Oracle Corporation.  All rights reserved.


Oracle Home       : /u01/app/oracle/product/12c/db_1
Central Inventory : /u01/app/oraInventory
   from           : /u01/app/oracle/product/12c/db_1/oraInst.loc
OPatch version    : 12.2.0.1.36
OUI version       : 12.1.0.2.0
Log file location : /u01/app/oracle/product/12c/db_1/cfgtoollogs/opatch/opatch2023-03-20_07-22-13AM_1.log

Lsinventory Output file location : /u01/app/oracle/product/12c/db_1/cfgtoollogs/opatch/lsinv/lsinventory2023-03-20_07-22-13AM.txt


# 패치 상태 확인
[rac1|oracle:/home/oracle]> opatch lspatches
There are no Interim patches installed in this Oracle Home "/u01/app/oracle/product/12c/db_1".

OPatch succeeded.


# root 계정으로 두 노드 모두 실행 database patch
[rac1|root:/root]> $ORACLE_HOME/OPatch/opatchauto apply /u01/media/patch/12c/34204576 -oh $ORACLE_HOME


# 확인
[rac1|oracle:/home/oracle]> opatch lspatches
34057742;Database Patch Set Update : 12.1.0.2.220719 (34057742)
32758932;OCW PATCH SET UPDATE 12.1.0.2.210720 (32758932)

OPatch succeeded.
