여기서받은 백업본으로 다른 서버에 DB 복구해보겠다

DB 복구과정은

1. PFILE / SPFILE 로 NOMOUNT

2. CONTROLFILE 백업셋으로 컨트롤파일 RESTORE

3. RESTORE된 CONTROLFILE로 DATABASE MOUNT

4. RMAN 접속해서 백업셋으로 데이터파일 RESTORE

5. temp, bct, logfile , controlfile, datafile 확인 및 rename

6. recovery

7. open

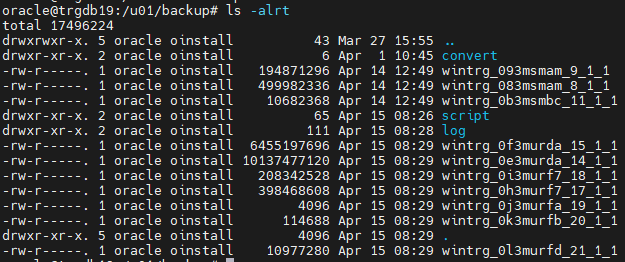

이 백업본들 다 들고 다른서버 ㄱㄱ

19c 엔진을 가진 새 서버에서

pfile

*.audit_file_dest='/u01/app/oracle/admin/wintrg/adump'
*.audit_trail='db'
*.compatible='19.0.0'
*.control_files='/home/oracle/oradata/control01.ctl'
*.db_block_size=8192
*.db_name='wintrg'
*.db_recovery_file_dest='/home/oracle/fast_recovery_area'
*.db_recovery_file_dest_size=7851m
*.diagnostic_dest='/u01/app/oracle'
*.dispatchers='(PROTOCOL=TCP) (SERVICE=wintrgXDB)'
*.log_archive_format='%t_%s_%r.dbf'
*.nls_language='AMERICAN'
*.nls_territory='AMERICA'
*.open_cursors=300
*.pga_aggregate_target=996m
*.processes=300
*.remote_login_passwordfile='EXCLUSIVE'
*.sga_target=2986m
*.tde_configuration='KEYSTORE_CONFIGURATION=FILE'
*.undo_tablespace='UNDOTBS1'
*.wallet_root='/u01/app/oracle/product/19.0.0.0/dbhome_1/network/admin/wallet/wintrg'
*.db_create_file_dest='/home/oracle/oradata'





[target@oracle:/media/sf_01.oracle/9.backup]> ls -alrt
total 17496220
drwxrwx---. 1 root vboxsf        4096 Apr 15 08:40 ..
-rwxrwx---. 1 root vboxsf    10977280 Apr 15 08:40 wintrg_0l3murfd_21_1_1
-rwxrwx---. 1 root vboxsf      114688 Apr 15 08:40 wintrg_0k3murfb_20_1_1
-rwxrwx---. 1 root vboxsf        4096 Apr 15 08:40 wintrg_0j3murfa_19_1_1
-rwxrwx---. 1 root vboxsf   208342528 Apr 15 08:41 wintrg_0i3murf7_18_1_1
-rwxrwx---. 1 root vboxsf   398468608 Apr 15 08:41 wintrg_0h3murf7_17_1_1
-rwxrwx---. 1 root vboxsf  6455197696 Apr 15 08:56 wintrg_0f3murda_15_1_1
-rwxrwx---. 1 root vboxsf 10137477120 Apr 15 09:17 wintrg_0e3murda_14_1_1
-rwxrwx---. 1 root vboxsf    10682368 Apr 15 09:17 wintrg_0b3msmbc_11_1_1
-rwxrwx---. 1 root vboxsf   194871296 Apr 15 09:18 wintrg_093msmam_9_1_1
-rwxrwx---. 1 root vboxsf   499982336 Apr 15 09:19 wintrg_083msmam_8_1_1
drwxrwx---. 1 root vboxsf        4096 Apr 15 09:29 .



pfile로 nomount

SQL> startup pfile='/u01/app/oracle/product/19.0.0.0/dbhome_1/dbs/initwintrg.ora';



컨트롤 파일 restore

RMAN> restore controlfile from '/media/sf_01.oracle/9.backup/wintrg_0l3murfd_21_1_1';
restore controlfile from '/media/sf_01.oracle/9.backup/wintrg_0l3murfd_21_1_1';
Starting restore at 2025/04/15 09:32:59
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=237 device type=DISK

channel ORA_DISK_1: restoring control file
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
output file name=/home/oracle/oradata/control01.ctl
Finished restore at 2025/04/15 09:33:01



db mount

RMAN> alter database mount ;
alter database mount ;
released channel: ORA_DISK_1
Statement processed



백업셋 카탈로깅

RMAN> catalog start with '/media/sf_01.oracle/9.backup' ;
catalog start with '/media/sf_01.oracle/9.backup' ;
Starting implicit crosscheck backup at 2025/04/15 09:34:50
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=23 device type=DISK
Crosschecked 12 objects
Finished implicit crosscheck backup at 2025/04/15 09:34:52

Starting implicit crosscheck copy at 2025/04/15 09:34:52
using channel ORA_DISK_1
Finished implicit crosscheck copy at 2025/04/15 09:34:52

searching for all files in the recovery area
cataloging files...
no files cataloged

searching for all files that match the pattern /media/sf_01.oracle/9.backup

List of Files Unknown to the Database
=====================================
File Name: /media/sf_01.oracle/9.backup/wintrg_083msmam_8_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_093msmam_9_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0b3msmbc_11_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0e3murda_14_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0f3murda_15_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0h3murf7_17_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0i3murf7_18_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0j3murfa_19_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0k3murfb_20_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0l3murfd_21_1_1

Do you really want to catalog the above files (enter YES or NO)? YES
cataloging files...
cataloging done

List of Cataloged Files
=======================
File Name: /media/sf_01.oracle/9.backup/wintrg_083msmam_8_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_093msmam_9_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0b3msmbc_11_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0e3murda_14_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0f3murda_15_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0h3murf7_17_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0i3murf7_18_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0j3murfa_19_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0k3murfb_20_1_1
File Name: /media/sf_01.oracle/9.backup/wintrg_0l3murfd_21_1_1

LIST BACKUP 확인

RMAN> LIST BACKUP ;
LIST BACKUP ;

List of Backup Sets
===================


BS Key  Type LV Size
------- ---- -- ----------
3       Incr 0  185.84M
  List of Datafiles in backup set 3
  File LV Type Ckp SCN    Ckp Time            Abs Fuz SCN Sparse Name
  ---- -- ---- ---------- ------------------- ----------- ------ ----
  2    0  Incr 687844     2025/04/14 12:49:26              NO    /u01/app/oracle/oradata/WINTRG/sysaux01.dbf
  4    0  Incr 687844     2025/04/14 12:49:26              NO    /u01/app/oracle/oradata/WINTRG/users01.dbf

  Backup Set Copy #1 of backup set 3
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:04     2025/04/14 12:49:30 NO         L0

    List of Backup Pieces for backup set 3 Copy #1
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    3       1   EXPIRED     /u01/backup/wintrg_093msmam_9_1_1

  Backup Set Copy #2 of backup set 3
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:04     2025/04/14 12:49:30 NO         L0

    List of Backup Pieces for backup set 3 Copy #2
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    17      1   AVAILABLE   /media/sf_01.oracle/9.backup/wintrg_093msmam_9_1_1

BS Key  Type LV Size
------- ---- -- ----------
4       Incr 0  476.81M
  List of Datafiles in backup set 4
  File LV Type Ckp SCN    Ckp Time            Abs Fuz SCN Sparse Name
  ---- -- ---- ---------- ------------------- ----------- ------ ----
  1    0  Incr 687842     2025/04/14 12:49:26              NO    /u01/app/oracle/oradata/WINTRG/system01.dbf
  3    0  Incr 687842     2025/04/14 12:49:26              NO    /u01/app/oracle/oradata/WINTRG/undotbs01.dbf

  Backup Set Copy #1 of backup set 4
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:11     2025/04/14 12:49:38 NO         L0

    List of Backup Pieces for backup set 4 Copy #1
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    4       1   EXPIRED     /u01/backup/wintrg_083msmam_8_1_1

  Backup Set Copy #2 of backup set 4
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:11     2025/04/14 12:49:37 NO         L0

    List of Backup Pieces for backup set 4 Copy #2
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    16      1   AVAILABLE   /media/sf_01.oracle/9.backup/wintrg_083msmam_8_1_1

BS Key  Type LV Size
------- ---- -- ----------
6       Full    10.17M
  Control File Included: Ckp SCN: 687922       Ckp time: 2025/04/14 12:49:48

  Backup Set Copy #1 of backup set 6
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:02     2025/04/14 12:49:50 NO         CONTROLFILE

    List of Backup Pieces for backup set 6 Copy #1
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    6       1   EXPIRED     /u01/backup/wintrg_0b3msmbc_11_1_1

  Backup Set Copy #2 of backup set 6
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:02     2025/04/14 12:49:50 NO         CONTROLFILE

    List of Backup Pieces for backup set 6 Copy #2
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    18      1   AVAILABLE   /media/sf_01.oracle/9.backup/wintrg_0b3msmbc_11_1_1

BS Key  Type LV Size       Device Type Elapsed Time Completion Time
------- ---- -- ---------- ----------- ------------ -------------------
7       Full    10.20M     DISK        00:00:00     2025/04/14 12:49:51
        BP Key: 7   Status: EXPIRED  Compressed: NO  Tag: TAG20250414T124951
        Piece Name: /u01/app/oracle/fast_recovery_area/WINTRG/autobackup/2025_04_14/o1_mf_s_1198414191_mzs1gzbf_.bkp
  SPFILE Included: Modification time: 2025/04/14 10:53:50
  SPFILE db_unique_name: WINTRG
  Control File Included: Ckp SCN: 687932       Ckp time: 2025/04/14 12:49:51

BS Key  Type LV Size       Device Type Elapsed Time Completion Time
------- ---- -- ---------- ----------- ------------ -------------------
8       Full    10.20M     DISK        00:00:01     2025/04/14 13:32:53
        BP Key: 8   Status: EXPIRED  Compressed: NO  Tag: TAG20250414T133252
        Piece Name: /u01/app/oracle/fast_recovery_area/WINTRG/autobackup/2025_04_14/o1_mf_s_1198416772_mzs3zo88_.bkp
  SPFILE Included: Modification time: 2025/04/14 13:22:57
  SPFILE db_unique_name: WINTRG
  Control File Included: Ckp SCN: 698533       Ckp time: 2025/04/14 13:32:52

BS Key  Type LV Size
------- ---- -- ----------
9       Incr 1  6.01G
  List of Datafiles in backup set 9
  File LV Type Ckp SCN    Ckp Time            Abs Fuz SCN Sparse Name
  ---- -- ---- ---------- ------------------- ----------- ------ ----
  1    1  Incr 944769     2025/04/15 08:28:26              NO    /u01/app/oracle/oradata/WINTRG/system01.dbf
  2    1  Incr 944769     2025/04/15 08:28:26              NO    /u01/app/oracle/oradata/WINTRG/sysaux01.dbf
  7    1  Incr 944769     2025/04/15 08:28:26              NO    /u01/app/oracle/oradata/WINTRG/HIS_I08_01.dbf
  9    1  Incr 944769     2025/04/15 08:28:26              NO    /u01/app/oracle/oradata/WINTRG/PAM_I08_01.dbf
  10   1  Incr 944769     2025/04/15 08:28:26              NO    /u01/app/oracle/oradata/WINTRG/EMR_D08_01.dbf
  11   1  Incr 944769     2025/04/15 08:28:26              NO    /u01/app/oracle/oradata/WINTRG/EMR_I08_01.dbf

  Backup Set Copy #1 of backup set 9
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:44     2025/04/15 08:29:11 NO         L1

    List of Backup Pieces for backup set 9 Copy #1
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    9       1   EXPIRED     /u01/backup/wintrg_0f3murda_15_1_1

  Backup Set Copy #2 of backup set 9
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:44     2025/04/15 08:29:10 NO         L1

    List of Backup Pieces for backup set 9 Copy #2
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    20      1   AVAILABLE   /media/sf_01.oracle/9.backup/wintrg_0f3murda_15_1_1

BS Key  Type LV Size
------- ---- -- ----------
10      Incr 1  9.44G
  List of Datafiles in backup set 10
  File LV Type Ckp SCN    Ckp Time            Abs Fuz SCN Sparse Name
  ---- -- ---- ---------- ------------------- ----------- ------ ----
  3    1  Incr 944767     2025/04/15 08:28:26              NO    /u01/app/oracle/oradata/WINTRG/undotbs01.dbf
  4    1  Incr 944767     2025/04/15 08:28:26              NO    /u01/app/oracle/oradata/WINTRG/users01.dbf
  5    1  Incr 944767     2025/04/15 08:28:26              NO    /u01/app/oracle/oradata/WINTRG/SEC_D08_01.dbf
  6    1  Incr 944767     2025/04/15 08:28:26              NO    /u01/app/oracle/oradata/WINTRG/HIS_D08_01.dbf
  8    1  Incr 944767     2025/04/15 08:28:26              NO    /u01/app/oracle/oradata/WINTRG/PAM_D08_01.dbf

  Backup Set Copy #1 of backup set 10
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:53     2025/04/15 08:29:20 NO         L1

    List of Backup Pieces for backup set 10 Copy #1
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    10      1   EXPIRED     /u01/backup/wintrg_0e3murda_14_1_1

  Backup Set Copy #2 of backup set 10
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:53     2025/04/15 08:29:19 NO         L1

    List of Backup Pieces for backup set 10 Copy #2
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    19      1   AVAILABLE   /media/sf_01.oracle/9.backup/wintrg_0e3murda_14_1_1

BS Key  Type LV Size       Device Type Elapsed Time Completion Time
------- ---- -- ---------- ----------- ------------ -------------------
11      Full    10.48M     DISK        00:00:00     2025/04/15 08:29:22
        BP Key: 11   Status: EXPIRED  Compressed: NO  Tag: TAG20250415T082922
        Piece Name: /u01/app/oracle/fast_recovery_area/WINTRG/autobackup/2025_04_15/o1_mf_s_1198484962_mzv6llck_.bkp
  SPFILE Included: Modification time: 2025/04/15 08:27:58
  SPFILE db_unique_name: WINTRG
  Control File Included: Ckp SCN: 944849       Ckp time: 2025/04/15 08:29:22

BS Key  Size
------- ----------
12      198.69M

  List of Archived Logs in backup set 12
  Thrd Seq     Low SCN    Low Time            Next SCN   Next Time
  ---- ------- ---------- ------------------- ---------- ---------
  1    57      712029     2025/04/14 13:46:56 713592     2025/04/14 14:39:18
  1    60      940675     2025/04/15 07:53:24 944875     2025/04/15 08:29:24
  1    61      944875     2025/04/15 08:29:24 944888     2025/04/15 08:29:24
  1    62      944888     2025/04/15 08:29:24 944901     2025/04/15 08:29:26

  Backup Set Copy #1 of backup set 12
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:01     2025/04/15 08:29:28 NO         TAG20250415T082926

    List of Backup Pieces for backup set 12 Copy #1
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    12      1   EXPIRED     /u01/backup/wintrg_0i3murf7_18_1_1

  Backup Set Copy #2 of backup set 12
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:01     2025/04/15 08:29:28 NO         TAG20250415T082926

    List of Backup Pieces for backup set 12 Copy #2
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    22      1   AVAILABLE   /media/sf_01.oracle/9.backup/wintrg_0i3murf7_18_1_1

BS Key  Size
------- ----------
13      380.01M

  List of Archived Logs in backup set 13
  Thrd Seq     Low SCN    Low Time            Next SCN   Next Time
  ---- ------- ---------- ------------------- ---------- ---------
  1    55      711775     2025/04/14 13:46:31 711916     2025/04/14 13:46:43
  1    56      711916     2025/04/14 13:46:43 712029     2025/04/14 13:46:56

  Backup Set Copy #1 of backup set 13
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:01     2025/04/15 08:29:29 NO         TAG20250415T082926

    List of Backup Pieces for backup set 13 Copy #1
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    13      1   EXPIRED     /u01/backup/wintrg_0h3murf7_17_1_1

  Backup Set Copy #2 of backup set 13
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:01     2025/04/15 08:29:28 NO         TAG20250415T082926

    List of Backup Pieces for backup set 13 Copy #2
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    21      1   AVAILABLE   /media/sf_01.oracle/9.backup/wintrg_0h3murf7_17_1_1

BS Key  Size
------- ----------
14      3.50K

  List of Archived Logs in backup set 14
  Thrd Seq     Low SCN    Low Time            Next SCN   Next Time
  ---- ------- ---------- ------------------- ---------- ---------
  1    63      944901     2025/04/15 08:29:26 944910     2025/04/15 08:29:26

  Backup Set Copy #1 of backup set 14
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:00     2025/04/15 08:29:30 NO         TAG20250415T082926

    List of Backup Pieces for backup set 14 Copy #1
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    14      1   EXPIRED     /u01/backup/wintrg_0j3murfa_19_1_1

  Backup Set Copy #2 of backup set 14
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:00     2025/04/15 08:29:30 NO         TAG20250415T082926

    List of Backup Pieces for backup set 14 Copy #2
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    23      1   AVAILABLE   /media/sf_01.oracle/9.backup/wintrg_0j3murfa_19_1_1

BS Key  Type LV Size
------- ---- -- ----------
15      Full    96.00K
  SPFILE Included: Modification time: 2025/04/15 08:27:58
  SPFILE db_unique_name: WINTRG

  Backup Set Copy #1 of backup set 15
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:00     2025/04/15 08:29:31 NO         SPFILE

    List of Backup Pieces for backup set 15 Copy #1
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    15      1   EXPIRED     /u01/backup/wintrg_0k3murfb_20_1_1

  Backup Set Copy #2 of backup set 15
  Device Type Elapsed Time Completion Time     Compressed Tag
  ----------- ------------ ------------------- ---------- ---
  DISK        00:00:00     2025/04/15 08:29:31 NO         SPFILE

    List of Backup Pieces for backup set 15 Copy #2
    BP Key  Pc# Status      Piece Name
    ------- --- ----------- ----------
    24      1   AVAILABLE   /media/sf_01.oracle/9.backup/wintrg_0k3murfb_20_1_1

BS Key  Type LV Size       Device Type Elapsed Time Completion Time
------- ---- -- ---------- ----------- ------------ -------------------
16      Full    10.45M     DISK        00:00:01     2025/04/15 08:29:34
        BP Key: 25   Status: AVAILABLE  Compressed: NO  Tag: CONTROLFILE
        Piece Name: /media/sf_01.oracle/9.backup/wintrg_0l3murfd_21_1_1
  Control File Included: Ckp SCN: 944958       Ckp time: 2025/04/15 08:29:33



DATAFILE RESTORE

export TMOUT=0
export ORACLE_SID=wintrg
export ORACLE_UNQNAME=wintrg
export ORACLE_HOME=/u01/app/oracle/product/19.0.0.0/dbhome_1
export DT=`date +%Y%m%d%H%M`
/u01/app/oracle/product/19.0.0.0/dbhome_1/bin/rman target / log /u01/backup/log/${ORACLE_SID}_restore_${DT}.log << EOF
run
{
CONFIGURE DEVICE TYPE DISK PARALLELISM 4 BACKUP TYPE TO BACKUPSET;
SET NEWNAME FOR DATABASE TO NEW ;
restore database ;
switch datafile all;
switch tempfile all;
}
EOF

생김

[target@oracle:/home/oracle/oradata/WINTRG]> cd datafile/
[target@oracle:/home/oracle/oradata/WINTRG/datafile]> ls -alrt
total 2395184
drwxr-x---. 3 oracle oinstall          22 Apr 15 09:38 ..
drwxr-x---. 2 oracle oinstall        4096 Apr 15 09:38 .
-rw-r-----. 1 oracle oinstall     5251072 Apr 15 09:38 o1_mf_users_mzvbnfql_.dbf
-rw-r-----. 1 oracle oinstall    10493952 Apr 15 09:38 o1_mf_his_d08__mzvbnfwj_.dbf
-rw-r-----. 1 oracle oinstall    10493952 Apr 15 09:38 o1_mf_pam_d08__mzvbnfxh_.dbf
-rw-r-----. 1 oracle oinstall   230694912 Apr 15 09:38 o1_mf_undotbs1_mzvbnfqh_.dbf
-rw-r-----. 1 oracle oinstall   576724992 Apr 15 09:38 o1_mf_sysaux_mzvbnflt_.dbf
-rw-r-----. 1 oracle oinstall  4294975488 Apr 15 09:39 o1_mf_emr_d08__mzvbnfqz_.dbf
-rw-r-----. 1 oracle oinstall  2147491840 Apr 15 09:39 o1_mf_pam_i08__mzvbnfsw_.dbf
-rw-r-----. 1 oracle oinstall 10737426432 Apr 15 09:39 o1_mf_sec_d08__mzvbnfv8_.dbf
-rw-r-----. 1 oracle oinstall  2147491840 Apr 15 09:39 o1_mf_emr_i08__mzvbnfwb_.dbf
-rw-r-----. 1 oracle oinstall   734011392 Apr 15 09:39 o1_mf_system_mzvbnfm4_.dbf
-rw-r-----. 1 oracle oinstall  1073750016 Apr 15 09:39 o1_mf_his_i08__mzvbnfxf_.dbf



로그

[wintrg@oracle:/home/oracle/backup/log]> cat wintrg_restore_202504150938.log

Recovery Manager: Release 19.0.0.0.0 - Production on Tue Apr 15 09:38:32 2025
Version 19.26.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

connected to target database: WINTRG (DBID=516464620, not open)

RMAN> run
2> {
3> CONFIGURE DEVICE TYPE DISK PARALLELISM 4 BACKUP TYPE TO BACKUPSET;
4> SET NEWNAME FOR DATABASE TO NEW ;
5> restore database ;
6> switch datafile all;
7> switch tempfile all;
8> }
using target database control file instead of recovery catalog
new RMAN configuration parameters:
CONFIGURE DEVICE TYPE DISK PARALLELISM 4 BACKUP TYPE TO BACKUPSET;
new RMAN configuration parameters are successfully stored

executing command: SET NEWNAME

Starting restore at 2025/04/15 09:38:34
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=17 device type=DISK
allocated channel: ORA_DISK_2
channel ORA_DISK_2: SID=19 device type=DISK
allocated channel: ORA_DISK_3
channel ORA_DISK_3: SID=259 device type=DISK
allocated channel: ORA_DISK_4
channel ORA_DISK_4: SID=20 device type=DISK

channel ORA_DISK_1: starting datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
channel ORA_DISK_1: restoring datafile 00002 to /home/oracle/oradata/WINTRG/datafile/o1_mf_sysaux_%u_.dbf
channel ORA_DISK_1: restoring datafile 00004 to /home/oracle/oradata/WINTRG/datafile/o1_mf_users_%u_.dbf
channel ORA_DISK_1: reading from backup piece /media/sf_01.oracle/9.backup/wintrg_093msmam_9_1_1
channel ORA_DISK_2: starting datafile backup set restore
channel ORA_DISK_2: specifying datafile(s) to restore from backup set
channel ORA_DISK_2: restoring datafile 00001 to /home/oracle/oradata/WINTRG/datafile/o1_mf_system_%u_.dbf
channel ORA_DISK_2: restoring datafile 00003 to /home/oracle/oradata/WINTRG/datafile/o1_mf_undotbs1_%u_.dbf
channel ORA_DISK_2: reading from backup piece /media/sf_01.oracle/9.backup/wintrg_083msmam_8_1_1
channel ORA_DISK_3: starting datafile backup set restore
channel ORA_DISK_3: specifying datafile(s) to restore from backup set
channel ORA_DISK_3: restoring datafile 00007 to /home/oracle/oradata/WINTRG/datafile/o1_mf_his_i08__%u_.dbf
channel ORA_DISK_3: restoring datafile 00009 to /home/oracle/oradata/WINTRG/datafile/o1_mf_pam_i08__%u_.dbf
channel ORA_DISK_3: restoring datafile 00010 to /home/oracle/oradata/WINTRG/datafile/o1_mf_emr_d08__%u_.dbf
channel ORA_DISK_3: restoring datafile 00011 to /home/oracle/oradata/WINTRG/datafile/o1_mf_emr_i08__%u_.dbf
channel ORA_DISK_3: reading from backup piece /media/sf_01.oracle/9.backup/wintrg_0f3murda_15_1_1
channel ORA_DISK_4: starting datafile backup set restore
channel ORA_DISK_4: specifying datafile(s) to restore from backup set
channel ORA_DISK_4: restoring datafile 00005 to /home/oracle/oradata/WINTRG/datafile/o1_mf_sec_d08__%u_.dbf
channel ORA_DISK_4: restoring datafile 00006 to /home/oracle/oradata/WINTRG/datafile/o1_mf_his_d08__%u_.dbf
channel ORA_DISK_4: restoring datafile 00008 to /home/oracle/oradata/WINTRG/datafile/o1_mf_pam_d08__%u_.dbf
channel ORA_DISK_4: reading from backup piece /media/sf_01.oracle/9.backup/wintrg_0e3murda_14_1_1
channel ORA_DISK_1: piece handle=/media/sf_01.oracle/9.backup/wintrg_093msmam_9_1_1 tag=L0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:26
channel ORA_DISK_2: piece handle=/media/sf_01.oracle/9.backup/wintrg_083msmam_8_1_1 tag=L0
channel ORA_DISK_2: restored backup piece 1
channel ORA_DISK_2: restore complete, elapsed time: 00:00:36



파일 확인

SQL> col name for a200
select name from v$tempfile ;
select member from v$logfile;
select NAME from v$datafile ;
select name from v$controlfile ;
SQL>
NAME
--------------------------------------------------------------------------------
/home/oracle/oradata/WINTRG/datafile/o1_mf_temp_%u_.tmp

SQL>
MEMBER
--------------------------------------------------------------------------------
/u01/app/oracle/oradata/WINTRG/redo01.log
/u01/app/oracle/oradata/WINTRG/redo02.log
/u01/app/oracle/oradata/WINTRG/redo03.log

SQL>
NAME
--------------------------------------------------------------------------------
/home/oracle/oradata/WINTRG/datafile/o1_mf_system_mzvbnfm4_.dbf
/home/oracle/oradata/WINTRG/datafile/o1_mf_sysaux_mzvbnflt_.dbf
/home/oracle/oradata/WINTRG/datafile/o1_mf_undotbs1_mzvbnfqh_.dbf
/home/oracle/oradata/WINTRG/datafile/o1_mf_users_mzvbnfql_.dbf
/home/oracle/oradata/WINTRG/datafile/o1_mf_sec_d08__mzvbnfv8_.dbf
/home/oracle/oradata/WINTRG/datafile/o1_mf_his_d08__mzvbnfwj_.dbf
/home/oracle/oradata/WINTRG/datafile/o1_mf_his_i08__mzvbnfxf_.dbf
/home/oracle/oradata/WINTRG/datafile/o1_mf_pam_d08__mzvbnfxh_.dbf
/home/oracle/oradata/WINTRG/datafile/o1_mf_pam_i08__mzvbnfsw_.dbf
/home/oracle/oradata/WINTRG/datafile/o1_mf_emr_d08__mzvbnfqz_.dbf
/home/oracle/oradata/WINTRG/datafile/o1_mf_emr_i08__mzvbnfwb_.dbf

11 rows selected.

SQL>
NAME
--------------------------------------------------------------------------------
/home/oracle/oradata/control01.ctl



alter database rename file '/u01/app/oracle/oradata/WINTRG/redo01.log' to '/home/oracle/oradata/WINTRG/onlinelog/redo01.log';
alter database rename file '/u01/app/oracle/oradata/WINTRG/redo02.log' to '/home/oracle/oradata/WINTRG/onlinelog/redo02.log';
alter database rename file '/u01/app/oracle/oradata/WINTRG/redo03.log' to '/home/oracle/oradata/WINTRG/onlinelog/redo03.log';


SQL> select member from v$logfile;

MEMBER
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
/home/oracle/oradata/WINTRG/onlinelog/redo01.log
/home/oracle/oradata/WINTRG/onlinelog/redo02.log
/home/oracle/oradata/WINTRG/onlinelog/redo03.log



Recover

[wintrg@oracle:/home/oracle/backup/log]> rman target /

Recovery Manager: Release 19.0.0.0.0 - Production on Tue Apr 15 09:43:24 2025
Version 19.26.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

connected to target database: WINTRG (DBID=516464620, not open)

RMAN> recover database ;
recover database ;
Starting recover at 2025/04/15 09:43:29
using target database control file instead of recovery catalog
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=23 device type=DISK
allocated channel: ORA_DISK_2
channel ORA_DISK_2: SID=262 device type=DISK
allocated channel: ORA_DISK_3
channel ORA_DISK_3: SID=26 device type=DISK
allocated channel: ORA_DISK_4
channel ORA_DISK_4: SID=260 device type=DISK
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00001: /home/oracle/oradata/WINTRG/datafile/o1_mf_system_mzvbnfm4_.dbf
destination for restore of datafile 00002: /home/oracle/oradata/WINTRG/datafile/o1_mf_sysaux_mzvbnflt_.dbf
channel ORA_DISK_1: reading from backup piece /media/sf_01.oracle/9.backup/wintrg_0f3murda_15_1_1
channel ORA_DISK_2: starting incremental datafile backup set restore
channel ORA_DISK_2: specifying datafile(s) to restore from backup set
destination for restore of datafile 00003: /home/oracle/oradata/WINTRG/datafile/o1_mf_undotbs1_mzvbnfqh_.dbf
destination for restore of datafile 00004: /home/oracle/oradata/WINTRG/datafile/o1_mf_users_mzvbnfql_.dbf
channel ORA_DISK_2: reading from backup piece /media/sf_01.oracle/9.backup/wintrg_0e3murda_14_1_1
channel ORA_DISK_2: piece handle=/media/sf_01.oracle/9.backup/wintrg_0e3murda_14_1_1 tag=L1
channel ORA_DISK_2: restored backup piece 1
channel ORA_DISK_2: restore complete, elapsed time: 00:00:07
channel ORA_DISK_1: piece handle=/media/sf_01.oracle/9.backup/wintrg_0f3murda_15_1_1 tag=L1
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:15

starting media recovery

channel ORA_DISK_1: starting archived log restore to default destination
channel ORA_DISK_1: restoring archived log
archived log thread=1 sequence=60
channel ORA_DISK_1: restoring archived log
archived log thread=1 sequence=61
channel ORA_DISK_1: restoring archived log
archived log thread=1 sequence=62
channel ORA_DISK_1: reading from backup piece /media/sf_01.oracle/9.backup/wintrg_0i3murf7_18_1_1
channel ORA_DISK_2: starting archived log restore to default destination
channel ORA_DISK_2: restoring archived log
archived log thread=1 sequence=63
channel ORA_DISK_2: reading from backup piece /media/sf_01.oracle/9.backup/wintrg_0j3murfa_19_1_1
channel ORA_DISK_1: piece handle=/media/sf_01.oracle/9.backup/wintrg_0i3murf7_18_1_1 tag=TAG20250415T082926
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
archived log file name=/home/oracle/fast_recovery_area/WINTRG/archivelog/2025_04_15/o1_mf_1_60_mzvby4n4_.arc thread=1 sequence=60
channel default: deleting archived log(s)
archived log file name=/home/oracle/fast_recovery_area/WINTRG/archivelog/2025_04_15/o1_mf_1_60_mzvby4n4_.arc RECID=59 STAMP=1198489428
archived log file name=/home/oracle/fast_recovery_area/WINTRG/archivelog/2025_04_15/o1_mf_1_61_mzvby4q3_.arc thread=1 sequence=61
channel default: deleting archived log(s)
archived log file name=/home/oracle/fast_recovery_area/WINTRG/archivelog/2025_04_15/o1_mf_1_61_mzvby4q3_.arc RECID=57 STAMP=1198489428
archived log file name=/home/oracle/fast_recovery_area/WINTRG/archivelog/2025_04_15/o1_mf_1_62_mzvby4ok_.arc thread=1 sequence=62
channel default: deleting archived log(s)
archived log file name=/home/oracle/fast_recovery_area/WINTRG/archivelog/2025_04_15/o1_mf_1_62_mzvby4ok_.arc RECID=58 STAMP=1198489428
channel ORA_DISK_2: piece handle=/media/sf_01.oracle/9.backup/wintrg_0j3murfa_19_1_1 tag=TAG20250415T082926
channel ORA_DISK_2: restored backup piece 1
channel ORA_DISK_2: restore complete, elapsed time: 00:00:02
archived log file name=/home/oracle/fast_recovery_area/WINTRG/archivelog/2025_04_15/o1_mf_1_63_mzvby4ny_.arc thread=1 sequence=63
channel default: deleting archived log(s)
archived log file name=/home/oracle/fast_recovery_area/WINTRG/archivelog/2025_04_15/o1_mf_1_63_mzvby4ny_.arc RECID=56 STAMP=1198489428
unable to find archived log
archived log thread=1 sequence=64
RMAN Command Id : 2025-04-15T09:43:24
RMAN Command Id : 2025-04-15T09:43:24
RMAN-00571: ===========================================================
RMAN-00569: =============== ERROR MESSAGE STACK FOLLOWS ===============
RMAN-00571: ===========================================================
RMAN-03002: failure of recover command at 04/15/2025 09:43:51
RMAN-06054: media recovery requesting unknown archived log for thread 1 with sequence 64 and starting SCN of 944910



19.26 엔진에서 19.22 버전을 복구했더니 오픈은 됐는데 아래 메세지가 뜸

RMAN> alter database open resetlogs;
alter database open resetlogs;
Statement processed
PL/SQL package SYS.DBMS_BACKUP_RESTORE version 19.22.00.00 in TARGET database is not current
PL/SQL package SYS.DBMS_RCVMAN version 19.22.00.00 in TARGET database is not current

아래 커맨드 진행

SQL> @$ORACLE_HOME/rdbms/admin/dbmsrman.sql
SQL> @$ORACLE_HOME/rdbms/admin/prvtrmns.plb
SQL> @$ORACLE_HOME/rdbms/admin/dbmsbkrs.sql
SQL> @$ORACLE_HOME/rdbms/admin/prvtbkrs.plb





복구완료~

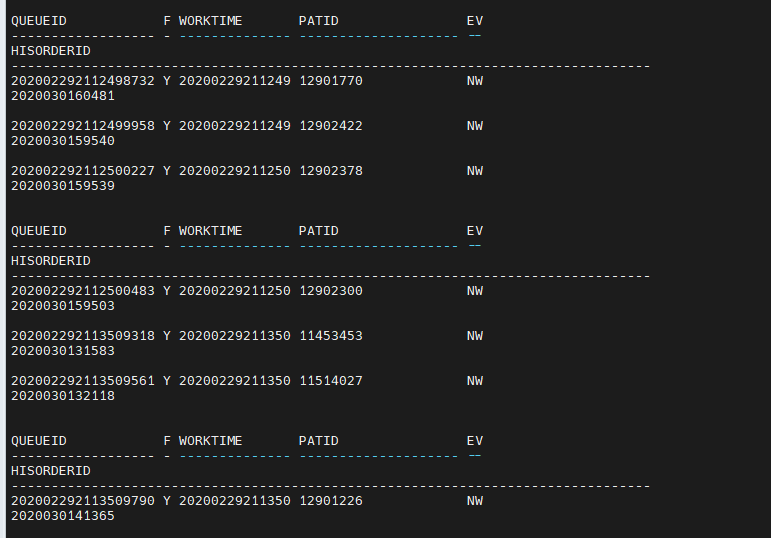

인크리멘탈 백업 받은 데이터도 보이는지 확인
