[Kafka] Mysql -> Oracle Apache Spark 통해 Data 이관 본문
작업환경 (OS/ Kernel)
Linux 7.9 5.4.17-2102.201.3.el7uek.x86_64
Apache Spark Install
1. JDK 설치
https://yum.oracle.com/repo/OracleLinux/OL7/9/base/x86_64/index.html
Oracle Linux 7 (x86_64) Update 9 | Oracle, Software. Hardware. Complete.
yum.oracle.com
여기서 java-1.8.0-openjdk-1.8.0.262.b10-1.el7.x86_64.rpm 를 받아 linux server의 디렉토리에 넣어둠
rpm 설치
cd /media/sf_01.oracle/2.RPM/KAFKA
rpm -ivh java-1.8.0-openjdk-1.8.0.262.b10-1.el7.x86_64.rpm
root@eoks01:/media/sf_01.oracle/2.RPM/KAFKA# rpm -ivh java-1.8.0-openjdk-1.8.0.262.b10-1.el7.x86_64.rpm
warning: java-1.8.0-openjdk-1.8.0.262.b10-1.el7.x86_64.rpm: Header V3 RSA/SHA256 Signature, key ID ec551f03: NOKEY
Preparing... ################################# [100%]
package java-1.8.0-openjdk-1:1.8.0.262.b10-1.el7.x86_64 is already installed
root@eoks01:/media/sf_01.oracle/2.RPM/KAFKA# rpm -ivh java-1.8.0-openjdk-devel-1.8.0.262.b10-1.el7.x86_64.rpm
warning: java-1.8.0-openjdk-devel-1.8.0.262.b10-1.el7.x86_64.rpm: Header V3 RSA/SHA256 Signature, key ID ec551f03: NOKEY
Preparing... ################################# [100%]
Updating / installing...
1:java-1.8.0-openjdk-devel-1:1.8.0.################################# [100%]
확인
java -version
root@eoks01:/media/sf_01.oracle/2.RPM/KAFKA# java -version
openjdk version "1.8.0_262"
OpenJDK Runtime Environment (build 1.8.0_262-b10)
OpenJDK 64-Bit Server VM (build 25.262-b10, mixed mode)
javac -version
root@eoks01:/media/sf_01.oracle/2.RPM/KAFKA# javac -version
javac 1.8.0_262
2. Python 설치
yum install python3.x86_64root@eoks01:/media/sf_01.oracle/2.RPM/KAFKA# yum install python3.x86_64
Loaded plugins: langpacks, ulninfo
mysql-connectors-community | 2.6 kB 00:00:00
mysql-tools-community | 2.6 kB 00:00:00
mysql80-community | 2.6 kB 00:00:00
ol7_UEKR6 | 3.0 kB 00:00:00
ol7_latest | 3.6 kB 00:00:00
(1/8): mysql-connectors-community/x86_64/primary_db | 109 kB 00:00:00
(2/8): mysql-tools-community/x86_64/primary_db | 98 kB 00:00:00
(3/8): mysql80-community/x86_64/primary_db | 278 kB 00:00:00
(4/8): ol7_UEKR6/x86_64/updateinfo | 1.1 MB 00:00:01
(5/8): ol7_latest/x86_64/group_gz | 136 kB 00:00:00
(6/8): ol7_latest/x86_64/updateinfo | 3.6 MB 00:00:03
(7/8): ol7_UEKR6/x86_64/primary_db | 69 MB 00:00:07
(8/8): ol7_latest/x86_64/primary_db | 49 MB 00:00:13
Resolving Dependencies
--> Running transaction check
---> Package python3.x86_64 0:3.6.8-21.0.1.el7_9 will be installed
--> Processing Dependency: python3-libs(x86-64) = 3.6.8-21.0.1.el7_9 for package: python3-3.6.8-21.0.1.el7_9.x86_64
--> Processing Dependency: python3-pip for package: python3-3.6.8-21.0.1.el7_9.x86_64
--> Processing Dependency: python3-setuptools for package: python3-3.6.8-21.0.1.el7_9.x86_64
--> Processing Dependency: libpython3.6m.so.1.0()(64bit) for package: python3-3.6.8-21.0.1.el7_9.x86_64
--> Running transaction check
---> Package python3-libs.x86_64 0:3.6.8-21.0.1.el7_9 will be installed
---> Package python3-pip.noarch 0:9.0.3-8.0.3.el7 will be installed
---> Package python3-setuptools.noarch 0:39.2.0-10.0.1.el7 will be installed
--> Finished Dependency Resolution
Dependencies Resolved
==============================================================================================================================================================================================================
Package Arch Version Repository Size
==============================================================================================================================================================================================================
Installing:
python3 x86_64 3.6.8-21.0.1.el7_9 ol7_latest 70 k
Installing for dependencies:
python3-libs x86_64 3.6.8-21.0.1.el7_9 ol7_latest 7.0 M
python3-pip noarch 9.0.3-8.0.3.el7 ol7_latest 1.6 M
python3-setuptools noarch 39.2.0-10.0.1.el7 ol7_latest 628 k
Transaction Summary
==============================================================================================================================================================================================================
Install 1 Package (+3 Dependent packages)
Total download size: 9.3 M
Installed size: 47 M
Is this ok [y/d/N]: y
Downloading packages:
warning: /var/cache/yum/x86_64/7Server/ol7_latest/packages/python3-3.6.8-21.0.1.el7_9.x86_64.rpm: Header V3 RSA/SHA256 Signature, key ID ec551f03: NOKEY ] 0.0 B/s | 0 B --:--:-- ETA
Public key for python3-3.6.8-21.0.1.el7_9.x86_64.rpm is not installed
(1/4): python3-3.6.8-21.0.1.el7_9.x86_64.rpm | 70 kB 00:00:00
(2/4): python3-pip-9.0.3-8.0.3.el7.noarch.rpm | 1.6 MB 00:00:00
(3/4): python3-setuptools-39.2.0-10.0.1.el7.noarch.rpm | 628 kB 00:00:00
(4/4): python3-libs-3.6.8-21.0.1.el7_9.x86_64.rpm | 7.0 MB 00:00:01
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 4.6 MB/s | 9.3 MB 00:00:02
Retrieving key from file:///etc/pki/rpm-gpg/RPM-GPG-KEY-oracle
Importing GPG key 0xEC551F03:
Userid : "Oracle OSS group (Open Source Software group) <build@oss.oracle.com>"
Fingerprint: 4214 4123 fecf c55b 9086 313d 72f9 7b74 ec55 1f03
Package : 7:oraclelinux-release-7.9-1.0.9.el7.x86_64 (@anaconda/7.9)
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-oracle
Is this ok [y/N]: y
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Warning: RPMDB altered outside of yum.
Installing : python3-pip-9.0.3-8.0.3.el7.noarch 1/4
Installing : python3-libs-3.6.8-21.0.1.el7_9.x86_64 2/4
Installing : python3-3.6.8-21.0.1.el7_9.x86_64 3/4
Installing : python3-setuptools-39.2.0-10.0.1.el7.noarch 4/4
Verifying : python3-setuptools-39.2.0-10.0.1.el7.noarch 1/4
Verifying : python3-pip-9.0.3-8.0.3.el7.noarch 2/4
Verifying : python3-3.6.8-21.0.1.el7_9.x86_64 3/4
Verifying : python3-libs-3.6.8-21.0.1.el7_9.x86_64 4/4
Installed:
python3.x86_64 0:3.6.8-21.0.1.el7_9
Dependency Installed:
python3-libs.x86_64 0:3.6.8-21.0.1.el7_9 python3-pip.noarch 0:9.0.3-8.0.3.el7 python3-setuptools.noarch 0:39.2.0-10.0.1.el7
Complete!
확인
root@eoks01:/media/sf_01.oracle/2.RPM/KAFKA# python3 --version
Python 3.6.8
root@eoks01:/root# python3
Python 3.6.8 (default, Nov 8 2023, 18:52:33)
[GCC 4.8.5 20150623 (Red Hat 4.8.5-44.0.3)] on linux
Type "help", "copyright", "credits" or "license" for more information.

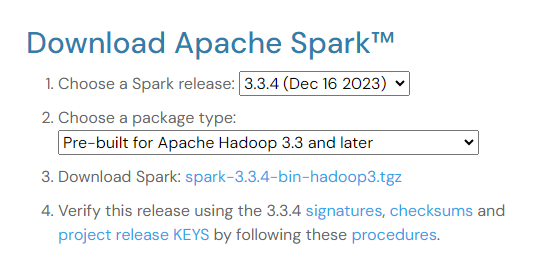

3. Apache Spark 설치
https://spark.apache.org/downloads.html
Downloads | Apache Spark
Download Apache Spark™ Choose a Spark release: Choose a package type: Download Spark: Verify this release using the and project release KEYS by following these procedures. Note that Spark 3 is pre-built with Scala 2.12 in general and Spark 3.2+ provides
spark.apache.org
설치파일 압축해제
cd /media/sf_01.oracle/2.RPM/KAFKA
tar -xvf spark-3.3.4-bin-hadoop3.tgz /media
cd /media
mv spark-3.3.4-bin-hadoop3 spark-3.3.4
환경변수 설정
vi ~/.bash_profile
##########################################
# 4. SPARK
##########################################
export SPARK_HOME=/media/spark-3.3.4
export PYSPARK_PYTHON=python3
export PATH=$PATH:$SPARK_HOME/bin
alias cds='cd $SPARK_HOME'
기본 연결 테스트
pyspark --version
root@eoks01:/media# pyspark --version
Welcome to
____ __
/ __/__ ___ _____/ /__
_\ \/ _ \/ _ `/ __/ '_/
/___/ .__/\_,_/_/ /_/\_\ version 3.3.4
/_/
Using Scala version 2.12.15, OpenJDK 64-Bit Server VM, 1.8.0_262
Branch HEAD
Compiled by user centos on 2023-12-08T19:26:29Z
Revision 18db204995b32e87a650f2f09f9bcf047ddafa90
Url https://github.com/apache/spark
Type --help for more information.
python3 --version
root@eoks01:/media# python3 --version
Python 3.6.8
pyspark
root@eoks01:/media# pyspark
Python 3.6.8 (default, Nov 8 2023, 18:52:33)
[GCC 4.8.5 20150623 (Red Hat 4.8.5-44.0.3)] on linux
Type "help", "copyright", "credits" or "license" for more information.
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
24/01/26 08:27:24 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Welcome to
____ __
/ __/__ ___ _____/ /__
_\ \/ _ \/ _ `/ __/ '_/
/__ / .__/\_,_/_/ /_/\_\ version 3.3.4
/_/
Using Python version 3.6.8 (default, Nov 8 2023 18:52:33)
Spark context Web UI available at http://eoks01:4040
Spark context available as 'sc' (master = local[*], app id = local-1706225246376).
SparkSession available as 'spark'.
>>> quit()
기본 설정
cd /media/spark-3.3.4/conf
cp spark-defaults.conf.template spark-defaults.conf
cp spark-env.sh.template spark-env.sh
cp log4j2.properties.template log4j2.properties
vi log4j2.properties
#추가
log4j.rootCategory=WARN, console
예제 실행 1
lines =sc.textFile("README.md")
lines.count()
lines.first()
pythonLines = lines.filter(lambda line : "Python" in line)
pythonLines.first()
root@eoks01:/media/spark-3.3.4# pyspark
Python 3.6.8 (default, Nov 8 2023, 18:52:33)
[GCC 4.8.5 20150623 (Red Hat 4.8.5-44.0.3)] on linux
Type "help", "copyright", "credits" or "license" for more information.
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
24/01/26 08:34:43 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Welcome to
____ __
/ __/__ ___ _____/ /__
_\ \/ _ \/ _ `/ __/ '_/
/__ / .__/\_,_/_/ /_/\_\ version 3.3.4
/_/
Using Python version 3.6.8 (default, Nov 8 2023 18:52:33)
Spark context Web UI available at http://eoks01:4040
Spark context available as 'sc' (master = local[*], app id = local-1706225686096).
SparkSession available as 'spark'.
>>> lines =sc.textFile("README.md")
>>> lines.count()
124
>>> lines.first()
'# Apache Spark'
>>> pythonLines = lines.filter(lambda line : "Python" in line)
>>> pythonLines.first()
'high-level APIs in Scala, Java, Python, and R, and an optimized engine that'
>>> quit()
예제 실행 2
vi test.py
from pyspark import SparkConf, SparkContext
conf = SparkConf().setMaster("local").setAppName("test")
sc = SparkContext(conf=conf)
lines =sc.textFile("/media/spark-3.3.4/README.md")
print("lines.count() :", lines.count() )
print("lines.first() :", lines.first() )
pythonLines = lines.filter(lambda line : "Python" in line)
print("pythonLines.first() :", pythonLines.first())
+ Java 환경변수 설정
readlink -f /usr/bin/java
/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.262.b10-1.el7.x86_64/bin/javac
-> $JAVA_HOME=/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.262.b10-1.el7.x86_64
# JAVA
export JAVA_HOME=/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.262.b10-1.el7.x86_64
export PATH=$JAVA_HOME/bin:$PATH
export CLASSPATH=$CLASSPATH:$JAVA_HOME/lib
-- JDBC Connector 다운
https://dev.mysql.com/downloads/connector/j/
> Platform Independent
> mysql-connector-j-8.3.0.tar.gz 다운로드 > 필요 디렉토리에 넣어둠
cd /media/sf_01.oracle/8.mysql
tar -xvf mysql-connector-j-8.3.0.tar.gz
cd mysql-connector-j-8.3.0
cp -ap mysql-connector-j-8.3.0.jar $JAVA_HOME/lib
cp -ap mysql-connector-j-8.3.0.jar $SPARK_HOME/jars
root@eoks01:/usr/lib/mysql-connector-j-8.3.0# javap com.mysql.jdbc.Driver
Compiled from "Driver.java"
public class com.mysql.jdbc.Driver extends com.mysql.cj.jdbc.Driver {
public com.mysql.jdbc.Driver() throws java.sql.SQLException;
static {};
}
root@eoks01:/var/lib/mysql# service mysqld start
Redirecting to /bin/systemctl start mysqld.service
root@eoks01:/var/lib/mysql# service mysqld status
Redirecting to /bin/systemctl status mysqld.service
● mysqld.service - MySQL Server
Loaded: loaded (/usr/lib/systemd/system/mysqld.service; enabled; vendor preset: disabled)
Active: active (running) since Mon 2024-02-05 06:56:12 KST; 3s ago
Docs: man:mysqld(8)
http://dev.mysql.com/doc/refman/en/using-systemd.html
Process: 17842 ExecStartPre=/usr/bin/mysqld_pre_systemd (code=exited, status=0/SUCCESS)
Main PID: 17892 (mysqld)
Status: "Server is operational"
Tasks: 38
Memory: 395.5M
CGroup: /system.slice/mysqld.service
└─17892 /usr/sbin/mysqld
Feb 05 06:56:09 eoks01.localdomain systemd[1]: Starting MySQL Server...
Feb 05 06:56:12 eoks01.localdomain systemd[1]: Started MySQL Server.
4. mysql - Spark Connect
사용 예제 참조
https://jyoondev.tistory.com/95
스파크 튜토리얼 - (7) 스파크 SQL
Spark SQL 스파크는 여러 방면에서 SQL을 사용할 수 있도록 지원합니다. 이전 포스팅들에서는 csv나 json파일을 통해 DataFrame을 만드는 방법을 잠깐 설명했습니다. 이 DataFrame 기능이 곧 Spark SQL에 포함
jyoondev.tistory.com
pyspark
import pyspark
from pyspark.sql import SparkSession
spark = SparkSession \
.builder.config("spark.jars", "/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.262.b10-1.el7.x86_64/mysql-connector-j-8.3.0.jar")\
.master("local") \
.appName("spark-mysql") \
.getOrCreate()
jdbc = spark.read.format("jdbc")\
.option("url", "jdbc:mysql://localhost/mysql")\
.option("driver", "com.mysql.cj.jdbc.Driver")\
.option("user", "spark")\
.option("password", "welcome1")\
.option("dbtable", "orders")\
.load()
jdbc.show()
-> Mysql 에 있는 orders Table의 Data(Spark dataframe에 담긴)가 출력됨.
5. Mysql to Oracle
Oracle에 Table Meta 생성
-> 지금은 1건이구 타입도 간단해서 ㄱㅊ은데 .. 많아지면 어떻게 뽑아낼건지 ? ? ?
create table rpmmgr.orders (
ORDERID number NOT NULL,
CustomerID number NOT NULL,
EmployeeID number NOT NULL,
OrderDate DATE NOT NULL,
ShipperID number NOT NULL,
PRIMARY KEY (ORDERID)
);
Spark Connect Oracle
spark = SparkSession \
.builder \
.appName("spark-oracle") \
.config("spark.jars", "ojdbc8.jar") \
.getOrCreate()
jdbcDF = spark.read \
.format("jdbc") \
.option("url", "jdbc:oracle:thin:@192.168.56.121:1521/OREMDB") \
.option("dbtable", "ORDERS") \
.option("user", "USERID") \
.option("password", "PASSWORD") \
.load()
jdbcDF.show()
+-------+----------+----------+---------+---------+
|ORDERID|CUSTOMERID|EMPLOYEEID|ORDERDATE|SHIPPERID|
+-------+----------+----------+---------+---------+
+-------+----------+----------+---------+---------+
Spark df (mysql data) to Oracle (jdbcDF)
jdbc = jdbc.write.format("jdbc").options(
url="jdbc:oracle:thin:@192.168.56.121:1521/OREMDB",
driver = "oracle.jdbc.driver.OracleDriver",
dbtable = "ORDERS",
user="USERID",
password="PASSWORD").mode('append').save()
ORACLE DataFrame 확인
>>> jdbcDF.show()
+----------------+-------------+------------+-------------------+------------+
| ORDERID| CUSTOMERID| EMPLOYEEID| ORDERDATE| SHIPPERID|
+----------------+-------------+------------+-------------------+------------+
|10248.0000000000|90.0000000000|5.0000000000|1996-07-04 00:00:00|3.0000000000|
|10249.0000000000|81.0000000000|6.0000000000|1996-07-05 00:00:00|1.0000000000|
|10250.0000000000|34.0000000000|4.0000000000|1996-07-08 00:00:00|2.0000000000|
|10251.0000000000|84.0000000000|3.0000000000|1996-07-08 00:00:00|1.0000000000|
|10252.0000000000|76.0000000000|4.0000000000|1996-07-09 00:00:00|2.0000000000|
|10253.0000000000|34.0000000000|3.0000000000|1996-07-10 00:00:00|2.0000000000|
|10254.0000000000|14.0000000000|5.0000000000|1996-07-11 00:00:00|2.0000000000|
|10255.0000000000|68.0000000000|9.0000000000|1996-07-12 00:00:00|3.0000000000|
|10256.0000000000|88.0000000000|3.0000000000|1996-07-15 00:00:00|2.0000000000|
|10257.0000000000|35.0000000000|4.0000000000|1996-07-16 00:00:00|3.0000000000|
|10258.0000000000|20.0000000000|1.0000000000|1996-07-17 00:00:00|1.0000000000|
|10259.0000000000|13.0000000000|4.0000000000|1996-07-18 00:00:00|3.0000000000|
|10260.0000000000|55.0000000000|4.0000000000|1996-07-19 00:00:00|1.0000000000|
|10261.0000000000|61.0000000000|4.0000000000|1996-07-19 00:00:00|2.0000000000|
|10262.0000000000|65.0000000000|8.0000000000|1996-07-22 00:00:00|3.0000000000|
|10263.0000000000|20.0000000000|9.0000000000|1996-07-23 00:00:00|3.0000000000|
|10264.0000000000|24.0000000000|6.0000000000|1996-07-24 00:00:00|3.0000000000|
|10265.0000000000| 7.0000000000|2.0000000000|1996-07-25 00:00:00|1.0000000000|
|10266.0000000000|87.0000000000|3.0000000000|1996-07-26 00:00:00|3.0000000000|
|10267.0000000000|25.0000000000|4.0000000000|1996-07-29 00:00:00|1.0000000000|
+----------------+-------------+------------+-------------------+------------+
only showing top 20 rows

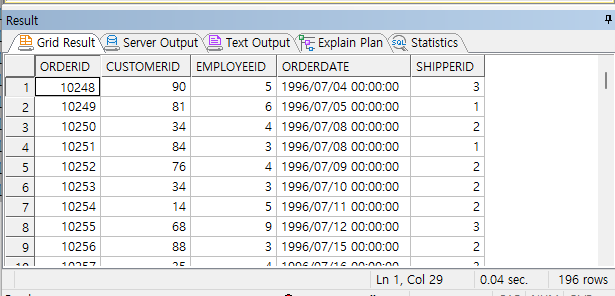

Oracle에서 확인
select * from orders;
ORDERID CUSTOMERID EMPLOYEEID ORDERDATE SHIPPERID
---------- ---------- ---------- --------- ----------
10248 90 5 04-JUL-96 3
10249 81 6 05-JUL-96 1
10250 34 4 08-JUL-96 2
10251 84 3 08-JUL-96 1
10252 76 4 09-JUL-96 2
10253 34 3 10-JUL-96 2
10254 14 5 11-JUL-96 2
10255 68 9 12-JUL-96 3
10256 88 3 15-JUL-96 2
10257 35 4 16-JUL-96 3
10258 20 1 17-JUL-96 1
10259 13 4 18-JUL-96 3
10260 55 4 19-JUL-96 1
10261 61 4 19-JUL-96 2
10262 65 8 22-JUL-96 3
10263 20 9 23-JUL-96 3
10264 24 6 24-JUL-96 3
10265 7 2 25-JUL-96 1
10266 87 3 26-JUL-96 3
10267 25 4 29-JUL-96 1
...
196건 data import 확인
'ETC > 도전' 카테고리의 다른 글
| Linux 64bit | Oracle database 19c Gateway for DRDA 설치 (DB2<-> ORACLE DBLINK 연결) (0) | 2025.03.20 |
|---|---|
| [DB2] 설치 (0) | 2025.03.20 |
| [ORACLE] CRS-6705 | 업그레이드 시 grid Software 버전이 active 버전과 다른 오류 (0) | 2023.03.24 |
| 아크로니스 Cyber Protect Home Office 사용기 2 (복구.. 실패 .. ^^) (0) | 2023.02.28 |
| 아크로니스 Cyber Protect Home Office 사용기 (0) | 2022.11.30 |
